96322027

Filter

2500-2540/2620-2660MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products

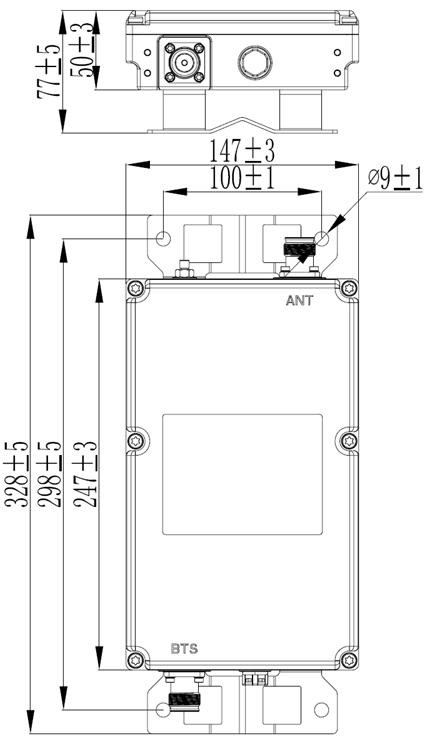

Specifications Outline Drawing

Product Classification

Product TypeFilter


General Specifications

Color

Light Gray(Customizable)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

4.3-10 Female

N Female

7-16 DIN Female


Electrical Specifications

Frequency Range, Mhz

2500-2540&2620-2660
Insertion Loss, typical, dB

≤1.5

Rejection (dB)

≥30dB@2545-2615MHz
Return Loss (dB)

≤-20.5
Input Power, RMS, maximum, W

≤150
3rd Order PIM, typical, dBc

≤-160


Dimensions

Dimensions,HxWxD(excluding connectors and mounting bracket)(mm)

247x147x50


Environmental Specifications

Operational Temperature

-40 to +65°C
Operational Humidity

≤95%
Ingress Protection Class

IP65(Indoor and Outdoor)
