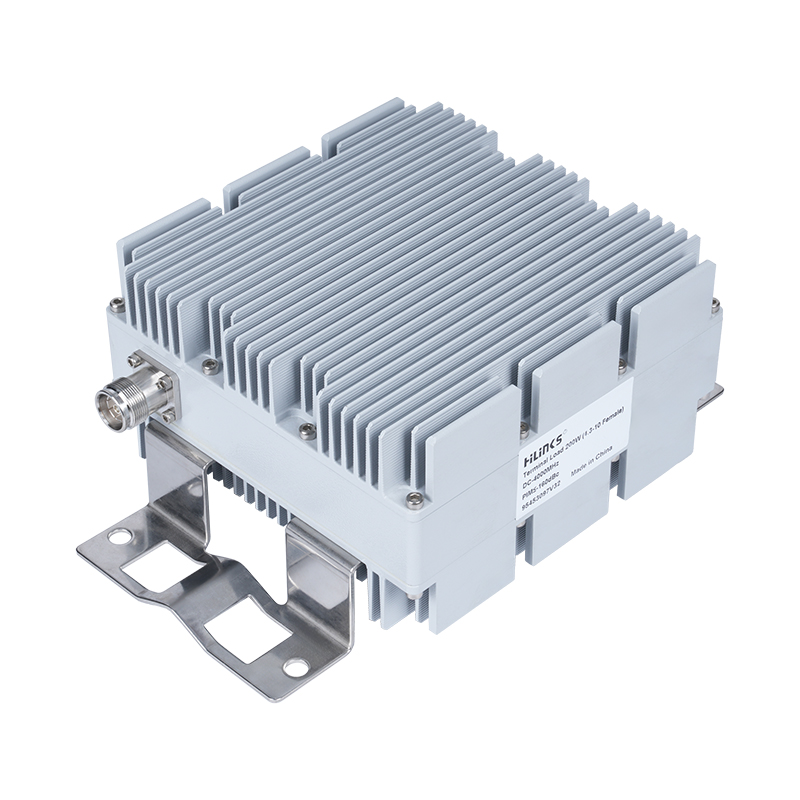

100W PIM160 Equipment (DIN, 4.3-10)Terminal Load 95450XX7V32
|
Electrical Specifications |
||
|
Type No. |
N Female |
95450077V32 |
|
N Male |
95450087V32 |
|
|
4.3-10 Female |
95450097V32 |
|
|
4.3-10 Male |
95450107V32 |
|
|
7-16 Female |
95450117V32 |
|
|
7-16 Male |
95450127V32 |
|
|
Input Power (W) |
100 |
|
|
Frequency Range (MHz) |
DC-4000 |
|
|
Return Loss (dB) |
≥19 |
|
|
Intermodulation (3rd order, dBc) |
≤-160@2x43dBm |
|
|
Impedance (Ω) |
50 |
|
|
Mechanical Specifications |
||
|

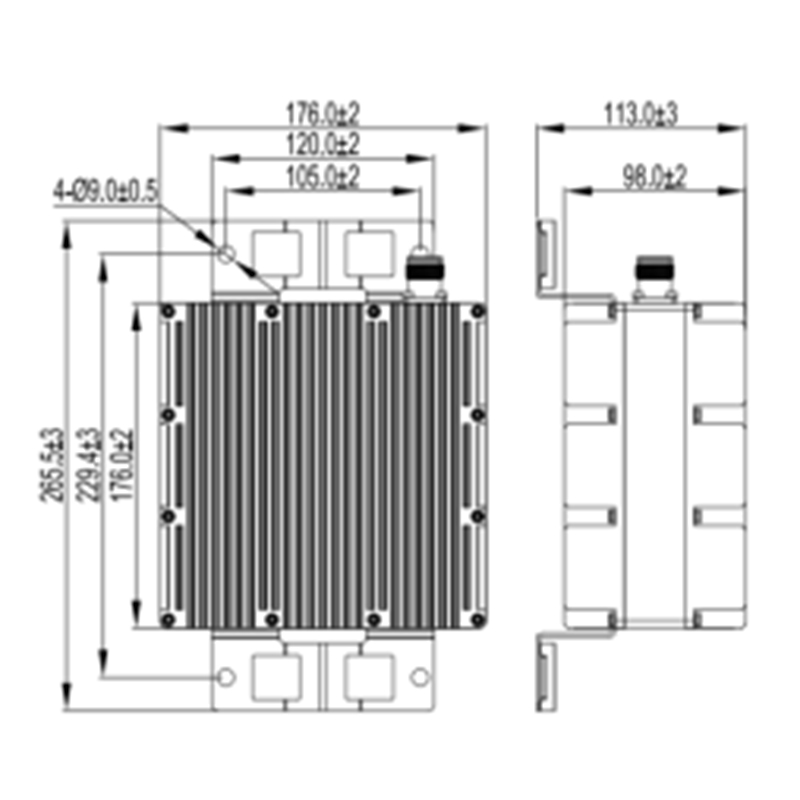

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
176x145x67 |
|
|
Weight (including connectors and mounting bracket) (kg) |
N Female/ Male |
2.3 |
|
4.3-10 Female/ Male |
2.3 |
|
|
7-16 Female/ Male |
2.4 |
|
|
Packing Size(mm) |
280x215x145 |
|
|
Color |
Light Gray (Customized) |
|
|
Mounting |
Wall mounting |
|
Main Functions
Signal Absorption: Terminates unused RF ports by absorbing energy across DC-4000MHz, preventing damaging signal reflections that degrade system performance.
Impedance Stabilization: Maintains precise 50Ω impedance with high return loss (≥19dB), ensuring consistent transmission line matching for antennas/test equipment.
Measurement Integrity: Serves as a calibration reference for network analyzers and VSWR testing, delivering ultra-low PIM for accurate results.
Typical Application Scenarios
Cellular Infrastructure: Secures open ports in base station combiners/filters during maintenance or reconfiguration, preventing interference in live 5G/LTE networks.
RF Test Benches: Provides reliable termination for lab/field equipment (e.g., spectrum analyzers), ensuring measurement accuracy up to 4GHz.
Outdoor Radio Systems: Deploys in harsh environments (IP65-rated) for public safety or broadcast systems, withstanding -40°C to +65°C temperatures.
Technical Features
High-Power Resilience: Handles 100W continuous power with exceptional PIM suppression (≤-160dBc @ 2×43dBm), critical for high-density RF systems.
Connector Versatility: Six variants for seamless integration:
N (Male/Female: 95450087V32/95450077V32)
4,3-10 (Male/Female: 95450107V32/95450097V32)
7-16 (Male/Female: 95450127V32/95450117V32)
Rugged Compact Design: Features IP65 environmental sealing, unified dimensions (176×145×67mm), and 2.4kg weight. Wall-mount ready for space-efficient deployment.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
