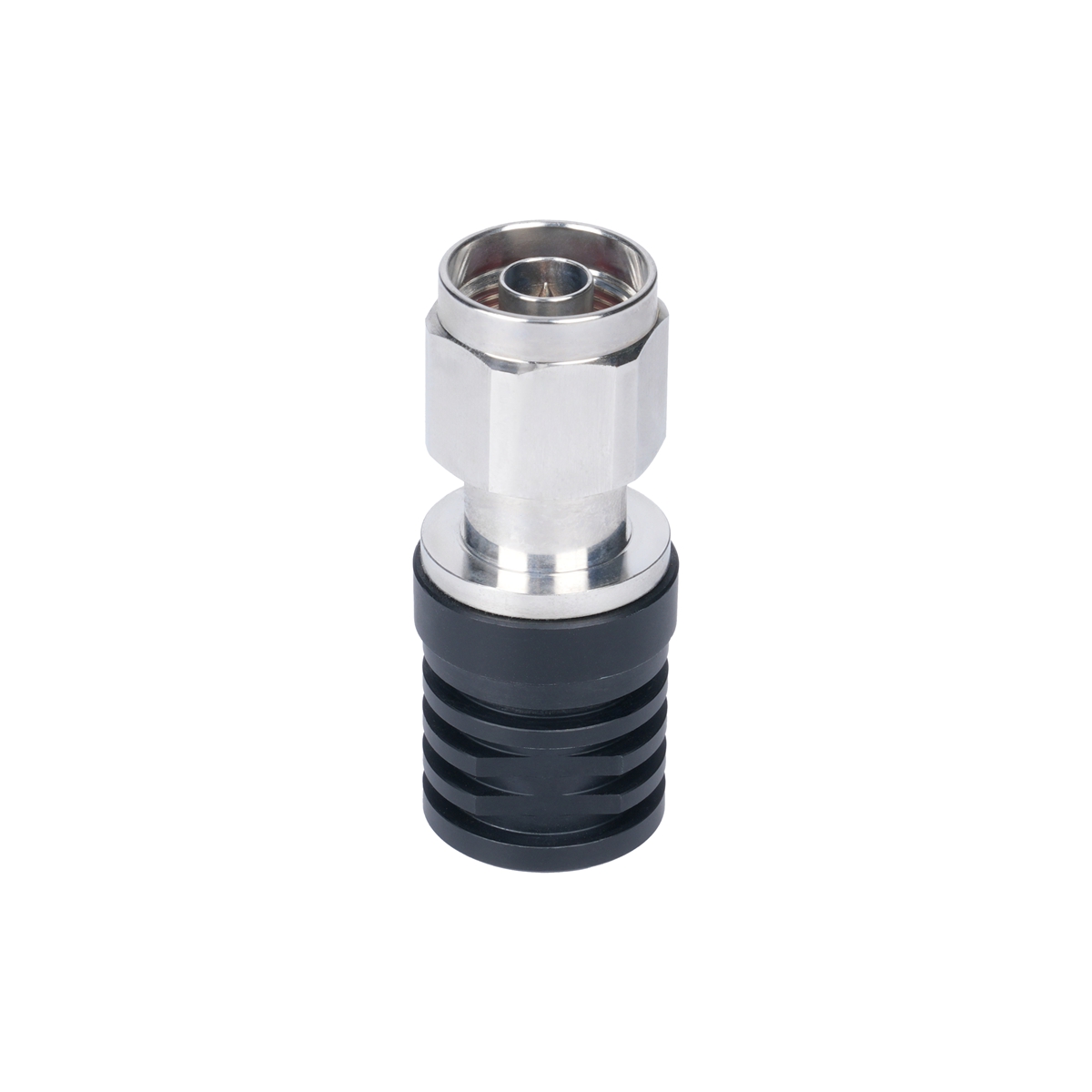

Terminal Load

2-5W Power Modules: DC-6000 Series 9543XXX0

Frequency Range DC-6000 MHz
Low VSWR, Low PIM< -105dBc
High reliability
Suitable for indoor and outdoor applications
Wall mounting

Technical Data

Description

Environmental Specifications

Electrical Specifications
Product No.	N Female	95433570	95437570
	N Male	95433580	95437580
	4.3-10 Female	95433590	95437590
	4.3-10 Male	95433600	95437600
	7-16 Female	95433610	95437610
	7-16 Male	95433620	95437620
Input Power (W)		2	5
Frequency Range (MHz)		DC-6000
Return Loss (dB)		DC-3000MHz≧21dB, 3000-3800MHz≧19dB,3800-6000MHz≧17dB
PIM3 (dBc)		≤-105,2W/5W (@2x33 dBm Carrier)
Impedance (Ω)		50

Mechanical Specifications

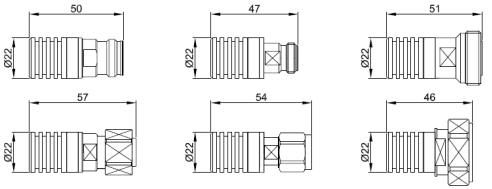

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm)	N Female/Male	￠22x47/￠22x54
	4.3-10 Female/ Male	￠22x57/￠22x50
	7-16 Female/ Male	￠22x46/￠22x51
Weight (including connectors and mounting bracket) (kg)	N Female/Male	0.2
	4.3-10 Female/ Male	0.2
	7-16 Female/ Male	0.25
Packing Size(mm)		70x30x30 (100Pcs/box)
Color		Black (customized)
Mounting		Wall Mounted

Main Functions

RF Signal Termination: Provides a precise 50-ohm termination for RF transmission lines across an ultra-wide DC to 6000 MHz frequency spectrum, effectively absorbing transmitted energy and minimizing signal reflections.

Low-Power Dissipation: Safely absorbs and dissipates either 2W or 5W (depending on specific model) of continuous RF power generated by transmitters, test equipment, or system components during operation, testing, or tuning.

Reflection Prevention: Ensures system integrity by presenting a matched load, protecting sensitive equipment from damage caused by reflected power and enabling accurate RF measurements.

Typical Application Scenarios

Lab & Test Equipment Integration: Used as a termination for RF ports on signal generators, spectrum analyzers, vector network analyzers (VNAs), and other lab instruments requiring precise 50-ohm loads up to 6GHz.

Small Cell & Distributed Systems: Terminates unused ports on couplers, splitters, and antennas within compact DAS, small cell, and picocell/femtocell deployments, especially where space is constrained.

Wireless Device Testing & R&D: Provides reliable termination during the development, validation, and production testing of low-to-moderate power RF devices operating in bands up to 6GHz, including WiFi 6E and 5G FR1.

Technical Features

Ultra-Wide Frequency Coverage: Operates effectively from DC (0 Hz) up to 6000 MHz, covering critical bands for modern wireless communication (LTE, 5G NR FR1, WiFi 5/6/6E, IoT).

Optimized RF Performance: Features low VSWR with frequency-dependent Return Loss (≥21dB DC-3GHz, ≥19dB 3-3.8GHz, ≥17dB 3.8-6GHz) and very low Passive Intermodulation (PIM3 ≤ -105 dBc @ 2x33dBm carriers) for accurate signal handling.

Compact & Robust Design: Highly space-efficient cylindrical form factor (diameter ~22mm, length varies 46-57mm by connector type). Offers IP65 environmental protection for reliable indoor/outdoor use, wall-mounting capability, and wide operational temperature range (-40°C to +65°C). Available in N, 4.3-10, and 7-16 connector variants (male/female), with distinct part numbers for 2W and 5W models.
