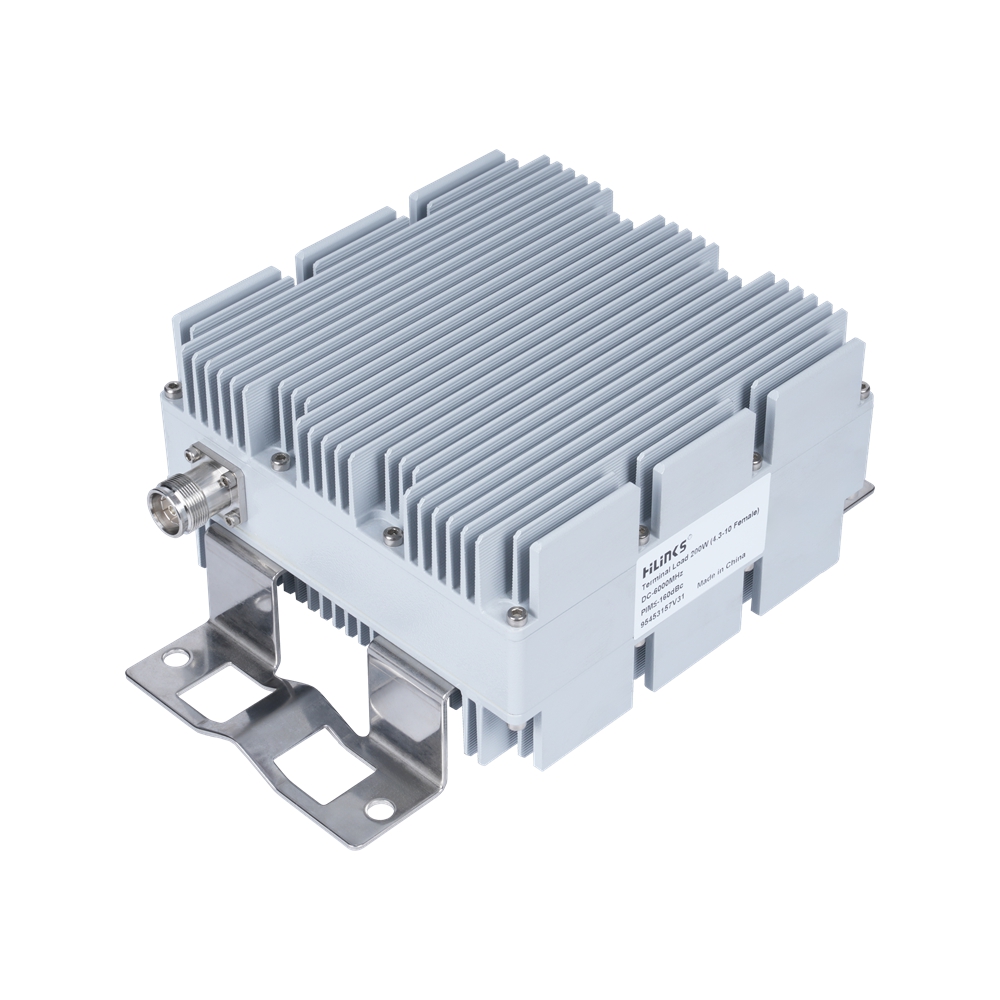

200W Unit (PIM150-160, 4.3-10) 954531XXV31
|
Electrical Specifications |
||||
|
Type No. |
N Female |
95453133V31 |
95453135V31 |
95453137V31 |
|
N Male |
95453143V31 |
95453145V31 |
95453147V31 |
|
|
4.3-10 Female |
95453153V31 |
95453155V31 |
95453157V31 |
|
|
4.3-10 Male |
95453163V31 |
95453165V31 |
95453167V31 |
|
|
7-16 Female |
95453173V31 |
95453175V31 |
95453177V31 |
|
|
7-16 Male |
95453183V31 |
95453185V31 |
95453187V31 |
|
|
Input Power (W) |
200 |
|||
|
Frequency Range (MHz) |
DC-6000 |
|||
|
Return Loss (dB) |
≤-19@DC-3800, ≤-18@3800-6000 |
|||
|
Intermodulation (3rd order, dBc) |
≤-150@2x43dBm |
≤-155@2x43dBm |
≤-160@2x43dBm |
|
|
Impedance (Ω) |
50 |
|||
|
Mechanical Specifications |
|
|
Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
176x176x98 |
|
Weight (including connectors and mounting bracket) (kg) |
4.4 |
|
Packing Size(mm) |
335x245x185 |
|
Color |
Light Gray (Customized) |
|
Mounting |
Wall or pole mounting |
Main Functions
High-Power Signal Absorption:Terminates RF signals up to 200W across DC-6000MHz, preventing reflections in transmission systems.
Precision Impedance Matching: Maintains stable 50Ω impedance with optimized return loss (≤19dB@DC-3800MHz, ≤18dB@3800-6000MHz).
Interference-Free Operation: Delivers ultra-low PIM (≤-160dBc @2x43dBm) for critical test environments.
Typical Application Scenarios
5G Macro Cell Towers: Terminates high-power antenna ports (≤200W) in mmWave (3800-6000MHz) and sub-6GHz deployments.
Broadcast Transmitter Sites: Absorbs residual power in FM/TV transmission lines requiring ≤-160dBc PIM stability.
Military/Aerospace RF Systems: Supports rugged outdoor installations (IP65, -40°C to +65°C) for radar/communication systems.
Technical Features
Tiered PIM Performance:
Industrial-Grade Design:
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
