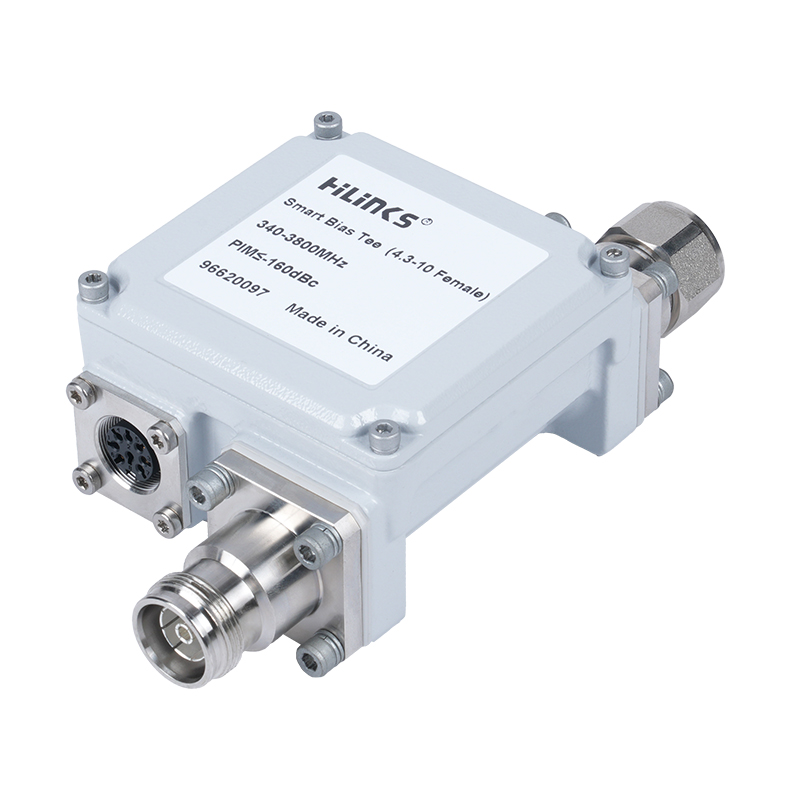

340-3800MHz Modules (IL0.3, IS60) Smart Bias Tee 96620XXX
|
Electrical Specifications |
||||||
|
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
96620093 |
96620103 |
96620113 |
96620123 |
|
≤-155 |
96620095 |
96620105 |
96620115 |
96620125 |
||
|
≤-160 |
96620097 |
96620107 |
96620117 |
96620127 |
||
|
Application |
Antenna-Feeder |
BTS-Feeder |
Antenna-Feeder |
BTS-Feeder |
||
|
Port1 |
4.3-10 male |
4.3-10 male |
4.3-10 female |
4.3-10 female |
||
|
Port2 |
4.3-10 female |
4.3-10 female |
4.3-10 male |
4.3-10 male |
||
|
Port DC/AISG |
female |
male |
female |
male |
||
|
Frequency Range (MHz) |
340-3800 |
|||||
|
Insertion Loss (dB) |
Port1 – Port2 |
≤0.3 |
||||
|
DC isolation (dB) |
Port1 – Port2 Port1 – Port DC/AISG Port2 – Port DC/AISG |
>60 >60 0 |
||||
|
VSWR |
≤1.25 |
|||||
|
Power consumption(W) |
0.6 typical |
|||||
|
Power handling (w) |
Port1 or Port2 Port DC/AISG |
≤500W AVG, 1500W Peak ≤2.5A / +10~+30VDC |
||||
|
Modem communication |
3GPP TS 25.461 |
|||||
|
Impedance (Ω) |
50 |
|||||
|

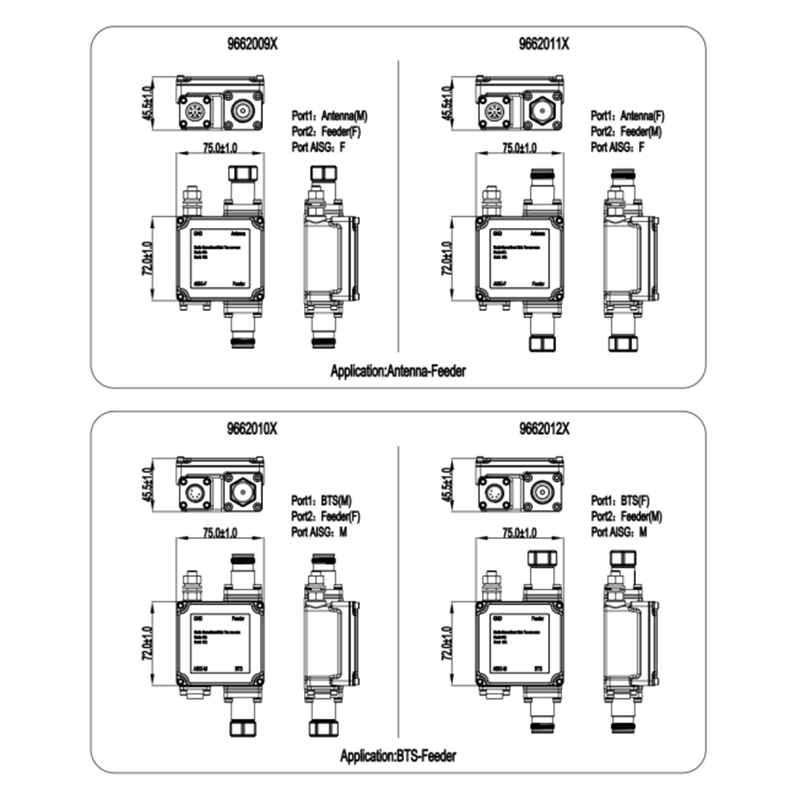

Mechanical Specifications |
||
|
Dimensions (excluding connectors and mounting bracket) (mm) |
75x72x45.5 |
|
|
Weight (including connectors and mounting bracket) (kg) |
0.63 |
|
|
Packing Size(mm) |
266x126x96 (18Pcs/box) |
|
|
Color |
Light Gray (customized) |
|
|
Connector |
Port 1 Port 2 DC/AISG |
4.3-10 (F or M) 4.3-10 (F or M) RS485 (F or M,8-pin) |
Main Functions
1.Facilitates antenna-feeder signal transfer.
2.Enables AISG (F/M) interface communication.
3.Supports stable power distribution in RF systems.
Typical Application Scenarios
1.Antenna-feeder network deployments.
2.BTS (Base Transceiver Station) setups.
3.Wireless communication infrastructure.
Technical Features
1.Operates in 340-3800MHz frequency range.
2.Low insertion loss (IL0.3) and high isolation (IS60).
3.Equipped with 4.3-10 connectors for versatility.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
8kA; 8/20 Us pulse |
