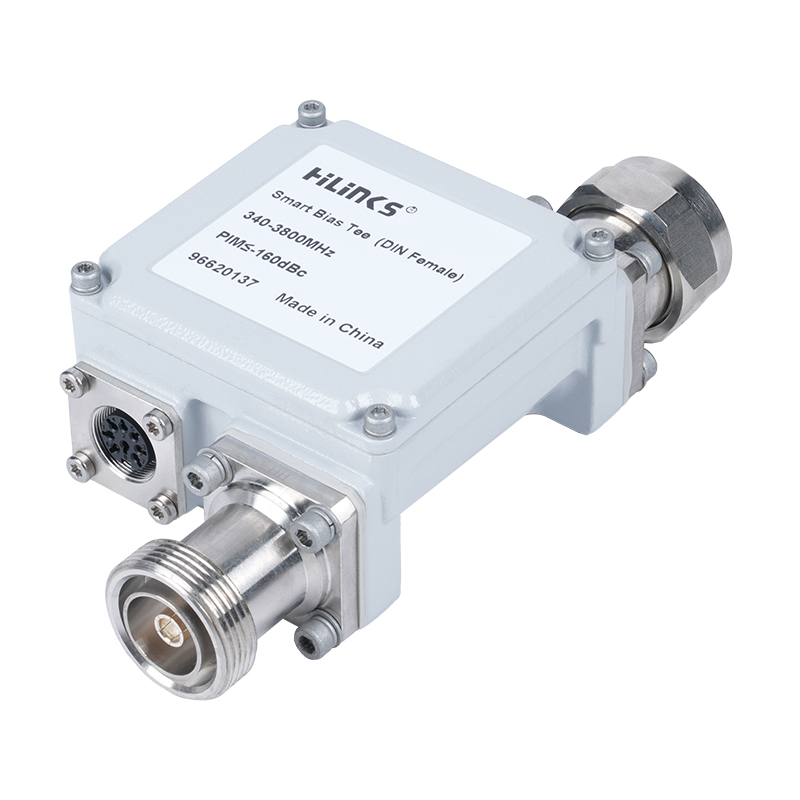

340-3800MHz Smart Bias Tee 966201XX
|
Electrical Specifications |
||||||
|
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
96620133 |
96620143 |
96620153 |
96620163 |
|
≤-155 |
96620135 |
96620145 |
96620155 |
96620165 |
||
|
≤-160 |
96620137 |
96620147 |
96620157 |
96620167 |
||
|
Application |
Antenna-Feeder |
BTS-Feeder |
Antenna-Feeder |
BTS-Feeder |
||
|
Port1 |
7-16 male |
7-16 male |
7-16 female |
7-16 female |
||
|
Port2 |
7-16 female |
7-16 female |
7-16 male |
7-16 male |
||
|
Port DC/AISG |
female |
male |
female |
male |
||
|
Frequency Range (MHz) |
340-3800 |
|||||
|
Insertion Loss (dB) |
Port1 – Port2 |
≤0.3 |
||||
|
DC isolation (dB) |
Port1 – Port2 Port1 – Port DC/AISG Port2 – Port DC/AISG |
>60 >60 0 |
||||
|
VSWR |
≤1.25 |
|||||
|
Power consumption(W) |
0.6 typical |
|||||
|
Power handling (w) |
Port1 or Port2 Port DC/AISG |
≤500W AVG, 2000W Peak ≤2.5A / +10~+30VDC |
||||
|
Modem communication |
3GPP TS 25.461 |
|||||
|
Impedance (Ω) |
50 |
|||||
|

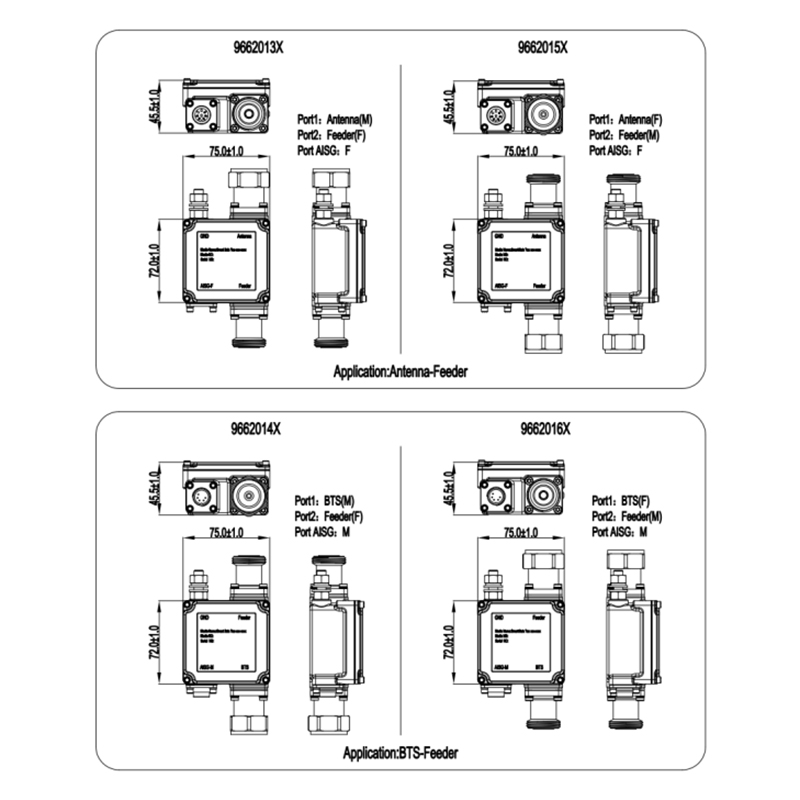

Mechanical Specifications |
||
|
Dimensions (excluding connectors and mounting bracket) (mm) |
75x72x45.5 |
|
|
Weight (including connectors and mounting bracket) (kg) |
0.65 |
|
|
Packing Size(mm) |
266x126x96 (18Pcs/box) |
|
|
Color |
Light Gray (customized) |
|
|
Connector |
Port 1 Port 2 DC/AISG |
7-16 (F or M) 7-16 (F or M) RS485 (F or M,8-pin) |
Main Functions
1.Transmits signals between antenna and feeder.
2.Manages AISG (F/M) interface communications.
3.Maintains stable 75.0±1.0 signal parameters.
Typical Application Scenarios
1.Antenna-feeder network installations.
2.BTS (Base Transceiver Station) connections.
3.RF communication infrastructure setups.
Technical Features
1.Operates in 340-3800MHz frequency range.
2.Low insertion loss (IL0.3) and high isolation (IS60).
3.DIN-standard design for easy integration.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
8kA; 8/20 μs pulse |
