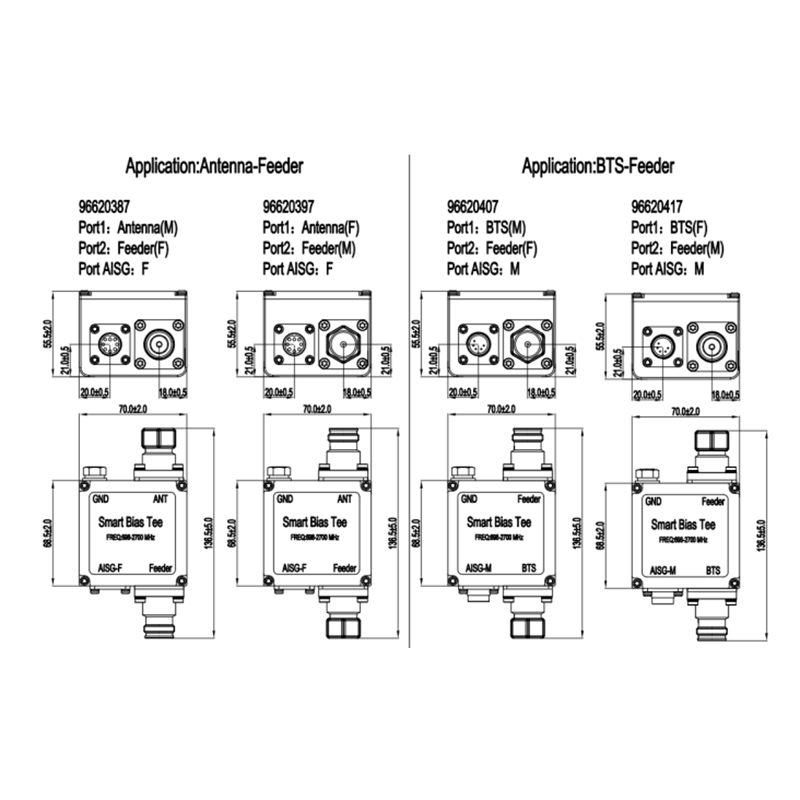

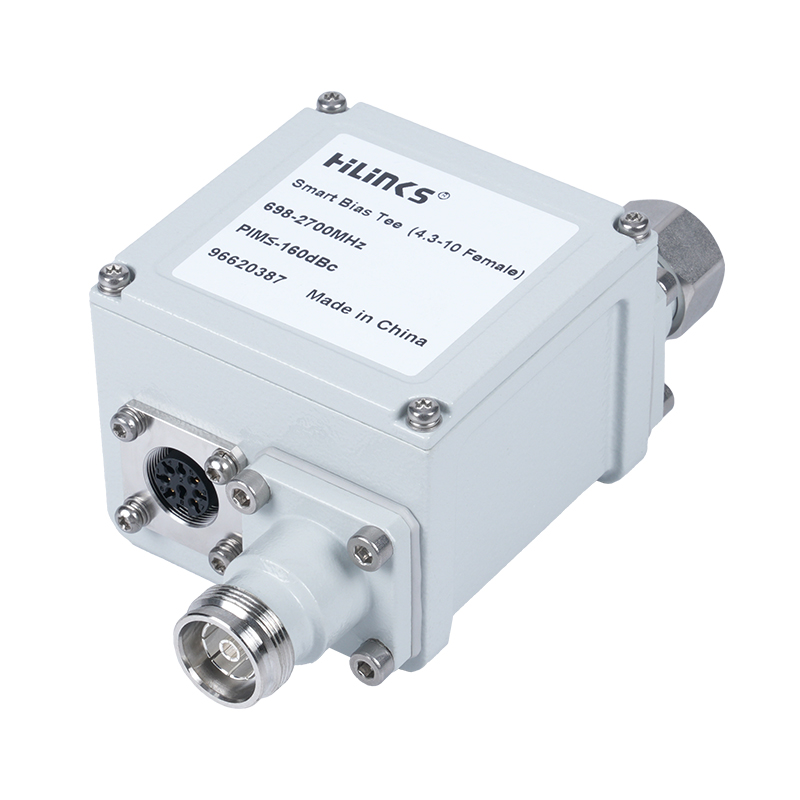

4.3-10 Female Smart Bias Tees (IL0.3) 96620XX7
|
Electrical Specifications |
|||||
|
Type No. |
96620387 |
96620397 |
96620407 |
96620417 |
|
|
Application |
Antenna-Feeder |
BTS-Feeder |
|||
|
Port1 |
4.3-10 Male |
4.3-10 Female |
4.3-10 Male |
4.3-10 Female |
|
|
Port2 |
4.3-10 Female |
4.3-10 Male |
4.3-10 Female |
4.3-10 Male |
|
|
Port DC/AISG |
Female |
Female |
Male |
Male |
|
|
Frequency Range (MHz) |
698-2700 |
||||
|
Insertion Loss (dB) |
Port1 – Port2 |
≤0.3 |
|||
|
DC isolation (dB) |
Port1 – Port2 Port1 – Port DC/AISG Port2 – Port DC/AISG |
>60 >60 / |
|||
|
VSWR |
≤1.25 |
||||
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
||||
|
Power consumption(W) |
0.6 typical |
||||
|
Power handling (w) |
Port1 or Port2 Port DC/AISG |
≤200W AVG, 2000W Peak ≤2.5A / +10~+30VDC |
|||
|
Modem communication |
3GPP TS 25.461 |
||||
|
Impedance (Ω) |
50 |
||||
|
Mechanical Specifications |
||
|
Dimensions (excluding connectors and mounting bracket) (mm) |
70x68.5x55.5 |
|
|
Weight (including connectors and mounting bracket) (kg) |
0.7 |
|
|
Packing Size (mm) |
200x120x90 |
|
|
Color |
Light Gray (customized) |
|
|
Connector |
Port 1 Port 2 DC/AISG |
4.3-10 (F or M) 4.3-10 (F or M) RS485 (F or M,8-pin) |
Main Functions
1.Enables signal transfer between BTS and feeder.
2.Supports AISG (F/M) interface data exchange.
3.Delivers stable bias voltage for RF components.
Typical Application Scenarios
1.Wireless communication BTS installations.
2.Antenna-feeder network connections.
3.RF system bias voltage supply setups.
Technical Features
1.Operates in 698-2700MHz frequency band.
2.Equipped with 4.3-10 female connectors.
3.Low insertion loss (IL0.3) and high isolation (IS60).
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
3kA; 10/350 μs pulse |
