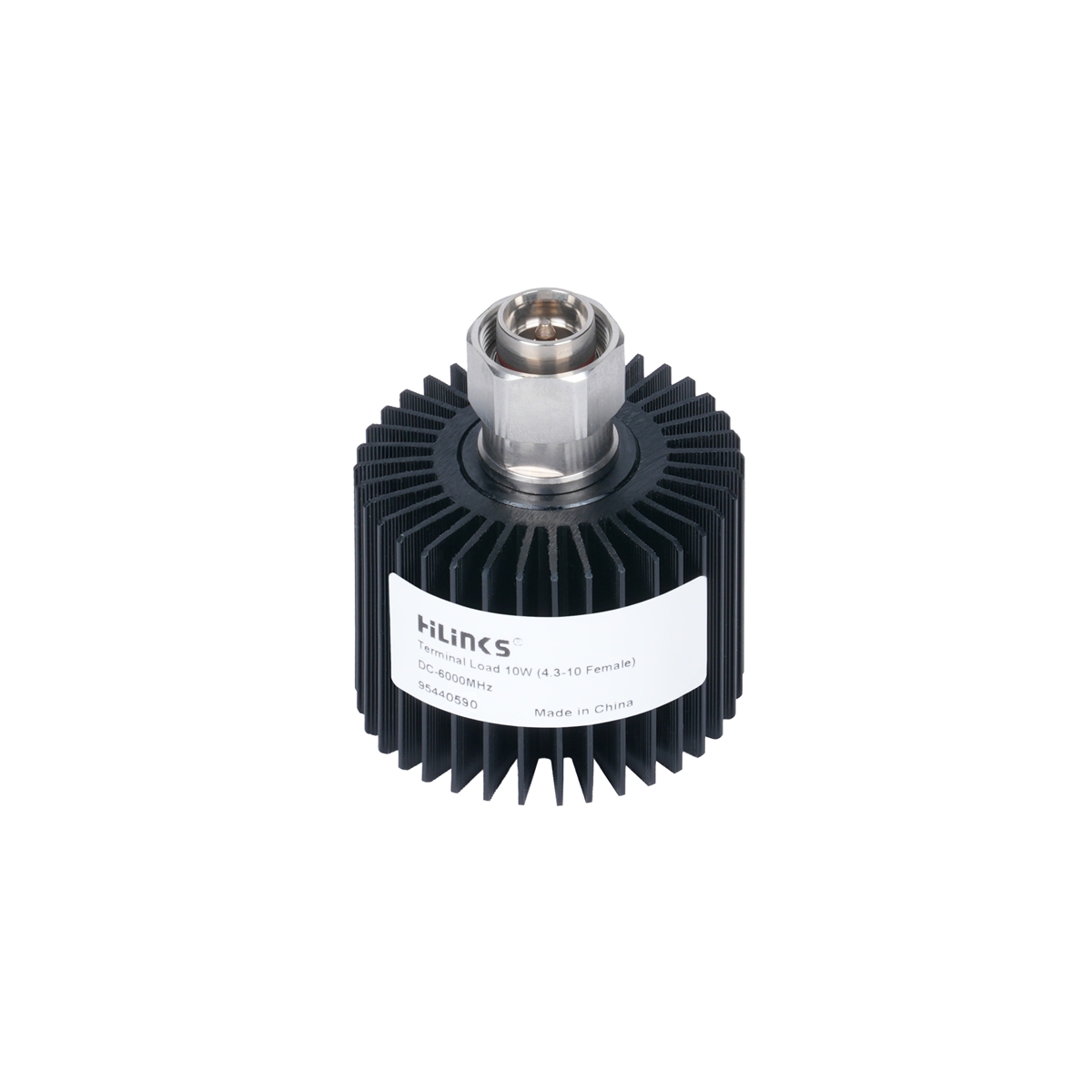

4.3-10V 10-25W Power Solutions 9544XXX0
|
Electrical Specifications |
|||
|
Product No. |
N Female |
95440570 |
95444570 |
|
N Male |
95440580 |
95444580 |
|
|
4.3-10 Female |
95440590 |
95444590 |
|
|
4.3-10 Male |
95440600 |
95444600 |
|
|
7-16 Female |
95440610 |
95444610 |
|
|
7-16 Male |
95440620 |
95444620 |
|
|
Input Power (W) |
10 |
25 |
|
|
Frequency Range (MHz) |
DC-6000 |
||
|
Return Loss (dB) |
DC-3000MHz≧21dB, 3000-3800MHz≧19dB,3800-6000MHz≧17dB |
||
|
PIM3 (dBc) |
≤-105, 10W/25W (@2x33 dBm Carrier) |
||
|
Impedance (Ω) |
50 |
||
|
Mechanical Specifications |
||
|
Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
N Female/Male |
￠60x46.5 |
|
4.3-10 Female/ Male |
￠60x46.5 |
|
|
7-16 Female/ Male |
￠60x46.5 |
|
|
Weight (including connectors and mounting bracket) (kg) |
N Female/Male |
0.3 |
|
4.3-10 Female/ Male |
0.3 |
|
|
7-16 Female/ Male |
0.35 |
|
|
Packing Size(mm) |
160x70x70 (50Pcs/box) |
|
|
Color |
Black (customized) |
|
|
Mounting |
Wall Mounted |
|
Main Functions
• Precision RF Termination: Provides a stable 50-ohm impedance across DC-6000MHz to absorb transmitted signals and prevent reflections in communication systems.
• Power Dissipation: Safely handles 10W or 25W (model-dependent) of continuous RF power during testing or operation, protecting sensitive equipment.
• Signal Integrity Maintenance: Ensures accurate system measurements by minimizing VSWR and suppressing reflected energy in transmission lines.
Typical Application Scenarios
• Telecom Infrastructure: Terminates ports on tower-mounted amplifiers, remote radio heads (RRHs), and base station combiners in 4G/5G networks.
• Distributed Antenna Systems (DAS): Absorbs residual power in indoor/outdoor DAS nodes, repeaters, and signal distribution units.
• RF Lab Validation: Serves as a reliable load for testing mid-power transmitters, transceivers, and RF components up to 6GHz (e.g., C-band, Wi-Fi 6E).
Technical Features
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
