600-3800MHz Multi-Service RF Combiner Hexaplexers 96063XXX
Electrical Specifications
Electrical Specifications | ||||
Type No. |
N Female |
96063193 Single |
96063195 Single |
96063197Single |
96063194 Double |
96063196 Double |
96063198 Double |
||
4.3-10 Female |
96063203 Single |
96063205 Single |
96063207 Single |
|
96063204 Double |
96063206 Double |
96063208 Double |
||
7-16 Female |
96063213 Single |
96063215 Single |
96063217 Single |
|
96063214 Double |
96063216 Double |
96063218 Double |
||
Frequency Range (MHz) |
Band1 Band2 Band3 Band4 Band5 Band6 |
600-960 1695-1880 1920-2200 2300-2400 2500-2700 3300-3800 |
||
Insertion Loss (dB) |
≤0.5 |
|||
Isolation (dB) |
≥50 |
|||
Return Loss (dB) |
≥20 |
|||
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
≤-155 |
≤-160 |
|
DC/AISG Bypass |
Pass |
|||
Input Power (W) |
≤250 |
|||
Peak Power (W) |
≤1200 |
|||
Impedance (Ω) |
50 |
|||
Electrical Specifications

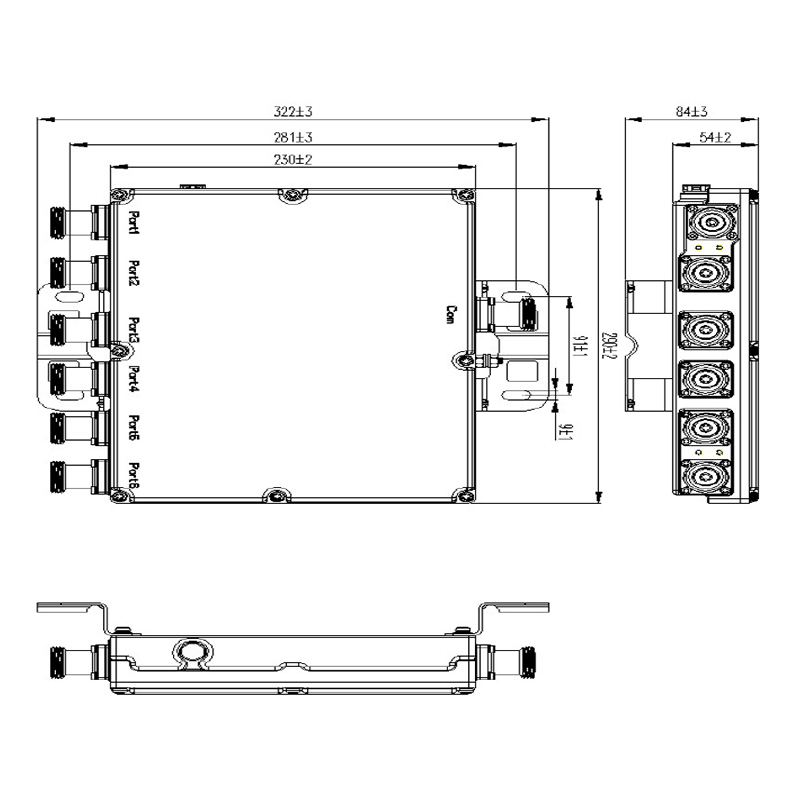

Mechanical Specifications | |
Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
230X290X54 |
Weight (including connectors and mounting bracket) (kg) |
5.4 |
Packing Size (mm) |
390X370X350 (2Pcs/box) |
Color |
Light Gay (customized) |
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Product Features
Environmental Specifications
Environmental Specifications | |
Operational Temperature (°C) |
-20 to +65 |
Operational Humidity (%) |
≤95 |
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
Lightning Protection |
8kA; 8/20 μs pulse |
Accessories (order separately)
Accessories (order separately) | |
Type No. |
Description |
50801.0618100 |
Hose clamp |
