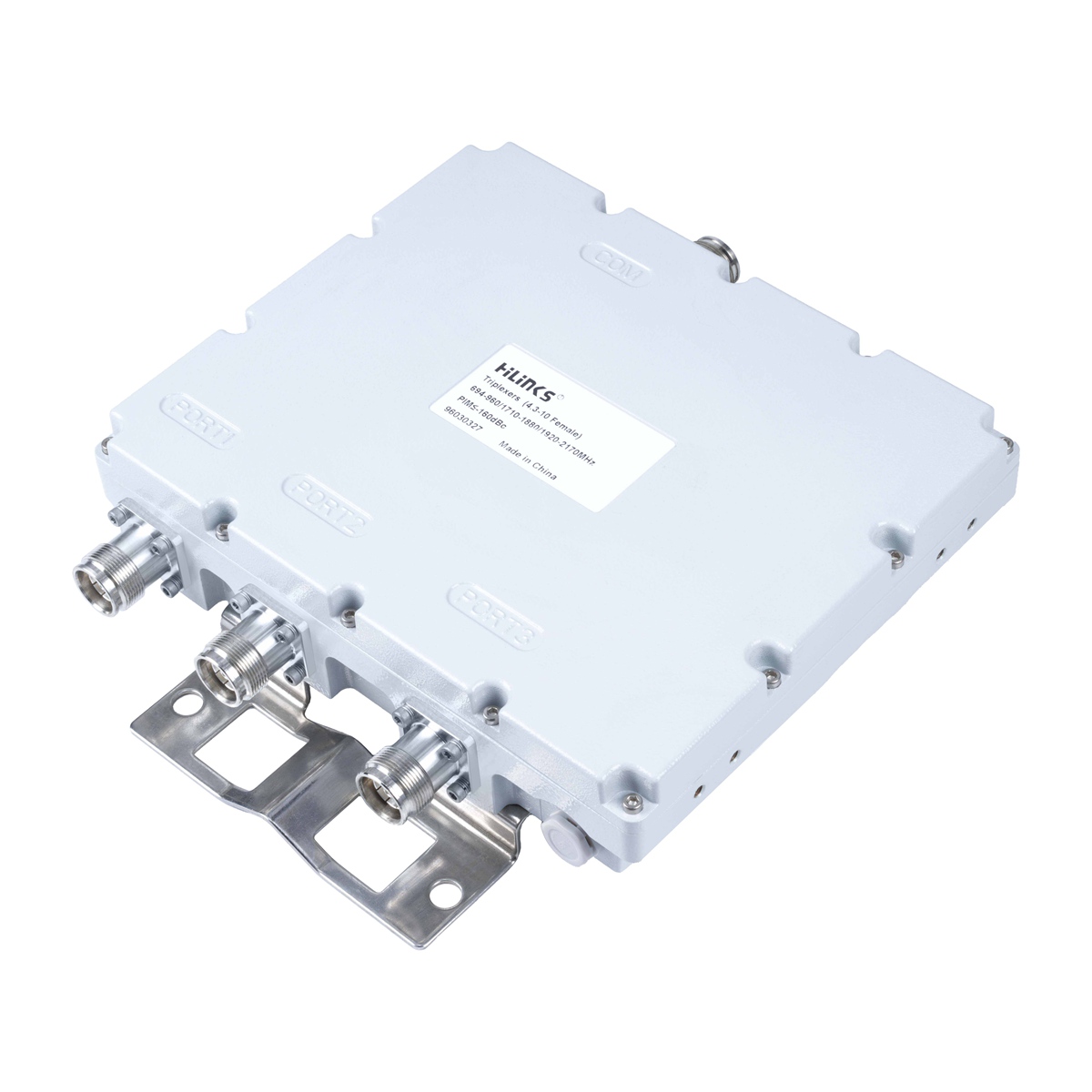

694-960/1710-2170MHz RF Combiner 96030327
|
Electrical Specifications |
||
|
Type No. |
4.3-10 Female |
96030327 |
|
Frequency Range (MHz) |
Band1 Band2 Band3 |
694-960 1710-1880 1920-2170 |
|
Insertion Loss (dB) |
Port1 Port2 Port3 |
≤0.3 ≤0.3 ≤0.3 |
|
Isolation (dB) |
≥50 |
|
|
Return Loss (dB) |
≥20 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
|
|
DC/AISG Bypass |
Port1-COM Port2-COM Port3-COM |
Pass Pass Pass |
|
Input Power (W) |
≤300 |
|
|
Impedance (Ω) |
50 |
|
|
Mechanical Specifications |
|
|

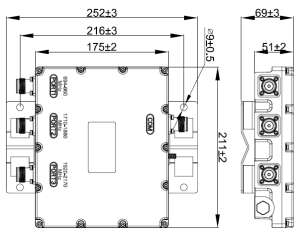

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
211x175x51 |
|
Weight (including connectors and mounting bracket) (kg) |
2.9 |
|
Packing Size(mm) |
315x275x155 |
|
Color |
Light Gray (customized) |
|
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Combines three frequency bands (694-960MHz, 1710-1880MHz, 1920-2170MHz) with low insertion loss (≤0.3dB).
Typical Application Scenarios
Ideal for multi-band co-location in telecom base stations (BTS) or antenna systems.
Technical Features
High isolation (≥50dB) and return loss (≥20dB) for optimal signal integrity.
Robust design with wide operational temperature range (-40°C to +65°C).
Supports high power handling (≤300W) and ultra-low PIM3 (≤-160dBc) for reliable performance.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
5kA; 8/20 μs pulse |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50801.5519050 |
Hose clamp |
