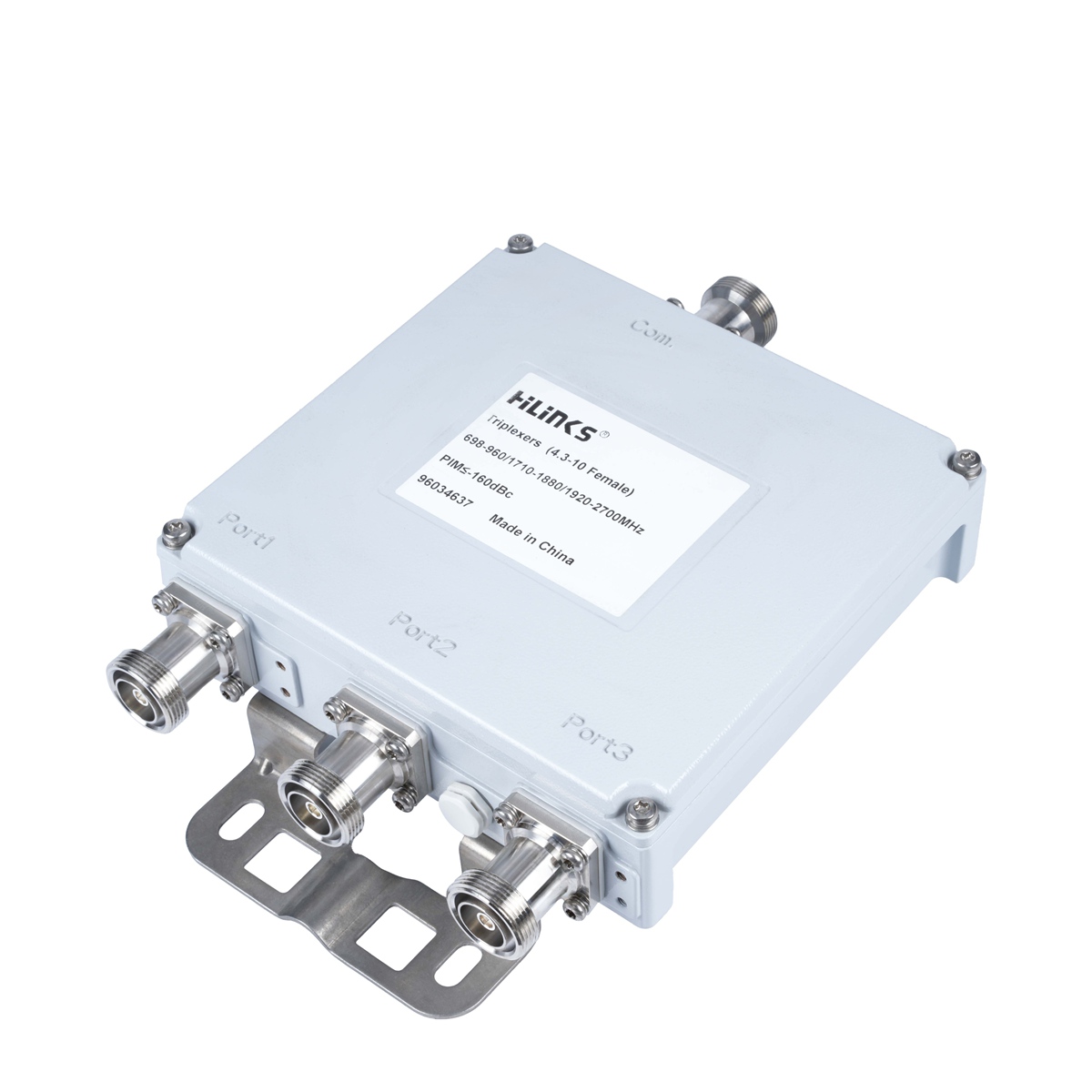

698-2700MHz High-Performance RF Combiner 96034637
|
Electrical Specifications |
||
|
Type No. |
7-16 Female |
96034637 |
|
Frequency Range (MHz) |
Band1 Band2 Band3 |
698-960 1710-1880 1920-2700 |
|
Insertion Loss (dB) |
Band1 Band2 Band3 |
≤0.2 ≤0.4 ≤0.4 |
|
Isolation (dB) |
≥50 |
|
|
Return Loss (dB) |
≤-20 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
|
|
DC/AISG Bypass |
Pass |
|
|
Input Power (W) |
≤250 |
|
|
Peak Power (W) |
2000 |
|
|
Impedance (Ω) |
50 |
|
|

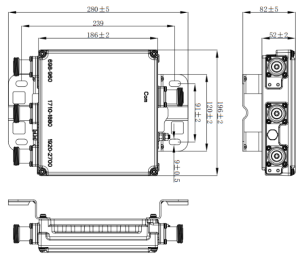

Mechanical Specifications |
|
|
Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
196X186X52 |
|
Weight (including connectors and mounting bracket) (kg) |
2.6 |
|
Packing Size(mm) |
350X265X155 |
|
Color |
Light Gray (customized) |
|
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Efficiently combines three frequency bands (698-960MHz, 1710-1880MHz, 1920-2700MHz) with ultra-low insertion loss (≤0.2-0.4dB).
Typical Application Scenarios
Ideal for co-siting applications in 4G/5G base stations (BTS) and antenna systems.
Technical Features
High isolation (≥50dB) and excellent return loss (≤-20dB) ensure minimal signal interference and optimal performance.
Robust design with a wide operational temperature range (-40°C to +65°C) for reliable performance in extreme conditions.
High power handling (≤250W continuous, 2000W peak) and ultra-low PIM3 (≤-160dBc) for carrier-grade reliability.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
8kA; 8/20 μs pulse |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50801.5519050 |
Hose clamp |
