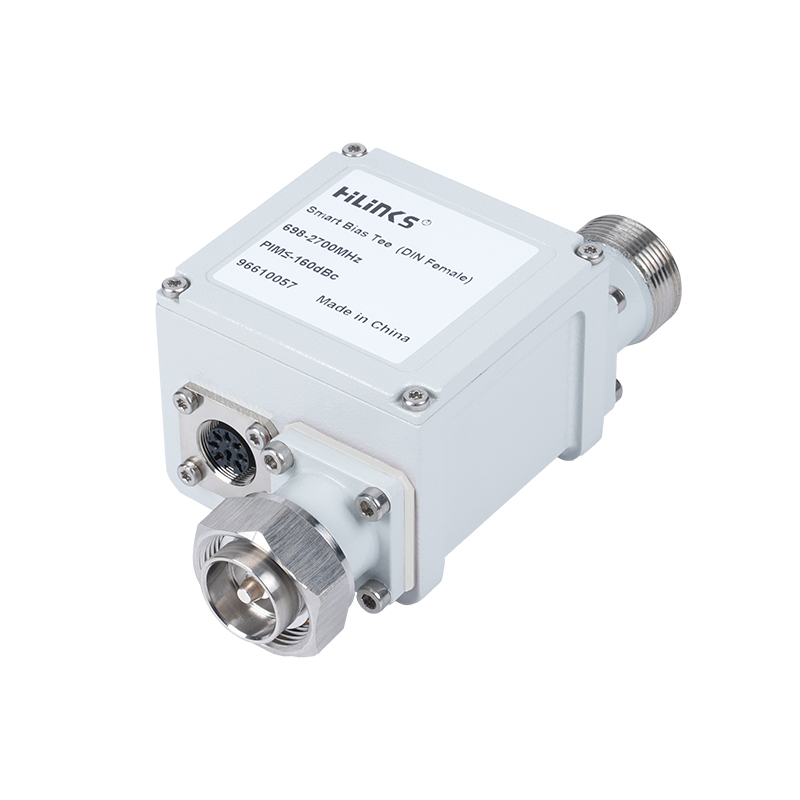

698-2700MHz LS Custom Power Modules Smart Bias Tee 966100X7
Electrical Specifications
Electrical Specifications | |||||
Type No. |
96610067 |
96610057 |
96610087 |
96610077 |
|
Application |
Antenna-Feeder |
BTS-Feeder |
|||
Port1 |
7-16 Male |
7-16 Female |
7-16 Male |
7-16 Female |
|
Port2 |
7-16 Female |
7-16 Male |
7-16 Female |
7-16 Male |
|
Port DC/AISG |
Female |
Female |
Male |
Male |
|
Frequency Range (MHz) |
698-2700 |
||||
Insertion Loss (dB) |
Port1 – Port2 |
≤0.3 |
|||
DC isolation (dB) |
Port1 – Port2 Port1 – Port DC/AISG Port2 – Port DC/AISG |
>60 >60 / |
|||
VSWR |
≤1.25 |
||||
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
||||
Power consumption(W) |
0.6 typical |
||||
Power handling (W) |
Port1 or Port2 Port DC/AISG |
≤200W AVG, 2000W Peak ≤2.5A / +10~+30VDC |
|||
Modem communication |
3GPP TS 25.461 |
||||
Impedance (Ω) |
50 |
||||

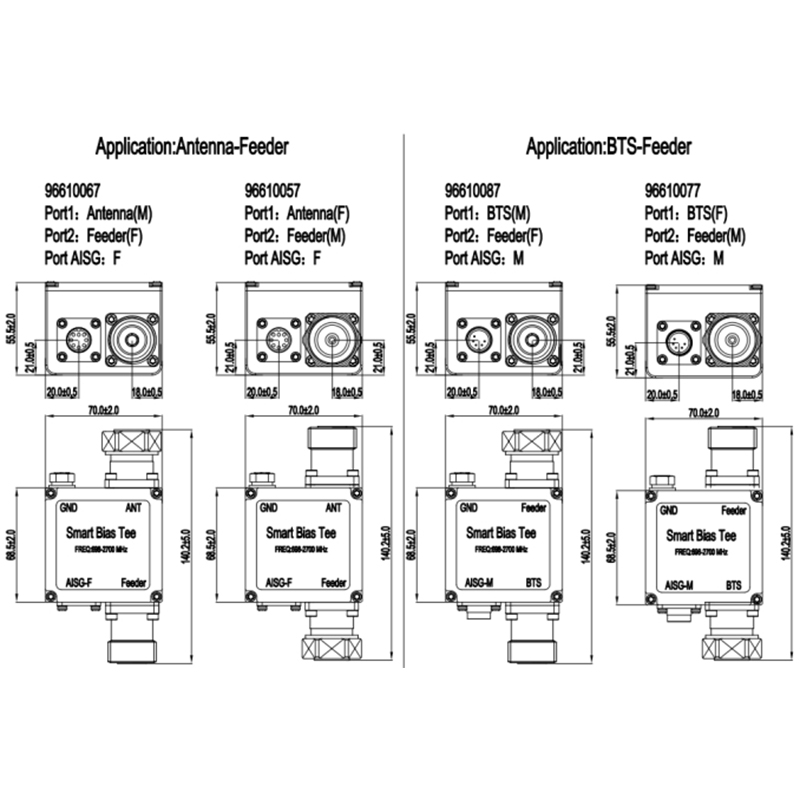

Mechanical Specifications
Mechanical Specifications | ||
Dimensions (excluding connectors and mounting bracket) (mm) |
70x68.5x55.5 |
|
Weight (including connectors and mounting bracket) (kg) |
0.8 |
|
Packing Size(mm) |
200x120x90 |
|
Color |
Light Gray (customized) |
|
Connector |
Port 1 Port 2 DC/AISG |
7-16 (F or M) 7-16 (F or M) RS485 (F or M,8-pin) |
Functions
Main Functions
1. Supports antenna-feeder signal transmission.
2. Manages AISG (F/M) interface communication.
3. Regulates bias voltage for BTS systems.
Typical Application Scenarios
1. Base Transceiver Station (BTS) installations.
2. Antenna-feeder network integration.
3. Wireless communication infrastructure setups.
Technical Features
1. Operates in 698-2700MHz frequency range.
2. Low insertion loss (IL0.3) and high isolation (IS60).
3. Compatible with MDIN and AISG (F/M) connectors.
Environmental Specifications
Environmental Specifications | |
Operational Temperature (°C) |
-40 to +65 |
Operational Humidity (%) |
≤95 |
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
Lightning Protection |
3kA; 10/350 Us pulse |
