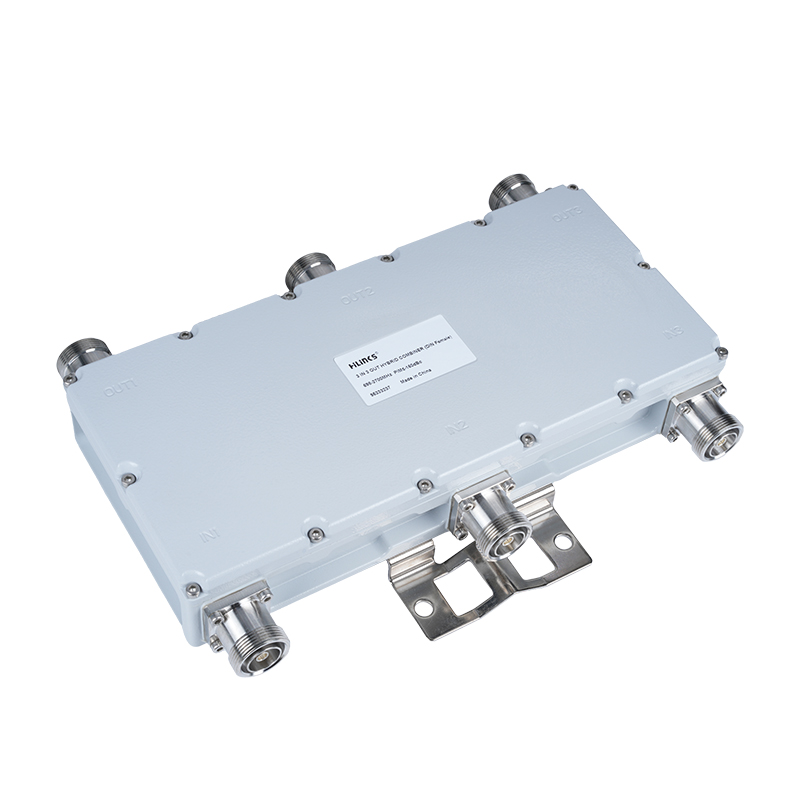

698-2700MHz Ultra-Low PIM Hybrid Combiner 95333XXX
|
Electrical Specifications |
|||||
|
Product No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
95333193 |
95333213 |
95333233 |
|
≤-155 |
95333195 |
95333215 |
95333235 |
||
|
≤-160 |
95333197 |
95333217 |
95333237 |
||
|
Frequency Range (MHz) |
698-2700 |
||||
|
Insertion Loss (dB) |
5.1±0.8 |
||||
|
Isolation (dB) |
>23 |
||||
|
VSWR (dB) |
< 1.25 |
||||
|
Input Power (W) |
<300 |
<300 |
<500 |
||
|
Impedance (Ω) |
50 |
||||
|
Mechanical Specifications |
|||
|

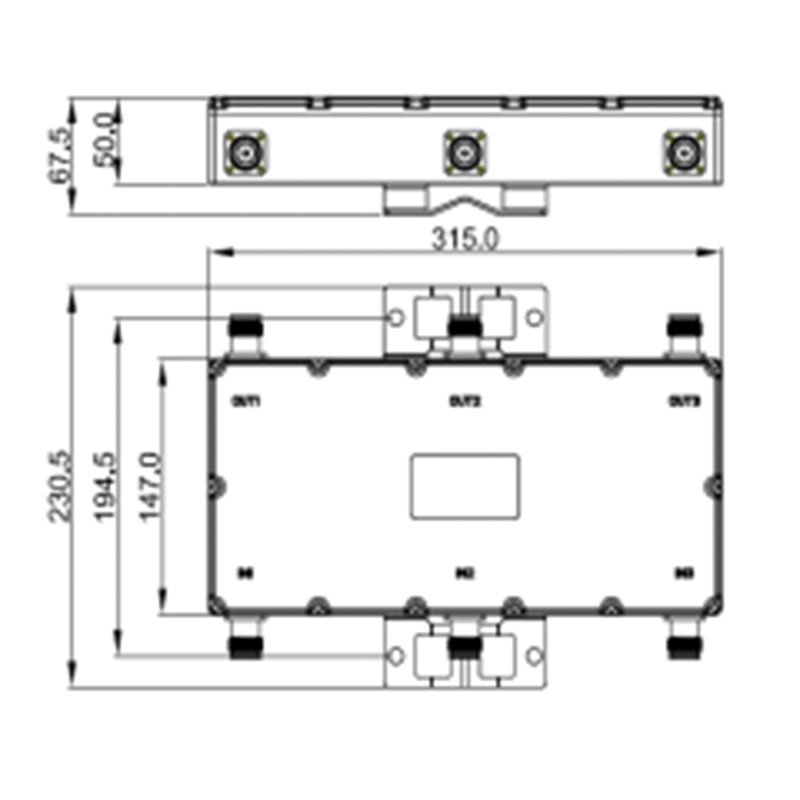

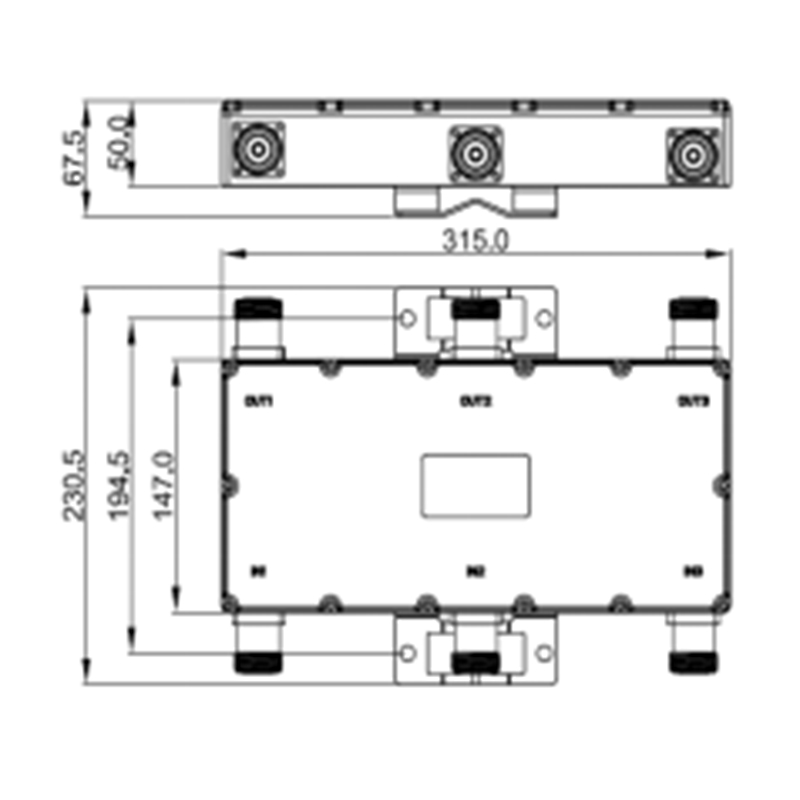

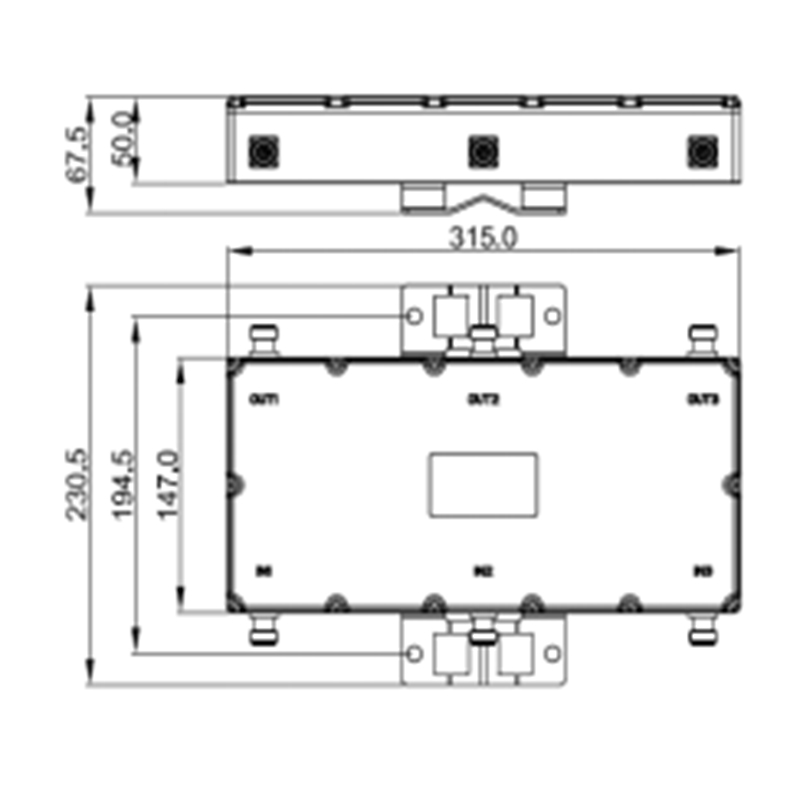

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
315x147x50 |
||
|
Weight (including connectors and mounting bracket) (kg) |
4.3 |
4.4 |
4.9 |
|
Connector Type |
N Female |
4.3-10 Female |
7-16 Female |
|
Packing Size(mm) |
375x290x125 |
||
|
Color |
Light Gray (customized) |
||
|
Mounting |
Wall Mounted |
||
Main Functions
Multi-Port Signal Combining: Merges RF inputs into a single output with optimized insertion loss (5.1±0.8 dB) for efficient spectrum utilization.
Cross-Channel Isolation: Prevents interference between combined signals through high isolation (>23 dB) and ultra-low PIM (≤-160dBc).
High-Power Handling: Supports up to ≤500W continuous input power while maintaining 50-ohm impedance and low VSWR (<1.25).
Typical Application Scenarios
LTE/4G Base Stations: Combines 698-2700MHz signals (including FirstNet Band 14) in cellular infrastructure using N/4.3-10/7-16 connectors.
Public Safety Communication Hubs: Deploys in mission-critical networks (e.g., emergency response systems) requiring IP65 protection and -40°C operation.
Stadium/Rail DAS: Provides interference-free signal combining for high-density venues where ≤-160dBc PIM prevents multi-operator interference.
Technical Features
Connector-Specific Power Options:
N Female: ≤300W continuous
4.3-10 Female: ≤300W continuous
7/16 Female: ≤500W continuous
Optimized RF Performance: Ultra-low PIM (≤-160dBc @2x43dBm), precision insertion loss (5.1±0.8 dB), and wide bandwidth covering key LTE bands (698-2700MHz).
Compact Industrial Design: Space-efficient chassis (315×147×50mm, ≤4.9kg), wall-mountable, IP65-rated for harsh environments, and operational from -40°C to +65°C.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
