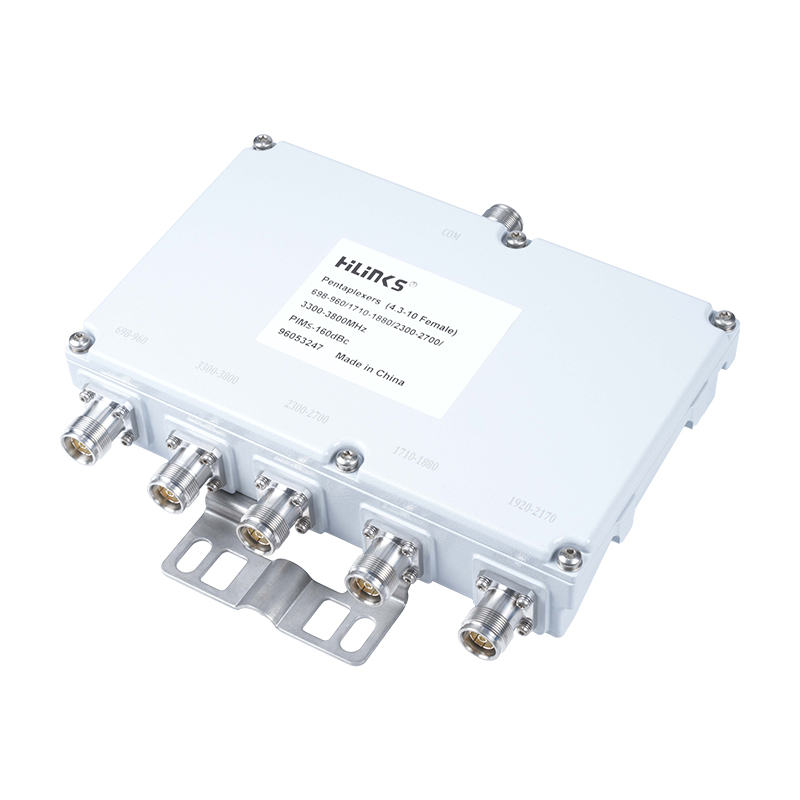

698-3800MHz Multi-Service RF Combiner96053247
|
Electrical Specifications |
||
|
Type No. |
4.3-10 Female |
96053247 |
|
Frequency Range (MHz) |
Band1 Band2 Band3 Band4 Band5 |
698-960 1710-1880 1920-2170 2300-2700 3300-3800 |
|
Insertion Loss (dB) |
≤0.4 |
|
|
Isolation (dB) |
≥50 |
|
|
Return Loss (dB) |
≥19 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
|
|
Input Power (W) |
≤200 |
|
|
Peak Power (W) |
≤2000 |
|
|
Impedance (Ω) |
50 |
|
|

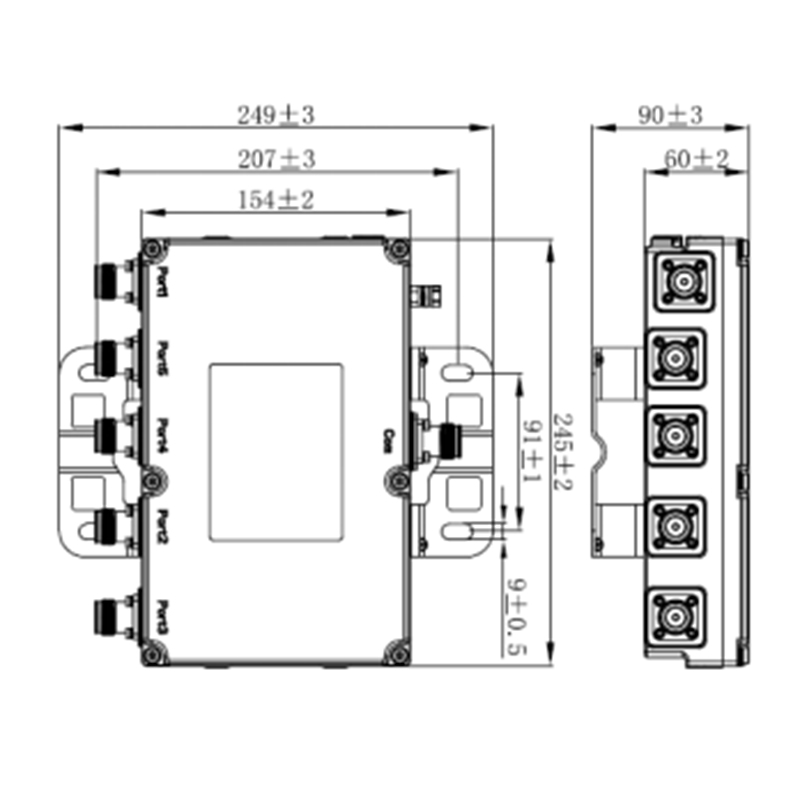

Mechanical Specifications |
|
|
Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
245x154x60 |
|
Weight (including connectors and mounting bracket) (kg) |
3.0 |
|
Packing Size(mm) |
315x315x160 |
|
Color |
Light Gray (customized) |
|
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Combines five critical frequency bands (698-960MHz, 1710-1880MHz, 1920-2170MHz, 2300-2700MHz, 3300-3800MHz) with low insertion loss (≤0.4dB).
Supports flexible DC/AISG bypass configurations for diverse network requirements.
Features robust lightning protection (8kA, 8/20µs pulse) for outdoor reliability.
Typical Application Scenarios
Ideal for modern 4G/5G base stations requiring multi-band co-siting solutions.
Suitable for both indoor and outdoor deployments with IP65 environmental protection.
Enables efficient spectrum utilization in dense urban and rural telecom networks.
Technical Features
High isolation (≥50dB) and excellent return loss (≥19dB) ensure clean signal transmission.
Compact industrial design (-40°C to +65°C operational range) for challenging environments.
Supports high-power operations (≤200W continuous, ≤2000W peak) with ultra-low PIM (≤-160dBc).
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
|
Lightning Protection |
8kA; 8/20 μs pulse |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50801.5519050 |
Hose clamp |
