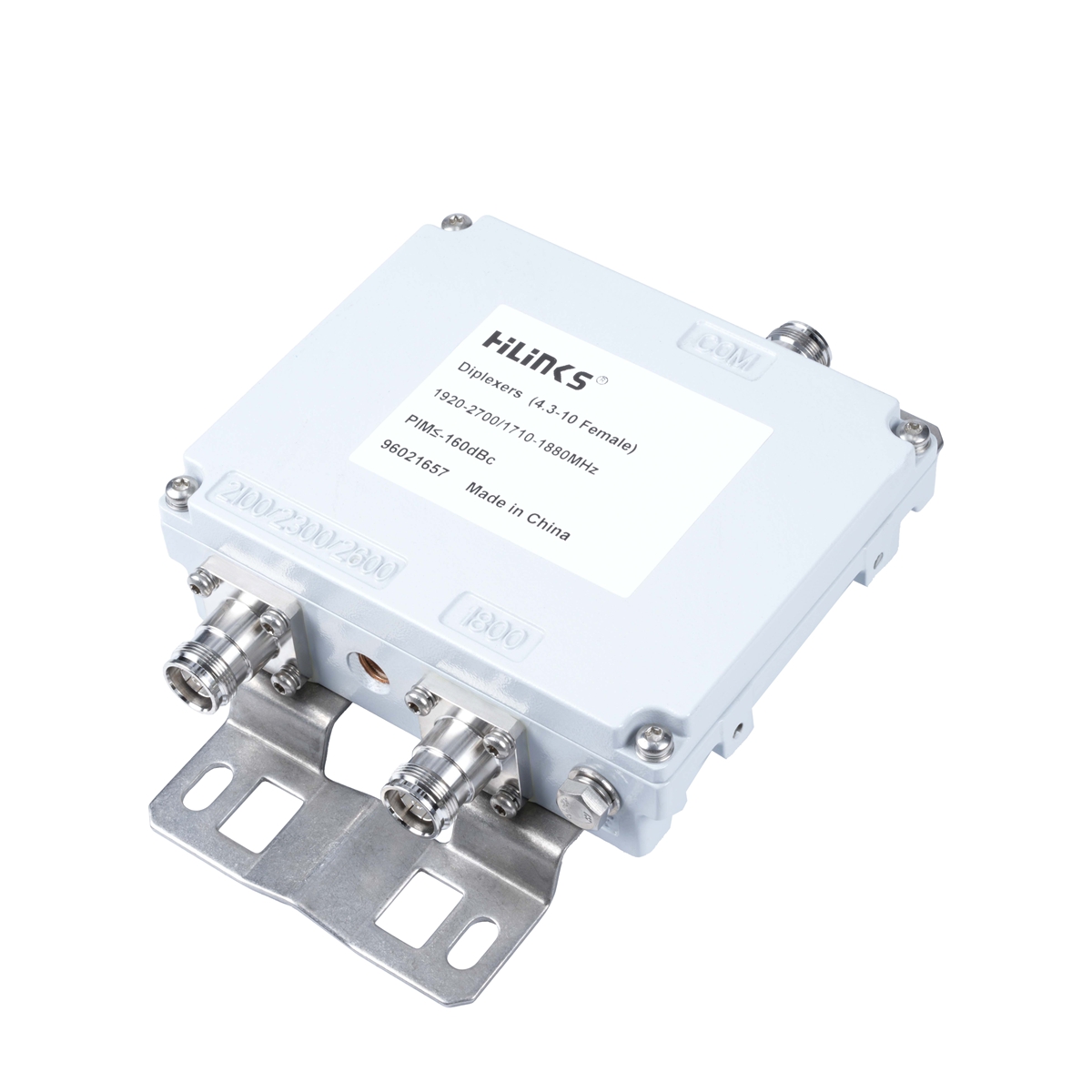

Compact Dual-Band Combiner System 96021657
Electrical Specifications
|
Electrical Specifications |
||
|
Product No. |
4.3-10 Female |
96021657 |
|
Frequency Range (MHz) |
Band1 Band2 |
1710-1880 1920-2170 |
|
Insertion Loss (dB) |
<0.2 typ, <0.4 max |
|
|
Isolation (dB) |
≥55 |
|
|
Return Loss (dB) |
≥20 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
|
|
DC/AISG Bypass |
Pass |
|
|
Input Power (W) |
≤250 |
|
|
Impedance (Ω) |
50 |
|
Mechanical Specifications
|
Mechanical Specifications |
|
|

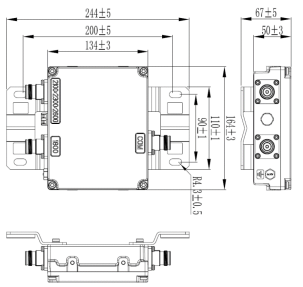

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
164x134x50 |
|
Weight (including connectors and mounting bracket) (kg) |
1.9 |
|
Packing Size(mm) |
327x257x150 |
|
Color |
Light Gray (customized) |
|
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Dual-Band Signal Combining
Efficiently combines 1710-1880MHz and 1920-2170MHz frequency bands for optimized spectrum utilization in modern wireless networks.
DC/AISG Bypass Support
Features configurable pass-through functionality for seamless integration with Remote Electrical Tilt (RET) systems and Tower Mounted Amplifiers (TMAs).
Enhanced Lightning Protection
Incorporates 10kA (8/20µs pulse) surge protection for reliable operation in outdoor installations.
Typical Application Scenarios
4G/LTE Network Expansion
Ideal for base station upgrades supporting multi-band operation in existing cellular infrastructure.
Urban Small Cell Deployment
Compact design enables installation in space-constrained environments for capacity enhancement.
Hybrid Indoor/Outdoor Systems
IP67-rated enclosure allows flexible deployment in equipment shelters, rooftops, or outdoor tower sites.
Technical Features
Ultra-Low Insertion Loss
PExceptional performance with <0.2dB typical and <0.4dB maximum signal loss
Superior Isolation
≥55dB inter-band isolation ensures clean signal transmission without interference.
High-Power Capability
Supports up to 250W continuous input power for demanding network applications.
Environmental Specifications
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-25 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor or outdoor) |
|
Lightning Protection |
10kA; 8/20 μs pulse |
Accessories (order separately)
Accessories (order separately) | |
Type No. |
Description |
50801.5519050 |
Hose clamp |
