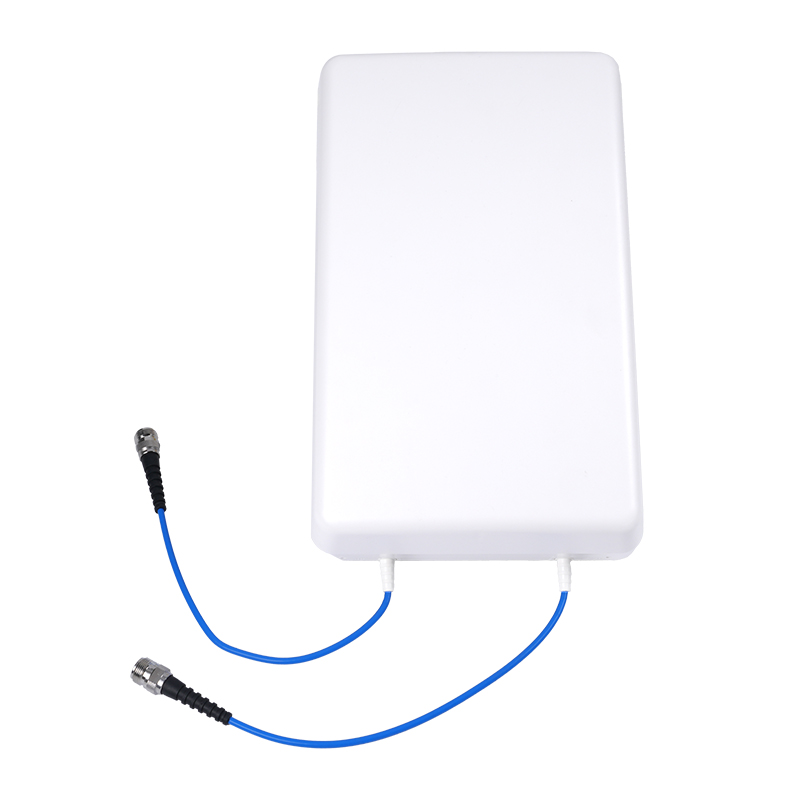

Compact Indoor Panel Antenna with Adjustable Beamwidth 970120XX
Electrical Specifications
|
Type No. |
N Female |
97012060 |
97012063 |
97012065 |
||||
|
4.3-10 Female |
97012070 |
97012073 |
97012075 |
|||||
|
Frequency Band, MHz |
600-617 |
617-960 |
1710-2700 |
3300-4000 |
4900-6000 |
|||
|
Gain, dBi |
5.0 |
5.5 |
8.5 |
7.0 |
6.5 |
|||
|
VSWR |
≤2.5 |
≤2.5 |
≤1.8 |
≤2.0 |
≤2.0 |
|||
|
Polarization |
Horizontal and Vertical |
|||||||
|
Isolation, dB |
≥11 |
≥12 |
≥20 |
≥24 |
≥24 |
|||
|
Front to Back Ratio, dB |
≥7 |
≥7 |
≥13 |
≥10 |
≥10 |
|||
|
Horizontal Beam width |
100° |
90° |
65° |
45° |
23° |
|||
|
Vertical Beam width |
83° |
78° |
60° |
38° |
25° |
|||
|
PIM,3rd Order,2×20W (dBc) |
≤-140 |
≤-150 |
≤-153 |
|||||
|
Input Impedance, ohms (Ω) |
50 |
|||||||
|
Input Power (W) |
50 |
|||||||
|
Lightning protection |
DC Ground |
|||||||
Mechanical Specifications
|
Size (mm) |
315x195x68 |
|
Weight (kg) |
0.7 |
|
Radome Material, Color |
ABS (UV Stabilized), White, RAL 9003 |
|
Reflector material |
Aluminum and PCB |
Main Functions
Transmits/Receives Signals: Provides wireless signal coverage across a very wide frequency range (600 MHz to 6000 MHz) for various communication technologies.
Dual Polarization: Supports both Horizontal (H) and Vertical (V) polarized signals simultaneously to improve signal reliability and capacity.
Beam Shaping: Focuses radio frequency energy in specific horizontal (23° to 100°) and vertical (25° to 83°) beamwidths for targeted coverage.
Typical Application Scenarios
Indoor Cellular Coverage: Deploying 4G LTE, 5G NR, and IoT networks within buildings like offices, malls, hotels, or factories.
Public Venue Connectivity: Providing wireless service in high-density areas such as airports, conference centers, and stadiums.
Enterprise & Industrial Wireless: Supporting private networks, Wi-Fi (including 6 GHz), DAS (Distributed Antenna Systems), and specialized wireless applications indoors.
Technical Features
Ultra-Wide Frequency Range: Operates from 600 MHz to 6000 MHz, covering major cellular bands, CBRS, and Wi-Fi 6E/7.
Variable Beamwidth & Gain: Offers selectable horizontal beamwidths (23° to 100°) and gains (5.0 dBi to 8.5 dBi) optimized per frequency sub-band.
Compact & Rugged Design: Features a small footprint (315x195x68 mm), light weight (0.7 kg), UV-stabilized ABS radome, and operates from -40°C to +65°C.
Environmental Specifications
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40°C to +65°C |
|
Operational Humidity (%) |
≤95 |
Radiation Patterns
|
750MHz |
2170MHz |
3800MHz |
5850MHz |
|
|
Horizontal |
|
|
|
|
|
Vertical |
|
|
|
 |
