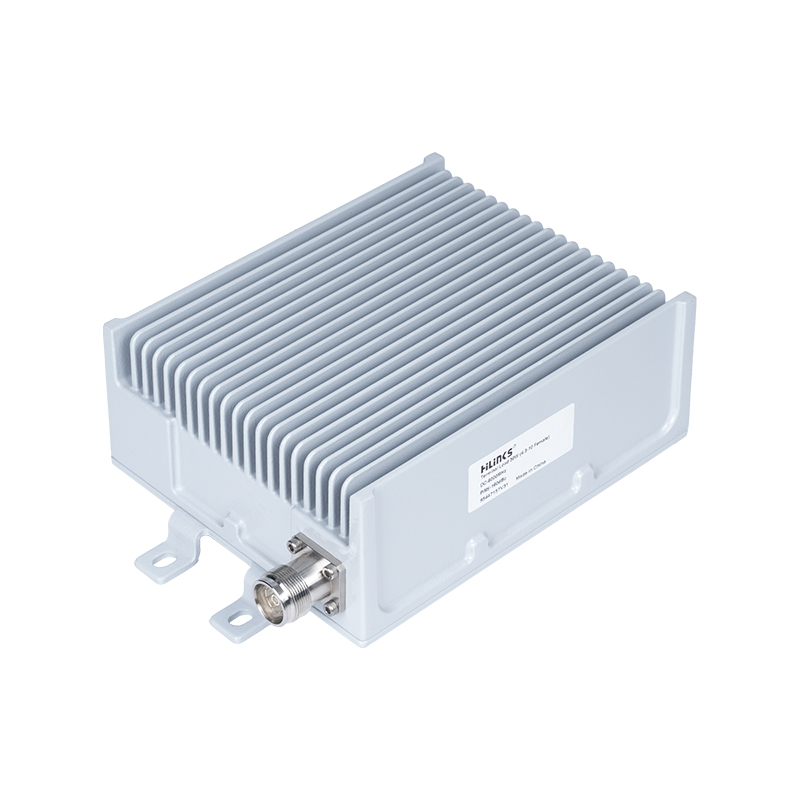

DC-6000 25W Equipmen Terminal Load 954441X7V31
|
Electrical Specifications |
||
|
Type No. |
N Female |
95444137V31 |
|
N Male |
95444147V31 |
|
|
4.3-10 Female |
95444157V31 |
|
|
4.3-10 Male |
95444167V31 |
|
|
7-16 Female |
95444177V31 |
|
|
7-16 Male |
95444187V31 |
|
|
Input Power (W) |
25 |
|
|
Frequency Range (MHz) |
DC-6000 |
|
|
Return Loss (dB) |
≤-19@340-3800, ≤-18@3800-6000 |
|
|
Intermodulation (3rd order, dBc) |
≤-160@2x37dBm |
|
|
Impedance (Ω) |
50 |
|
|
Mechanical Specifications |
||
|

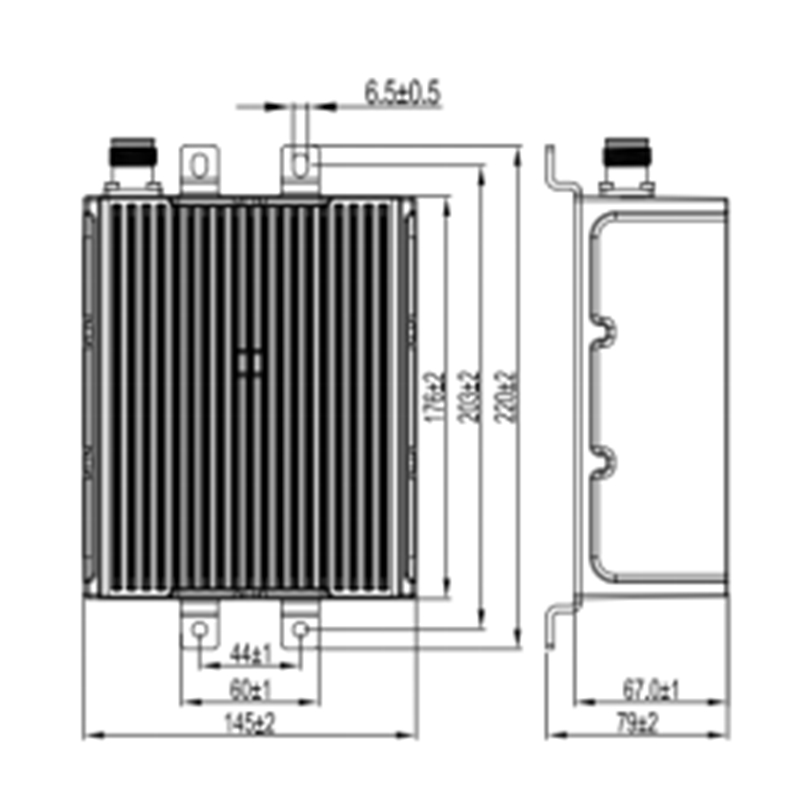

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
176x145x47.5 |
|
|
Weight (including connectors and mounting bracket) (kg) |
N Female/ Male |
1.9 |
|
4.3-10 Female/ Male |
1.9 |
|
|
7-16 Female/ Male |
2.0 |
|
|
Packing Size(mm) |
280x215x125 |
|
|
Color |
Light Gray (Customized) |
|
|
Mounting |
Wall mounting |
|
Main Functions
Reflection Prevention: Terminates unused RF ports across DC-6000MHz, absorbing stray signals to eliminate reflections that cause interference or system damage.
Impedance Matching: Maintains precise 50Ω impedance with optimized return loss (≤19dB@340-3800MHz; ≤18dB@3800-6000MHz), ensuring transmission line stability.
Calibration Reference: Provides ultra-low PIM (≤-160dBc @ 2×37dBm) performance for accurate lab/field testing of passive intermodulation in cellular bands.
Typical Application Scenarios
Test & Measurement Labs: Serves as calibration load for network analyzers and spectrum analyzers during VSWR/PIM validation up to 6GHz.
Small Cell Deployments: Secures open ports in 5G mmWave radios or DAS nodes (IP65-rated) where space constraints demand compact solutions (176×145×47.5mm).
Field Maintenance Kits: Used by RF technicians to terminate combiners/filters during tower maintenance, preventing reflections in live networks (-40°C to +65°C operation).
Technical Features
Broadband Precision: Covers DC-6000MHz with frequency-optimized return loss, featuring industry-leading PIM suppression (≤-160dBc) for interference-free measurements.
Connector Versatility: Six variants for seamless integration:
N (Male: 954/4/147V31; Female: 954/4/137V31)
4.3-10 (Male: 954/4/167V31; Female: 954/4/157V31)
7-16 (Male: 954/4/187V31; Female: 954/4/177V31)
Robust Miniature Design: Features IP65 environmental sealing, unified dimensions, and lightweight build (1.9–2.0kg). Wall-mount ready with 250V DC isolation (per outline).
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
