DC-6G 5W Equipment Terminal Load 95437XXXV40
|
Electrical Specifications |
||||
|
Type No. |
N Female |
95437B93V40 |
95437B95V40 |
95437B97V40 |
|
N Male |
95437B83V40 |
95437B85V40 |
95437B87V40 |
|
|
4.3-10 Female |
95437B73V40 |
95437B75V40 |
95437B77V40 |
|
|
4.3-10 Male |
95437A33V40 |
95437A35V40 |
95437A37V40 |
|
|
7-16 Female |
95437C23V40 |
95437C25V40 |
95437C27V40 |
|
|
7-16 Male |
95437C13V40 |
95437C15V40 |
95437C17V40 |
|
|
Input Power (W) |
5 |
|||
|
Frequency Range (MHz) |
DC-6000 |
|||
|
Return Loss (dB) |
≤-18 |
|||
|
PIM3 (@2x33 dBm Carrier) (dBc) |
≤-150@900M/1800M/ 2600M Bands |
≤-155@900M/1800M/ 2600M Bands |
≤-160@900M/1800M/ 2600M Bands |
|
|
Impedance (Ω) |
50 |
|||
|
Mechanical Specifications |
|
|

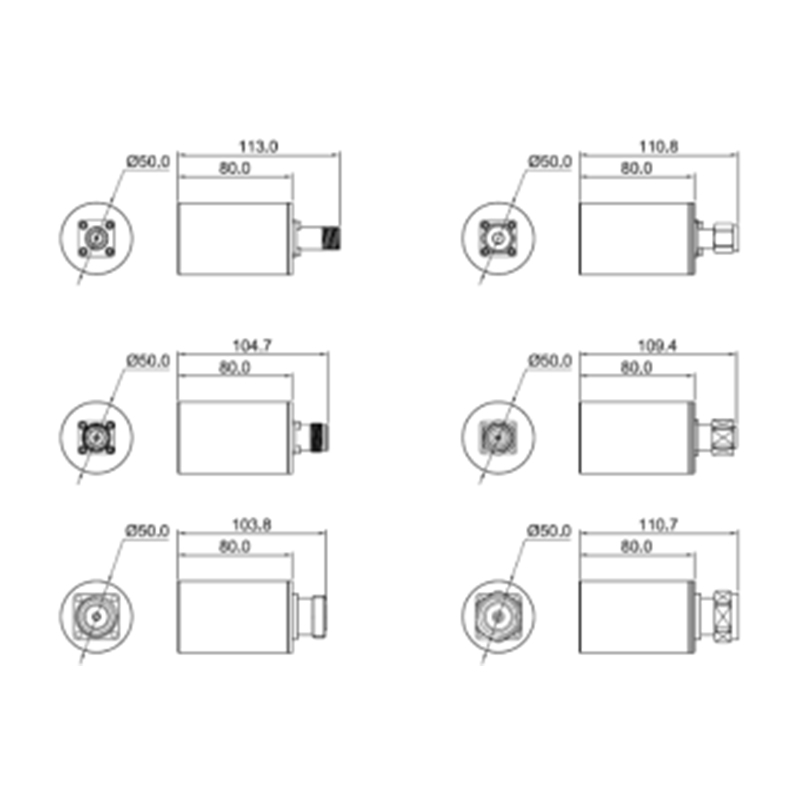

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
¢50x80 |
|
Weight (including connectors and mounting bracket) (kg) |
1.2 |
|
Color |
Black (Customized) |
|
Mounting |
Wall Mounted |
Main Functions
Signal Termination: Absorbs unused RF energy across DC-6000MHz, eliminating harmful reflections in transmission lines to prevent system interference and equipment damage.
Impedance Stabilization: Maintains precise 50Ω termination with controlled return loss (≤18dB), ensuring consistent line matching for antennas, test ports, or combiner outputs.
PIM-Sensitive Calibration: Serves as a reference standard for passive intermodulation testing, with tiered PIM performance options (-150/-155/-160dBc) for lab/field validation.
Typical Application Scenarios
5G C-Band Infrastructure: Terminates unused ports in massive MIMO antennas or small cell radios (3400-6000MHz) to maintain signal integrity in high-density deployments.
RF Test & Measurement: Provides reliable termination for network analyzers during VSWR testing or PIM validation at key bands (900/1800/2600MHz).
Compact Outdoor Systems: Deploys in space-constrained microwave links or satellite ground stations (IP65-rated) with resilience to temperature fluctuations (-20°C to +65°C).
Technical Features
Tiered PIM Performance: Delivers selectable ultra-low PIM3 (≤-150dBc, ≤-155dBc, or ≤-160dBc) tested at 900/1800/2600MHz, critical for cellular interference control.
Connector Matrix: 18 variants covering industry standards:
N (Male/Female: 95437B83-87V40 / 95437B93-97V40)
4.3-10 (Male/Female: 95437A33-37V40 / 95437B73-77V40)
7-16 (Male/Female: 95437C13-17V40 / 95437C23-27V40)

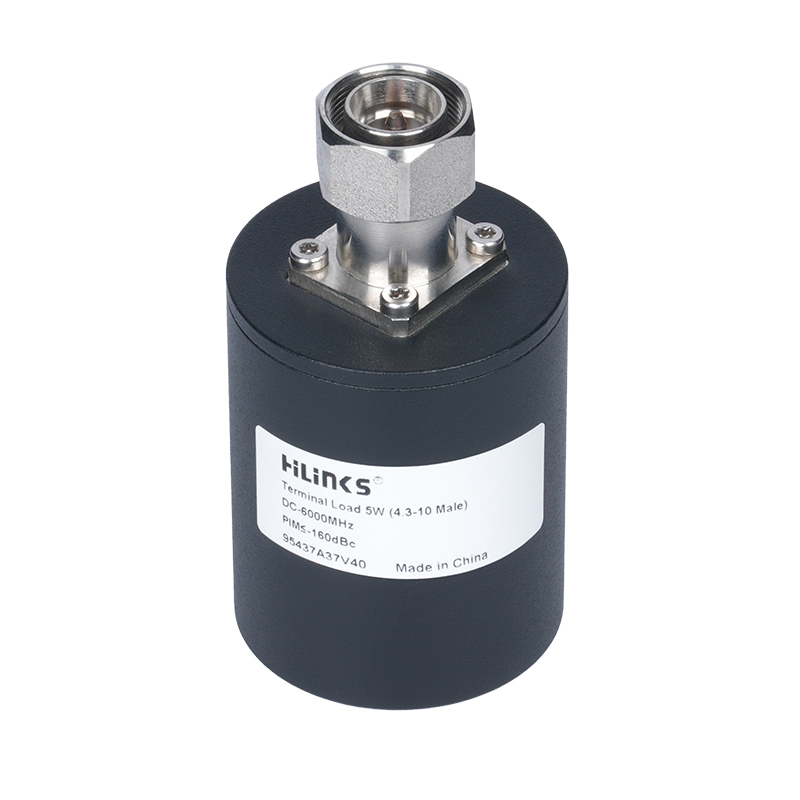

Space-Optimized Design: Features a compact cylindrical form factor (Ø50×80mm, 1.2kg) with black anodized housing and wall mounting. Unmatched density for congested installations.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-20 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
