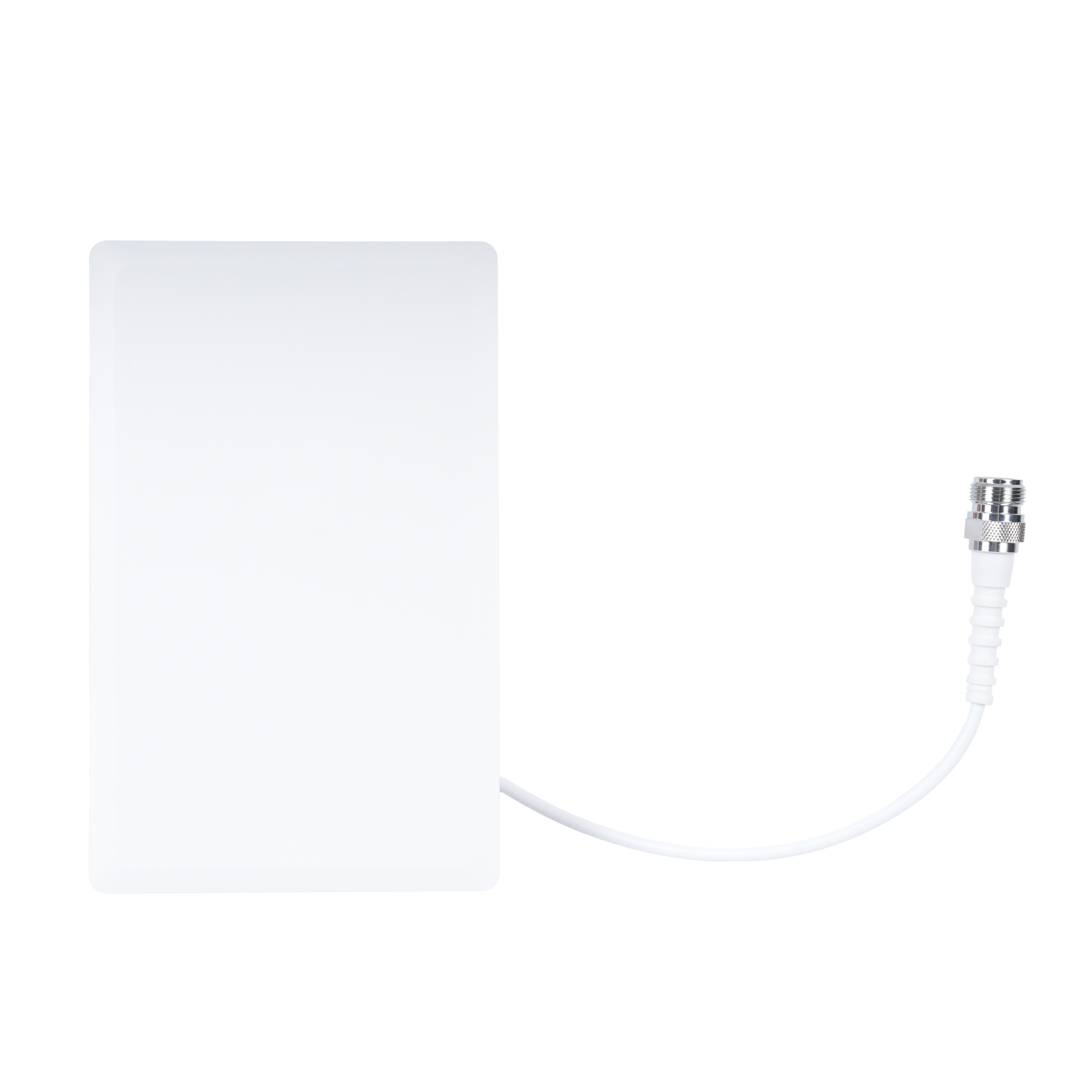

Directional Panel Antenna with Narrow Beamwidth 600-6000MHz 970120XX
|
Electrical Specifications |
|||||||
|
Type No. |
N Female |
97012020 |
97012023 |
97012025 |
|||
|
4.3-10 Female |
97012030 |
97012033 |
97012035 |
||||
|
PIM,3rd Order,2×20W (dBc) |
≤-140 |
≤-150 |
≤-153 |
||||
|
Frequency Band, MHz |
600-617 |
617-806 |
806-960 |
1710-2700 |
3300-4000 |
4900-6000 |
|
|
Gain, dBi |
5.0 |
5.5 |
6.5 |
8.0 |
7.0 |
8.5 |
|
|
VSWR |
≤2.5 |
≤2.3 |
≤2.0 |
≤1.8 |
≤1.8 |
≤2.0 |
|
|
Polarization |
Vertical |
||||||
|
Front to Back Ratio, dB |
≥8 |
≥9 |
≥10 |
≥15 |
≥11 |
≥8.5 |
|
|
Horizontal Beam width |
110° |
100° |
85° |
65° |
50° |
14° |
|
|
Vertical Beam width |
95° |
90° |
82° |
60° |
45° |
16° |
|
|
Input Impedance, ohms (Ω) |
50 |
||||||
|
Input Power (W) |
50 |
||||||
|
Lightning protection |
DC Ground |
||||||
|
Mechanical Specifications |
|
|
Size (mm) |
180x158x60 |
|
Weight (kg) |
0.4 |
|
Radome Material, Color |
ABS (UV Stabilized), White, RAL 9003 |
|
Reflector material |
Aluminum |
Main Functions
The 970120XX antenna is designed to provide directional signal coverage with a dynamically adjustable horizontal beamwidth ranging from 14° to 110°, allowing for precise sector targeting within indoor environments. It supports a broad frequency spectrum from 600MHz to 6000MHz, making it capable of handling various cellular standards, including LTE and 5G. A key function is its high front-to-back ratio (up to ≥15 dB), which effectively minimizes interference from signals behind the antenna, enhancing network capacity and signal quality in dense deployments.
Typical Application Scenarios
This antenna is ideal for providing targeted coverage in large indoor venues such as airport terminals, convention halls, and stadiums, where specific seating areas or corridors require focused high-capacity signals. It is also well-suited for office buildings and hotels to deliver strong, reliable connectivity to particular zones or floors, eliminating dead spots efficiently. Furthermore, its directional capability makes it excellent for point-to-point or point-to-multipoint links within industrial settings, such as along assembly lines in factories or across large warehouses for IoT device connectivity.
Technical Features
The antenna delivers high gain, ranging from 5.0 dBi to 8.5 dBi across different bands, with peak performance in the 1710-2700MHz and 4900-6000MHz ranges. It maintains a low VSWR (≤2.5, typically ≤1.8 in mid-high bands) and features excellent passive intermodulation (PIM) performance as low as -153 dBc, ensuring clean signal transmission crucial for multi-operator environments. Mechanically, it features a compact rectangular design (180x158x60 mm), lightweight construction (0.4 kg), an aluminum reflector for stability, and a UV-resistant ABS radome, built to operate reliably in temperatures from -40°C to +65°C and up to 95% humidity.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40°C to +65°C |
|
Operational Humidity (%) |
≤95 |
|
Radiation Patterns |
||||
|
|
750MHz |
2170MHz |
3800MHz |
5850MHz |
|
Horizontal |
|
|
|
|
|
Vertical |
|
|
|
|
