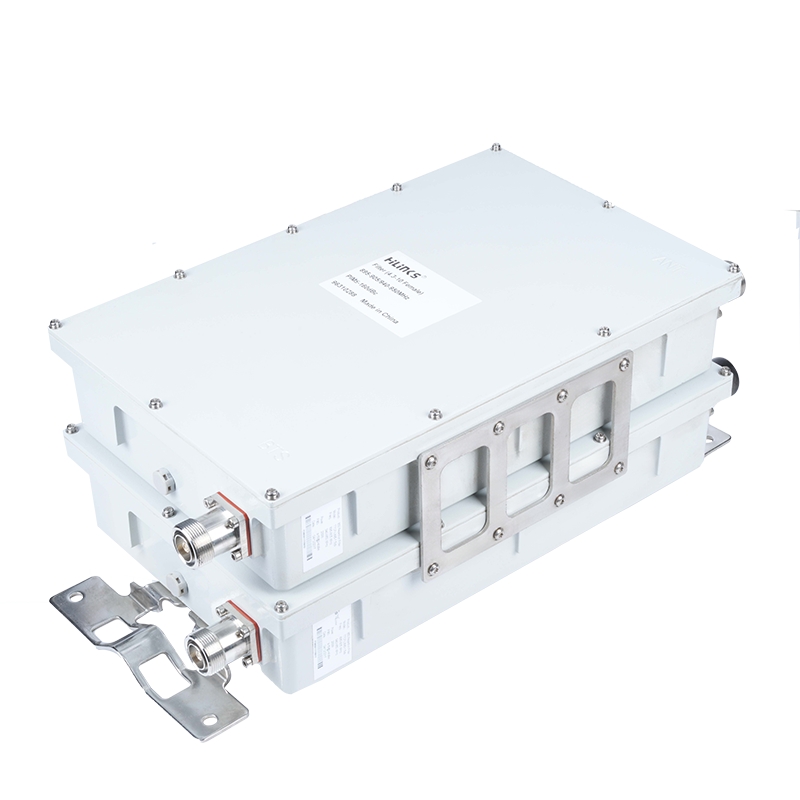

Dual-Band Filter with DC/AISG Bypass 9631028X
|
Electrical Specifications |
||
|
Type No. |
96310287 Single |
96310288 Double |
|
Frequency Range (MHz) |
895-905&940-950 |
|
|
Insertion Loss (dB) |
≤1.5@895-896.5MHz ≤0.6@896.5-905MHz ≤0.5@940-950MHz |
|
|
Rejection (dB) |
≥45@DC-894 |
|
|
Return Loss (dB) |
≥19 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
|
|
DC/AISG Bypass |
Pass |
|
|
Input Power (W) |
≤200 |
|
|
Peak Power (W) |
≤2000 |
|
|
Impedance (Ω) |
50 |
|
|
Mechanical Specifications |
|
|

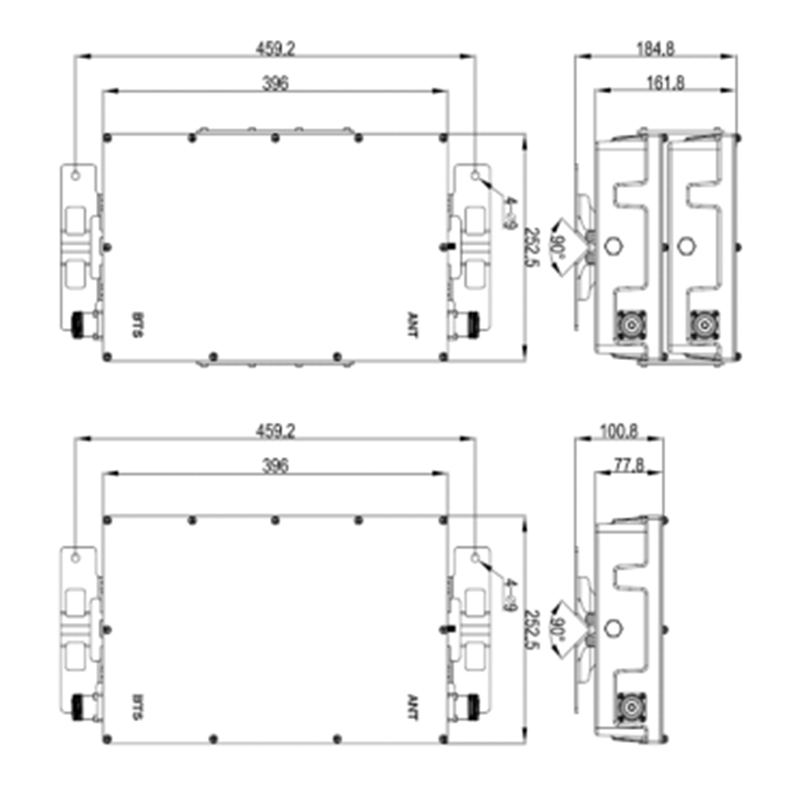

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
Single:396X252.5X77.8 Double:396x252.5x161.8 |
|
Weight (including connectors and mounting bracket) (kg) |
Single:7.7 Double:15.4 |
|
Packing Size(mm) |
Single:570x355x200 Double:570x355x275 |
|
Connector Type |
7-16 Female |
|
Color |
Light Gray |
|
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Precise Band Selection: Passes critical RF signals in two dedicated bands (895-905MHz and 940-950MHz) while providing sharp rejection (≥45dB) for all frequencies below 894MHz, ensuring clean signal transmission for target services.
DC/AISG Signal Support: Features integrated bypass for DC power and AISG control signals, enabling remote antenna unit management without disrupting filtered RF paths.
Surge Suppression: Incorporates robust lightning protection (10kA; 8/20µs pulse), shielding connected equipment from voltage surges in outdoor deployments.
Typical Application Scenarios
Critical Communications Infrastructure: Ideal for TETRA, CDMA, or specialized industrial systems operating in 900MHz bands where strict out-of-band rejection is essential to prevent interference.
Co-located Cellular Sites: Used in multi-operator towers to isolate specific bands (e.g., 900MHz utilities) from adjacent cellular signals (e.g., 700-800MHz LTE), reducing cross-system noise.
Ruggedized RF Enclosures: Deployed in outdoor cabinets or pole-mounted setups (via included Φ35-135mm clamps) for public safety networks, industrial IoT, or SCADA systems requiring weather resilience (IP65) and surge protection.
Technical Features
Optimized RF Performance: Delivers ultra-low insertion loss (≤0.6dB in primary passband) and high rejection (≥45dB@DC-894MHz), with PIM ≤-160dBc ensuring signal integrity. Available in single-unit (96310287) or dual-unit (96310288) configurations for flexible deployment.
High-Power Resilience: Handles continuous input power up to 200W and extreme peaks of 2000W (7-16 Female connectors), suitable for high-traffic or emergency communication networks.
Industrial-Grade Design: Features IP65-rated housing for dust/water resistance, operational range of 0°C to +55°C, and flexible pole/wall mounting. Compact form factor (Single: 396x252.5x77.8mm; Double: 396x252.5x161.8mm) simplifies integration.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
0 to +55 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
|
Lightning Protection |
10kA; 8/20 μs pulse |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50801.0619100 |
Hose clamp |
