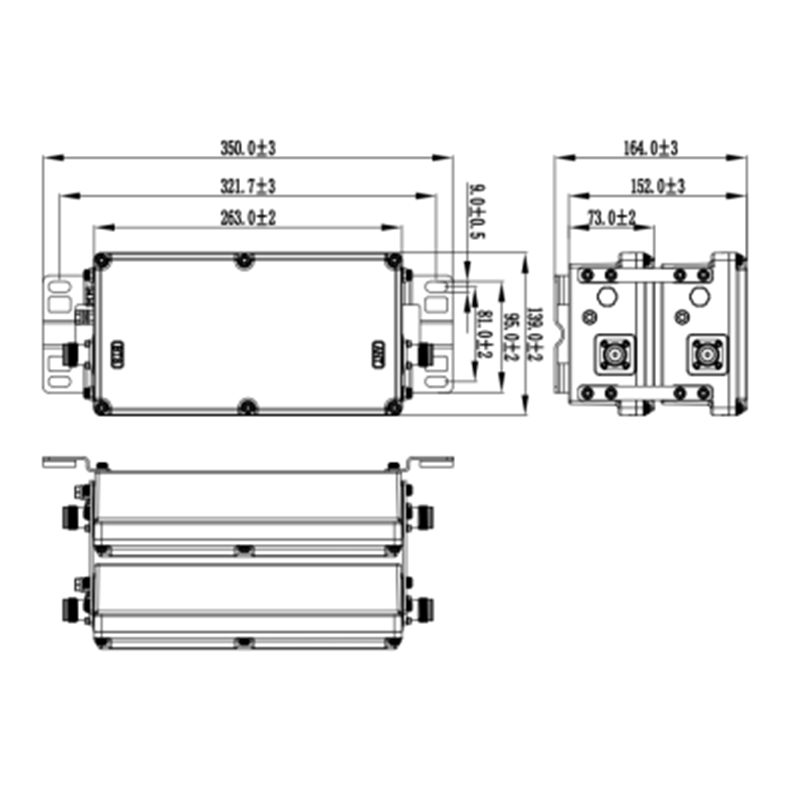

Durable Outdoor Filter with 8kA Lightning Protection 96332308
|
Electrical Specifications |
||
|
Type No. |
4.3-10 Female |
96332308 |
|
Frequency Band (MHz) |
814-879 |
|
|
Insertion Loss (dB) |
≤2.5dB@878-879MHz ≤0.9dB@877-878MHz ≤0.6dB@873-877MHz ≤0.35dB@814-873MHz |
|
|
Rejection (dB) |
≥27dB@880.1-890MHz |
|
|
Return Loss (dB) |
≤-19 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
|
|
DC/AISG Bypass |
Pass |
|
|
Input Power (W) |
≤80@878.5-879MHz ≤100@814-878.5MHz |
|
|
Impedance (Ω) |
50 |
|
|
Mechanical Specifications |
|
|
Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
263x139x152 |
|
Weight (including connectors and mounting bracket) (kg) |
6.0 |
|
Packing Size(mm) |
420x210x235 |
|
Color |
Light Gray |
|
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Filters the 814-879MHz band with exceptionally low insertion loss (as low as ≤0.35dB@814-873MHz).
Provides strong out-of-band rejection (≥27dB@880-890MHz) to minimize interference.
Supports DC/AISG bypass and handles moderate input power (≤100W, with derating at 878.5-879MHz).
Typical Application Scenarios
Public safety and private mobile radio (PMR) systems requiring reliable signal filtering.
Outdoor base stations and repeaters in demanding environments (IP67-rated, -40°C to +85°C storage).
Telecom infrastructure needing lightning surge protection (8kA; 8/20µs pulse).
Technical Features
Ultra-low PIM3 (-160dBc) ensures clean signal transmission in high-density RF environments.
Compact mechanical design (263x139x152mm) with flexible pole/wall mounting (Φ35-135mm clamps included).
Optimized performance across sub-bands (e.g., ≤0.6dB@873-877MHz) for tailored deployment needs.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
0~+45 |
|
Storage temperature range(°C) |
-40~+85 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
8kA; 8/20 μs pulse |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50801.5519050 |
Hose clamp |
