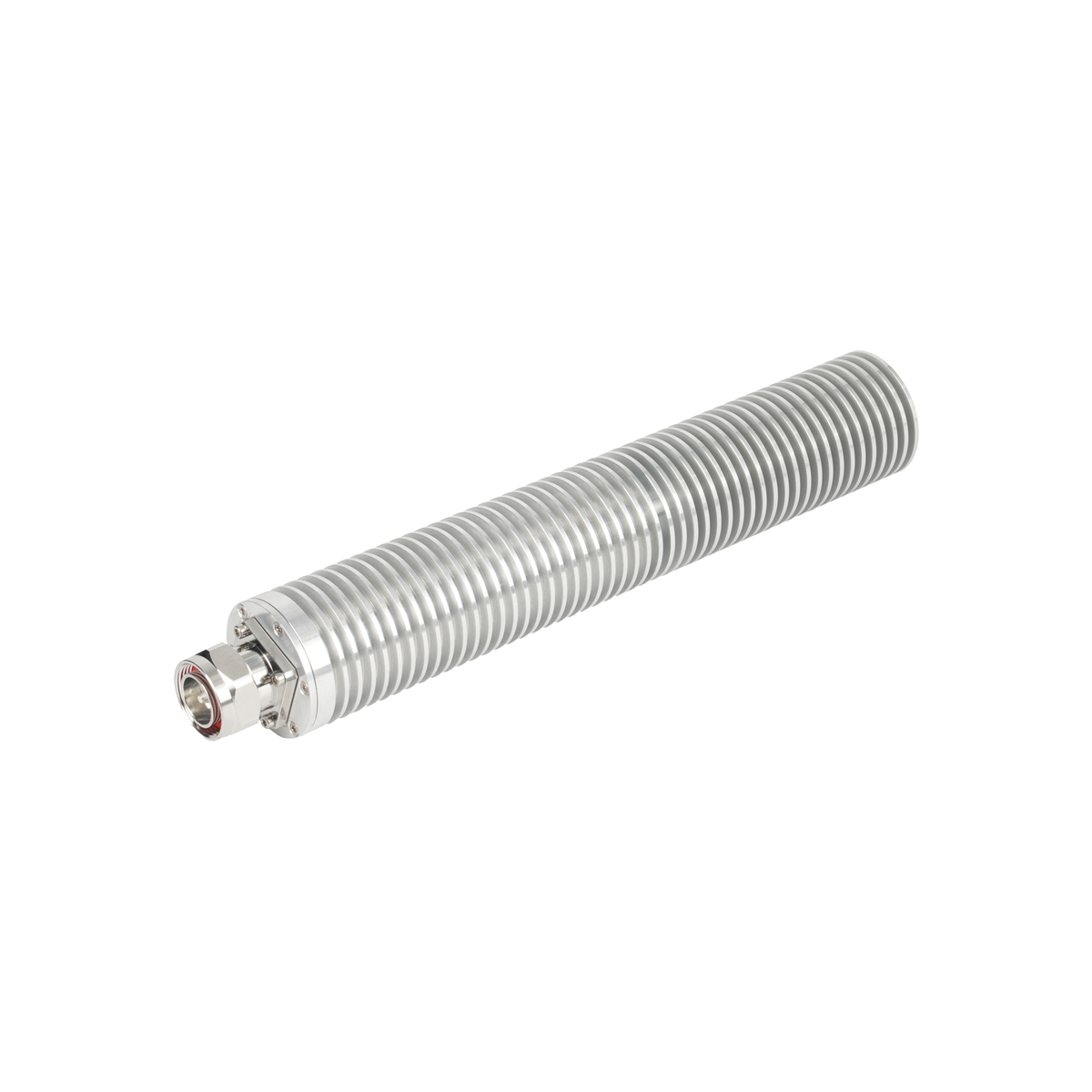

100W Equipment with 600-4000 Frequency Range terminal load 95450C17V52
|
Electrical Specifications |
||
|
Type No. |
7-16 Male |
95450C17V52 |
|
Input Power (W) |
100@25°C |
|
|
Frequency Range (MHz) |
600-4000 |
|
|
Return Loss (dB)/VSWR |
≤ 18/1.3:1 |
|
|
PIM3 (@2x33 dBm Carrier) (dBc) |
≤ -160@800M、900M、1800M、2100M、2600M |
|
|
Impedance (Ω) |
50 |
|
|
Mechanical Specifications |
|
|
Dimensions, HxWxD (excluding connectors and mounting bracke) (mm) |
¢ 54x305 |
|
Weight (including connectors and mounting bracket) (kg) |
1.2 |
|
Color |
Metal |
|
Mounting |
Plane |
Main Functions
Signal Termination: Absorbs 100W RF power in cellular frequency bands (600-4000MHz) to eliminate signal reflections.
Interference Control: Ensures ultra-low Passive Intermodulation Distortion (PIM3 ≤-160dBc @2x33dBm) for critical communication systems.
Impedance Stabilization: Maintains precise 50Ω impedance with high return loss (≤18dB / VSWR ≤1.3:1).
Typical Application Scenarios
Cellular Base Station Maintenance: Terminates unused ports during antenna testing/tuning across 800/900/1800/2100/2600MHz bands.
Outdoor DAS Components: Provides reliable termination for distributed antenna systems exposed to harsh weather (IP65-rated).
Field Testing Equipment: Serves as a rugged termination solution for portable analyzers in tower maintenance (-20°C to +95°C operation).
Technical Features
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-20 to +95 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65(Indoor and Outdoor) |
