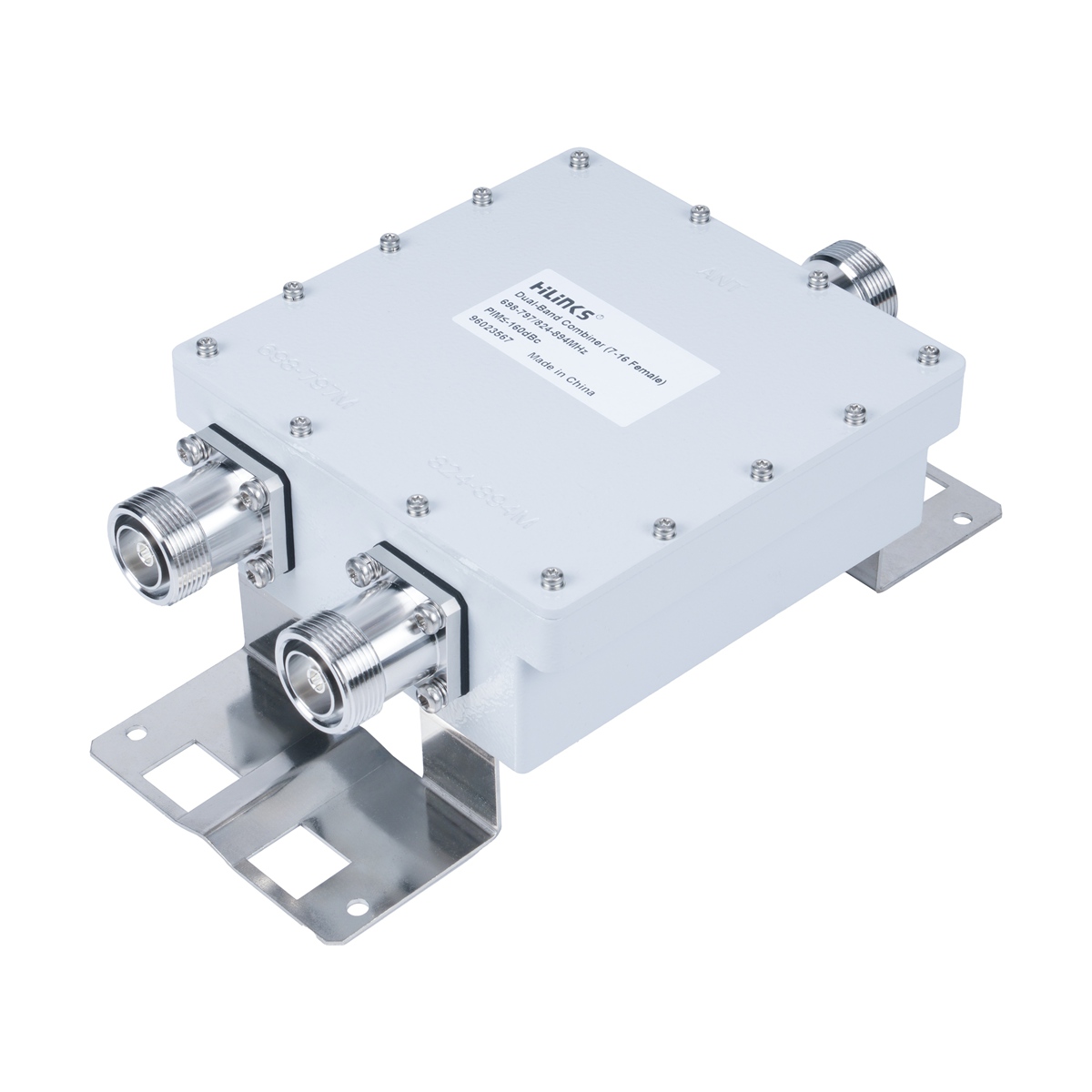

High-Isolation (≥53dB) Dual-Band Combiner System 96023567
Electrical Specifications
|
Electrical Specifications |
||
|
Type No. |
7-16 Female |
96023567 |
|
Frequency Range (MHz) |
Band1 Band2 |
698-797 824-894 |
|
Insertion Loss (dB) |
Port1 Port2 |
≤0.35 ≤0.35 |
|
Isolation (dB) |
Port1 Port2 |
≥53 ≥53 |
|
Return Loss (dB) |
≥20 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
|
|
DC/AISG Bypass |
Pass |
|
|
Input Power (W) |
≤500 |
|
|
Peak Power (W) |
≤2000 |
|
|
Impedance (Ω) |
50 |
|
Mechanical Specifications
|
Mechanical Specifications |
|
|
Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
147.8x144.8x58 |
|
Weight (including connectors and mounting bracket) (kg) |
2.0 |
|
Packing Size(mm) |
310x205x148 (6Pcs/box) |
|
Color |
Light Gray (customized) |
|
Mounting |
Pole (clamps included for Ф35-125mm pole) or Wall Mounted |
Main Functions
Dual-Band Signal Aggregation
Combines 698-797MHz and 824-894MHz frequency bands with ≤0.35dB insertion loss for efficient spectrum utilization
DC/AISG Power Pass-Through
Enables simultaneous signal combining and tower equipment power delivery (RET/TMA systems)
Surge Protection
Integrated 10kA lightning protection (8/20μs) for outdoor reliability
Typical Application Scenarios
Multi-Operator Base Station Sharing
Facilitates spectrum sharing between carriers in co-location scenarios
LTE Network Expansion
Supports band 12/13/14 (700MHz) and band 5/26 (850MHz) deployments
Extreme Environment Installations
IP67-rated for operation in temperatures from -40°C to +65°C
Technical Features
High Power Capacity
Handles 500W continuous/2000W peak power with 7-16 connectors
Superior Isolation
≥53dB inter-port isolation prevents signal interference
Compact Design
144.8×58mm chassis (2.0kg) enables space-constrained deployments
Key Differentiators
Industry-leading PIM3 performance (≤-160dBc)
Includes pole mounting hardware (Φ35-125mm)
Packaged 6 units/box for efficient logistics
Environmental Specifications
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
10kA; 8/20 μs pulse |
Accessories (order separately)
Accessories (order separately) | |
Type No. |
Description |
50801.0618100 |
Hose clamp |
