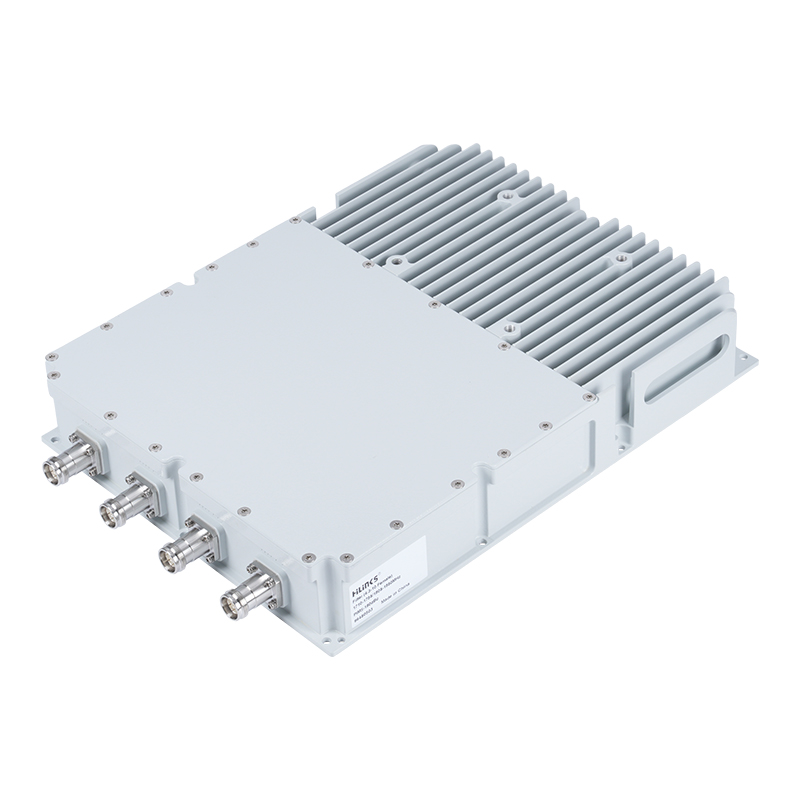

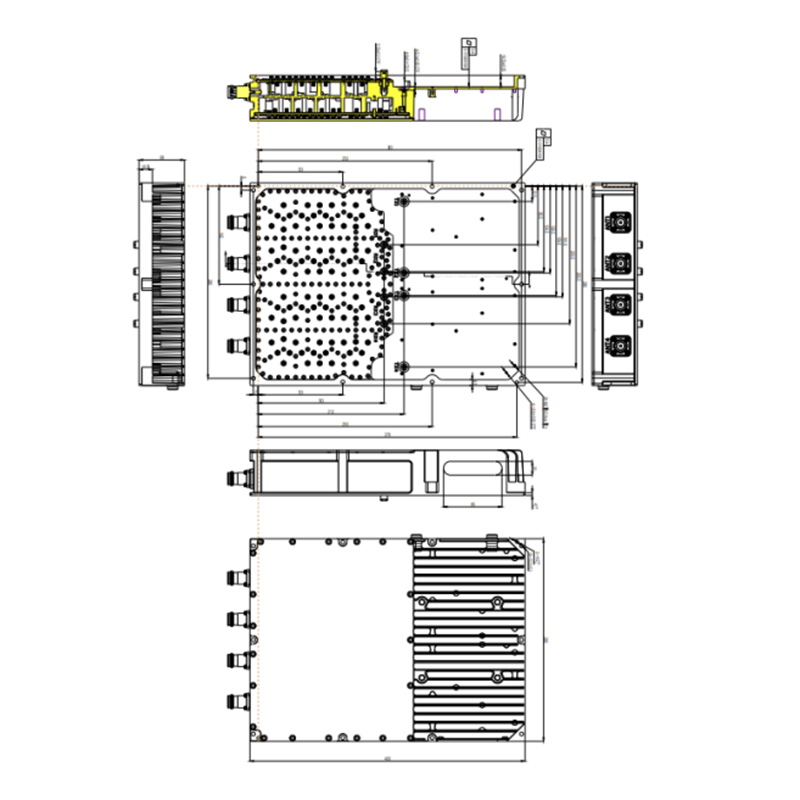

High-Isolation RF Filter with Ultra-Low PIM 96480503

Electrical Specifications

Type No.

96480503

RX

TX

Frequency Range (MHz)

1710-1785

1805-1880

Insertion Loss (dB)

≥1.18@1710-1785MHz,

≥1.07@1710-1785MHz,

≥1.05@1710-1785MHz,

≥0.95@1710-1785MHz,

≥0.9@1715-1780MHz,

≥0.8@1715-1780MHz,

≥1.5@1805-1880MHz,

≥1.4@1805-1880MHz,

≥1.3@1805-1880MHz,

≥1.2@1805-1880MHz,

≥1.1@1810-1875MHz,

≥1.0@1810-1875MHz,

Rejection (dB)

≥85@1-1559MHz,

≥68@1559-1630MHz,

≥20@1630-1690MHz,

≥86@1805-1880MHz,

≥85@1880-1995MHz,

≥75@1995-2690MHz,

≥65@2690-3800MHz,

≥45@3800-4200MHz,

≥65@1-1710MHz,

≥105@1710-1785MHz,

≥18@1785-1795MHz,

≥18@1890-1900MHz,

≥48@1900-1920MHz,

≥76@1920-1980MHz,

≥65@1980-2750MHz,

≥70@2750-3600MHz,

≥90@3600-3800MHz,

≥30@3800-5430MHz,

≥40@5430-5610MHz,

≥25@5610-9350MHz,

≥10@9350-12750MHz,

Return Loss (dB)

≥16

Isolation(dB)

≥105

≥86

Branch Isolation(dB)

≥50

≥60

Intermodulation

≤-150dBc@2x20W

Input Power (W)

52

Peak Power (W)

48.8

Impedance (Ω)

50
