High-Performance Dual-Band Filter for Indoor and Outdoor Use 96322027
|
Electrical Specifications |
||
|
Type No. |
4.3-10 Female |
96322027 |
|
Frequency Band (MHz) |
2500-2540&2620-2660 |
|
|
Insertion Loss (dB) |
≤1.5 |
|
|
Rejection (dB) |
≥30dB@2545-2615MHz |
|
|
Return Loss (dB) |
≤-20.5 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
|
|
DC/AISG Bypass |
Pass |
|
|
Input Power (W) |
≤150 |
|
|
Peak Power (W) |
≤1000 |
|
|
Impedance (Ω) |
50 |
|
|

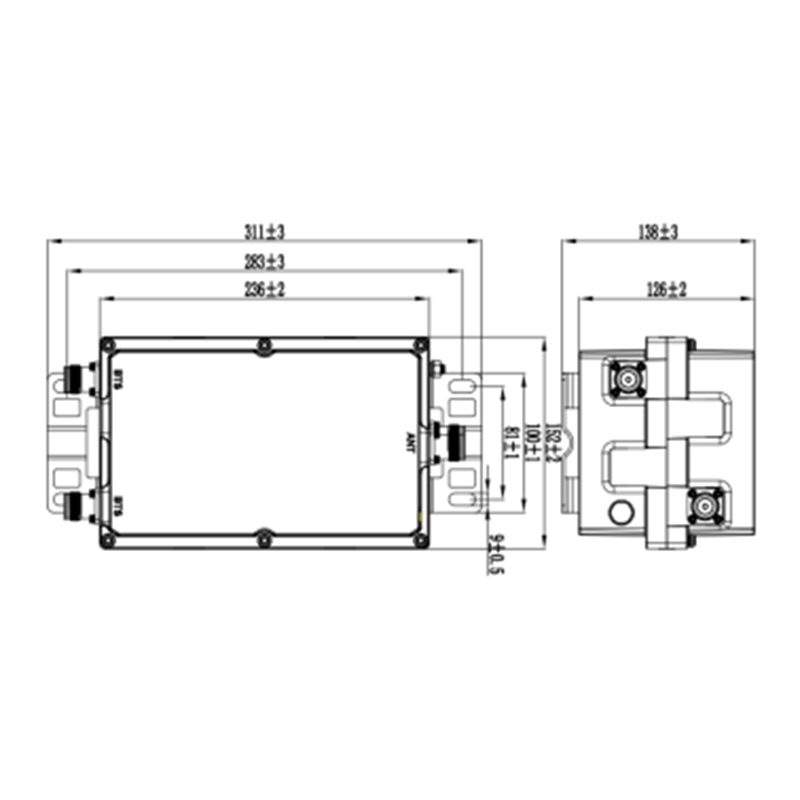

Mechanical Specifications |
|
|
Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
247x147x50 |
|
Weight (including connectors and mounting bracket) (kg) |
2.32 |
|
Packing Size(mm) |
390x200x130 (4Pce/box) |
|
Color |
Light Gray (Customized) |
|
Mounting |
Pole (clamps included for Ф35-125mm pole) or Wall Mounted |
Main Functions
Targeted RF Filtering: Precisely passes signals within two 5G mid-bands (2500-2540MHz and 2620-2660MHz) while minimizing insertion loss (≤1.5dB), ensuring optimal throughput for BRS/EBS spectrum services.
Interference Mitigation: Actively blocks adjacent frequencies with ≥30dB rejection in the 254.5-2615MHz gap band, preventing signal overlap and maintaining channel integrity in dense deployments.
Infrastructure Protection: Integrates lightning surge protection (8kA; 8/20µs pulse) and DC/AISG signal pass-through, safeguarding base station equipment from electrical damage while supporting remote antenna control.
Typical Application Scenarios
5G NR Base Stations: Critical for BRS/EBS spectrum deployments (e.g., U.S. 2.5GHz band), isolating 5G signals from interference in macro/small cell sites.
Co-located Multi-Operator Sites: Used in shared tower infrastructure to prevent cross-operator interference between adjacent bands (e.g., blocking 2600MHz LTE from 5G NR bands).
Harsh Environment RF Systems: Deployed in outdoor cabinets or pole-mounted units (IP67-rated) for industrial IoT, smart cities, or rural broadband requiring resilience to dust, moisture, and extreme temperatures (-40°C to +65°C).
Technical Features
Enhanced RF Performance: Delivers low insertion loss (≤1.5dB), high rejection (≥30dB@254.5-2615MHz), and ultra-low PIM (-160dBc) for interference-free 5G signal transmission.
Robust Power Handling: Supports 150W continuous input and 1000W peak power (4.3-10 Female connectors), ensuring reliability during traffic spikes or emergency scenarios.
Rugged Compact Design: Features IP67 environmental sealing, wide operational temperature range, and flexible pole/wall mounting (clamps for Φ35-125mm included). Space-optimized dimensions (247x60mm, 2.32kg) and efficient packaging (4 units/box) simplify deployment.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 |
|
Lightning Protection |
8kA; 8/20 μs pulse |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50801.0619100 |
Hose clamp |
