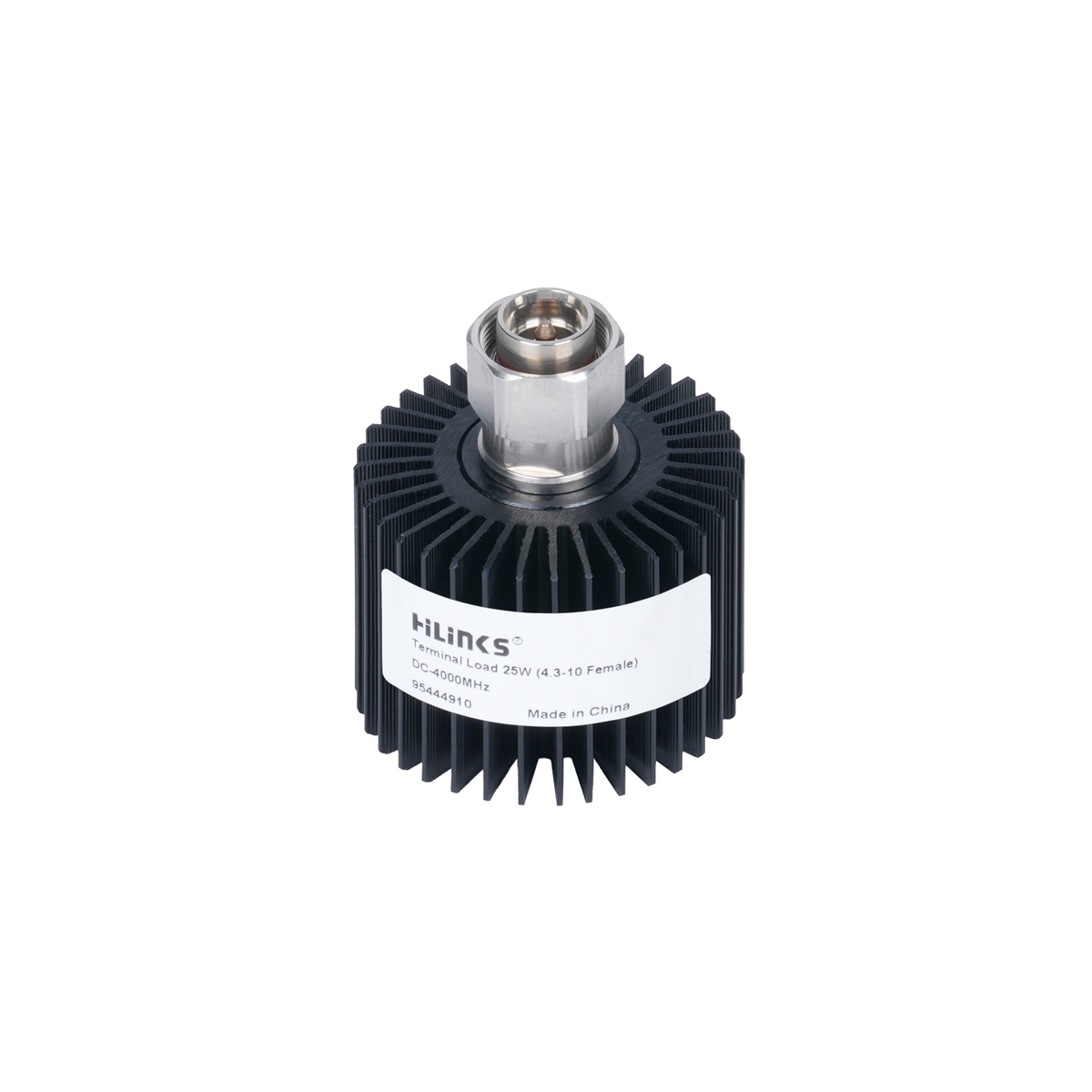

High-Power 10-25W RF Load Terminator 9544XXX0
|
Electrical Specifications |
|||
|
Product No. |
N Female |
95440890 |
95444890 |
|
N Male |
95440900 |
95444900 |
|
|
4.3-10 Female |
95440910 |
95444910 |
|
|
4.3-10 Male |
95440920 |
95444920 |
|
|
7-16 Female |
95440930 |
95444930 |
|
|
7-16 Male |
95440940 |
95444940 |
|
|
Input Power (W) |
10 |
25 |
|
|
Frequency Range (MHz) |
DC-4000 |
||
|
Return Loss (dB) |
≥21 |
||
|
PIM3 (dBc) |
≤-105, 10W/25W (@2x33 dBm Carrier) |
||
|
Impedance (Ω) |
50 |
||
|
Mechanical Specifications |
||
|

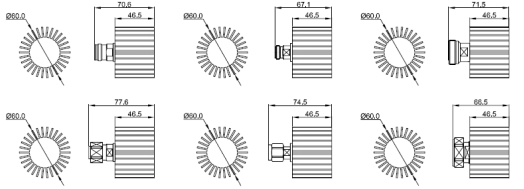

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
N Female/Male |
￠60x46.5 |
|
4.3-10 Female/ Male |
￠60x46.5 |
|
|
7-16 Female/ Male |
￠60x46.5 |
|
|
Weight (including connectors and mounting bracket) (kg) |
N Female/Male |
0.3 |
|
4.3-10 Female/ Male |
0.3 |
|
|
7-16 Female/ Male |
0.35 |
|
|
Packing Size(mm) |
160x70x70 (50Pcs/box) |
|
|
Color |
Black (customized) |
|
|
Mounting |
Wall Mounted |
|
Main Functions
Terminates RF Signals: Provides a precise 50-ohm termination point for RF transmission lines across a wide DC to 4000 MHz frequency range, preventing signal reflections.
Dissipates High Power: Safely absorbs and dissipates up to 200 watts of continuous RF power generated by transmitters or amplifiers during operation or testing.
Ensures System Integrity: Protects sensitive RF equipment by providing a matched load, minimizing damaging reflected power and ensuring accurate system measurements.
Typical Application Scenarios
Base Station Testing & Maintenance: Used for terminating RF ports during testing, tuning, and maintenance of cellular base station amplifiers and combiners.
Distributed Antenna Systems (DAS): Employed within indoor and outdoor DAS installations to terminate unused ports on couplers, taps, and power dividers.
Laboratory & Production Testing: Serves as a reliable, high-power load for testing RF power amplifiers, transmitters, and other RF components in development, validation, and manufacturing environments.
Technical Features
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
