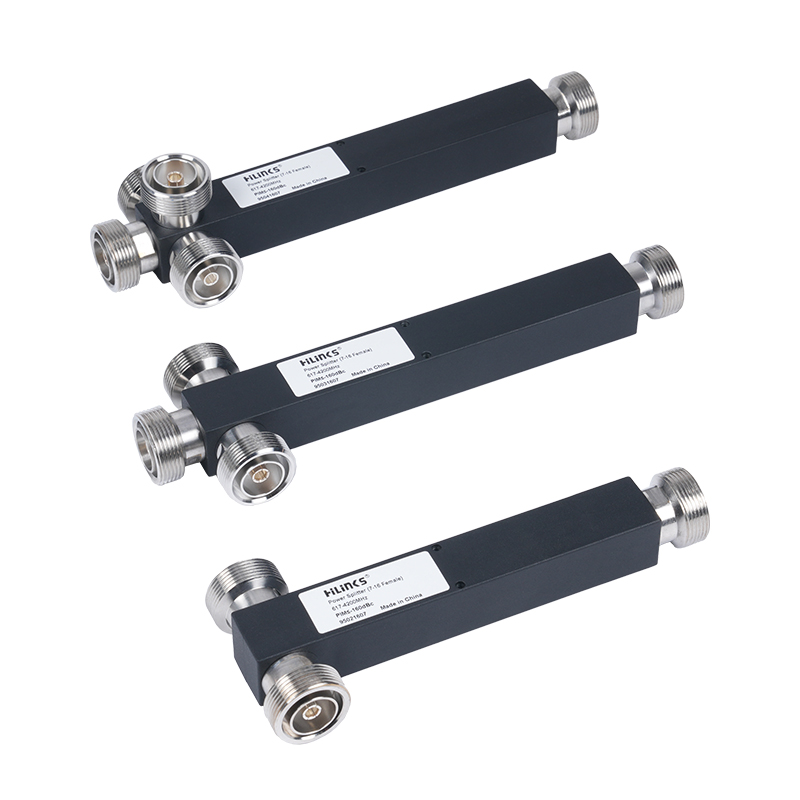

High-Power Circular Tube RF Divider 950X160X
|
Electrical Specifications |
|||||
|
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
95021603 |
95031603 |
95041603 |
|
≤-155 |
95021605 |
95031605 |
95041605 |
||
|
≤-160 |
95021607 |
95031607 |
95041607 |
||
|
Frequency Range (MHz) |
617-4200 |
||||
|
For connecting…antennas |
2 Way |
3 Way |
4 Way |
||
|
Distribution Loss(dB) |
3.0 |
4.8 |
6.0 |
||
|
Insertion Loss (dB) |
≤0.3 |
≤0.4 |
≤0.5 |
||
|
Return Loss (dB) |
≥19 |
||||
|
PIM Test Bands |
900M/1800M/2100M/2600M |
||||
|
Input Power (W) |
≤500 |
||||
|
Peak Power (W) |
≤2000 |
||||
|
Impedance (Ω) |
50 |
||||
|
Mechanical Specifications |
|||
|

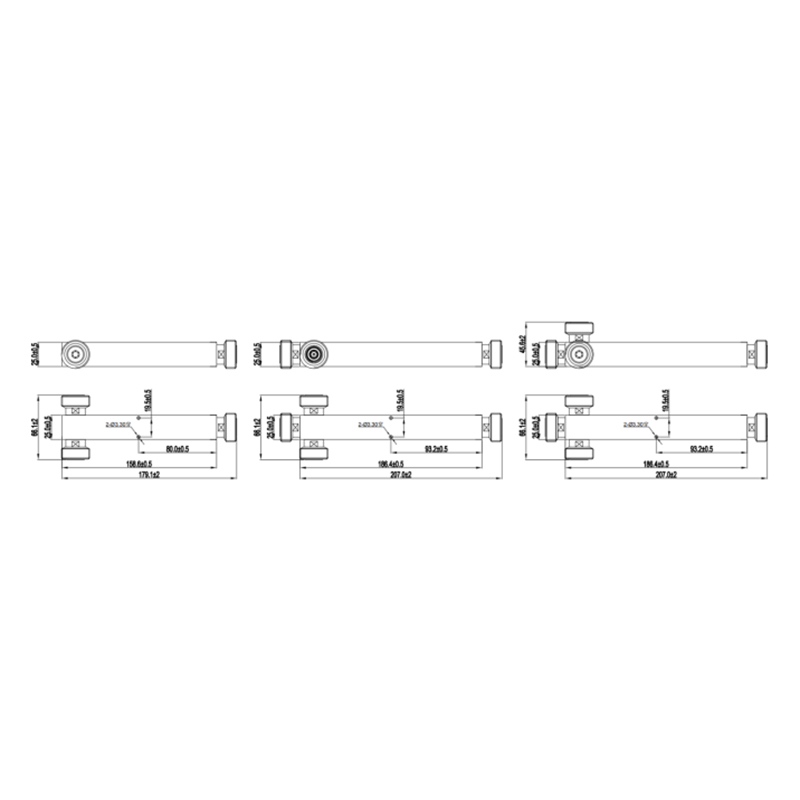

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
158.6x25x25 |
186.4x25x25 |
186.4x25x25 |
|
Weight (including connectors and mounting bracket) (kg) |
0.43 |
0.51 |
0.6 |
|
Packing Size(mm) |
200x75x40 |
230x75x40 |
230x75x60 |
|
Connector Type |
7-16 Female (Twist head) |
||
|
Coupling Nut Proof Torque |
≤4.5N.m |
||
|
Color |
Light Gray (Customizable) |
||
|
Mounting |
Wall Mounted |
||
Main Functions
High-Power Signal Distribution: Splits RF input signals (≤500W continuous, ≤2000W peak) into 2, 3, or 4 outputs with defined distribution loss (3.0 dB/2-way, 6.0 dB/4-way).
PIM-Critical Signal Integrity: Ensures ultra-low Passive Intermodulation Distortion (PIM3 ≤ -160dBc) for interference-free transmission in multi-carrier systems.
Impedance Optimization: Maintains 50-ohm impedance matching across all ports to minimize reflections (Return Loss ≥19 dB) and maximize power transfer efficiency.
Typical Application Scenarios
Broadcast & High-Power Telecom: Supports FM/TV transmitters, macro cell towers, and military communications requiring extreme power handling (2000W peak).
Outdoor Critical Infrastructure: Deploys in harsh environments (IP65-rated) for airports, ports, or industrial sites needing robust 7/16 connectors and wide bandwidth (617-4200MHz).
Multi-Operator High-Density Networks: Prevents cross-system interference with ≤-160dBc PIM in shared RF environments (tested on 900M/1800M/2100M/2600M bands).
Technical Features
7/16 Connector & Unmatched Power: Uses 7/16 Female twist-head connectors (≤4.5N.m torque) with industry-leading power specs (500W continuous/2000W peak).
Broadband Efficiency: Combines ultra-low insertion loss (≤0.3 dB to ≤0.5 dB), wide frequency coverage (617-4200MHz), and PIM stability for 4G/5G bands.
Ruggedized Design: Compact circular tube housing (158.6×25×25mm, 0.43kg for 2-way), IP65 protection for indoor/outdoor use, and operational from -25°C to +65°C at ≤95% humidity.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-25 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65(Indoor and Outdoor) |
