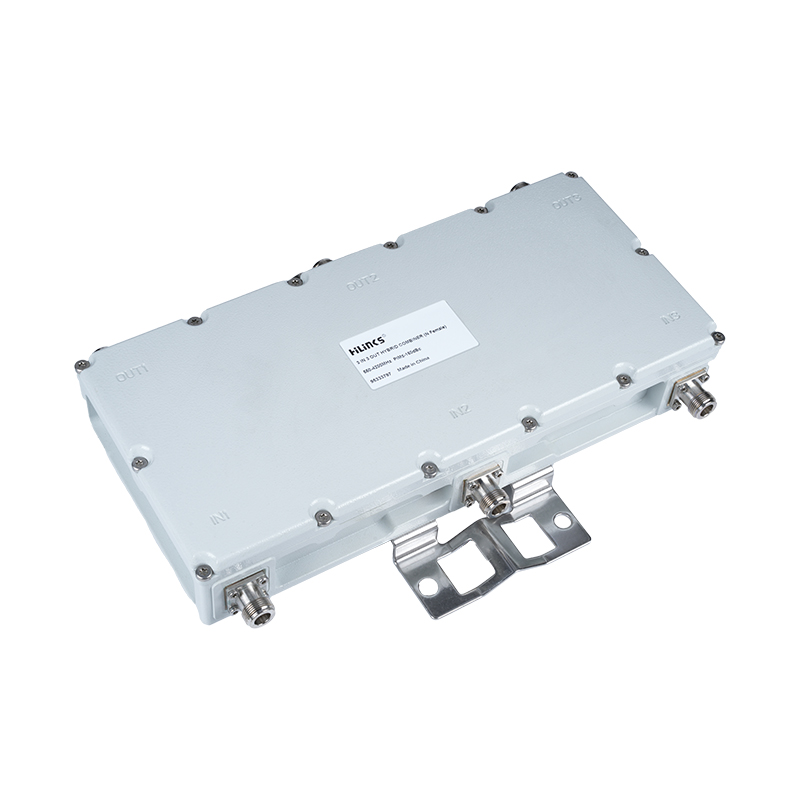

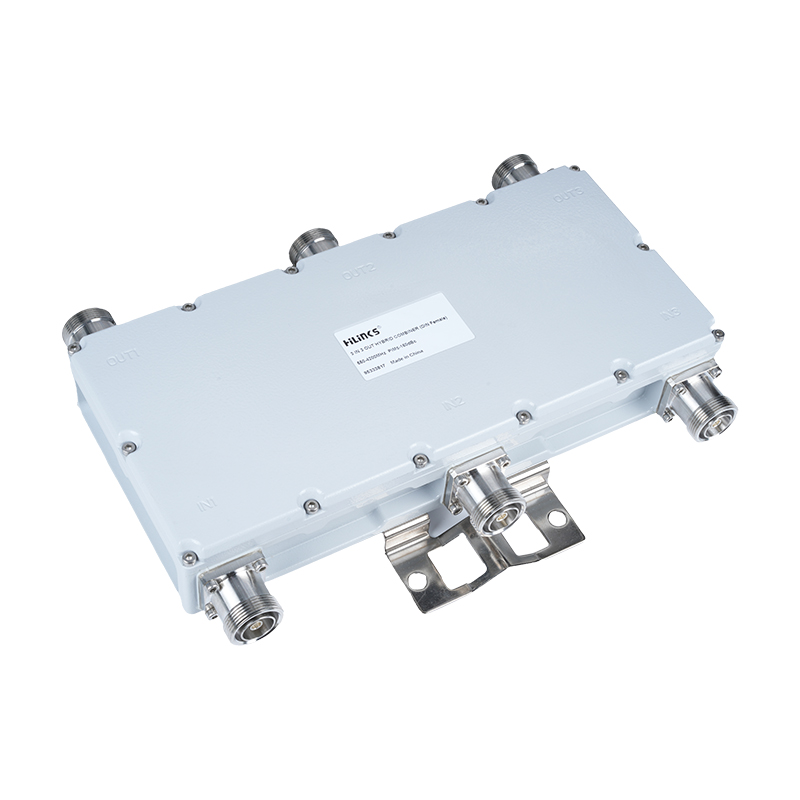

High-Power Low-PIM RF Hybrid Combiner for 5G Networks 95333XXX
|
Electrical Specifications |
|||||
|
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
95333793 |
95333803 |
95333813 |
|
≤-155 |
95333795 |
95333805 |
95333815 |
||
|
≤-160 |
95333797 |
95333807 |
95333817 |
||
|
Frequency Range (MHz) |
550-4200 |
||||
|
Insertion Loss (dB) |
5.1±1.0 |
||||
|
Isolation (dB) |
>25 |
||||
|
VSWR (dB) |
< 1.25 |
||||
|
Input Power (W) |
<300 |
<300 |
<500 |
||
|
Peak Power (W) |
<800 |
<1500 |
<2000 |
||
|
Impedance (Ω) |
50 |
||||
|
Mechanical Specifications |
|||
|

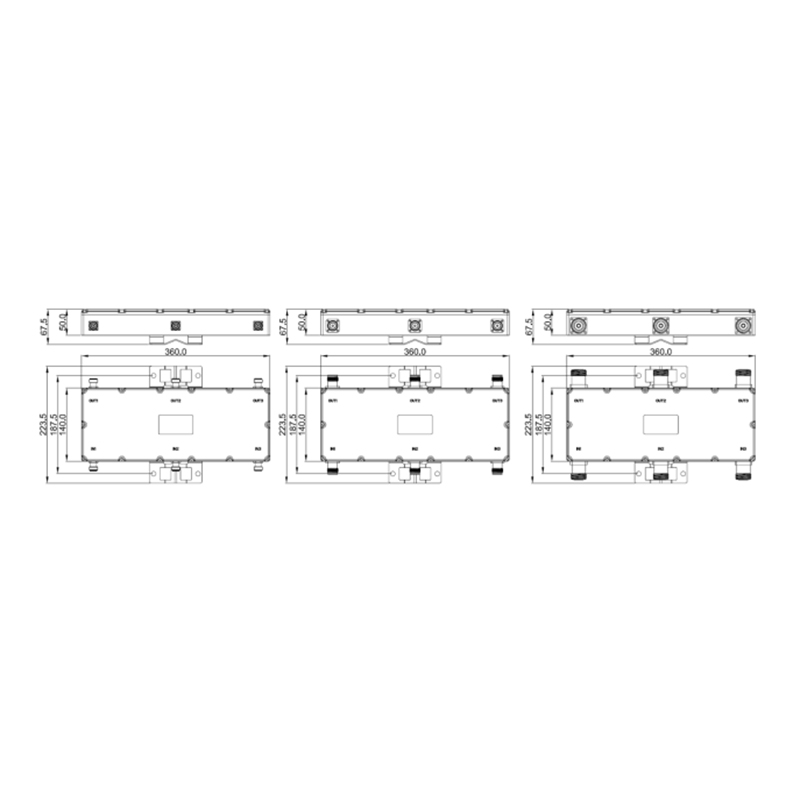

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
360x140x50 |
||
|
Weight (including connectors and mounting bracket) (kg) |
4.8 |
5.0 |
5.2 |
|
Connector Type |
N Female |
4.3-10 Female |
7-16 Female |
|
Packing Size(mm) |
420x270x125 |
||
|
Color |
Light Gray (Customized) |
||
|
Mounting |
Wall Mounted |
||
Main Functions
Multi-Signal Combining: Merges multiple RF inputs into a single output with controlled insertion loss (5.1±1.0 dB) for spectrum optimization.
Interference Prevention: Ensures signal integrity through high isolation (>25 dB) and ultra-low PIM (≤-160dBc), eliminating cross-carrier distortion.
Power Management: Handles high-input signals (≤500W continuous/≤2000W peak) while maintaining 50-ohm impedance and low VSWR (<1.25).
Typical Application Scenarios
Macro Cell Tower Systems: Combines multi-band signals (550-4200MHz) in high-power cellular sites using 7/16 connectors for 2000W peak loads.
Broadcast Transmission Facilities: Supports FM/TV broadcasters requiring wide bandwidth, high isolation, and robust 4.3-10/N connector options.
Industrial Communication Hubs: Deploys in IP65-rated outdoor environments (e.g., ports, railroads) with extreme temperature resilience (-40°C to +65°C).
Technical Features
Connector-Specific Power Handling: Three variants: N Female (≤800W peak), 4.3-10 Female (≤1500W peak), and 7/16 Female (≤2000W peak).
Broadband PIM Control: Ultra-low distortion (≤-160dBc @2x43dBm) across 550-4200MHz, tested for 4G/5G bands.
Industrial-Grade Build: Large rugged chassis (360×140×50mm, ≤5.2kg), wall-mountable, IP65 protection, and -40°C to +65°C operational range.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
