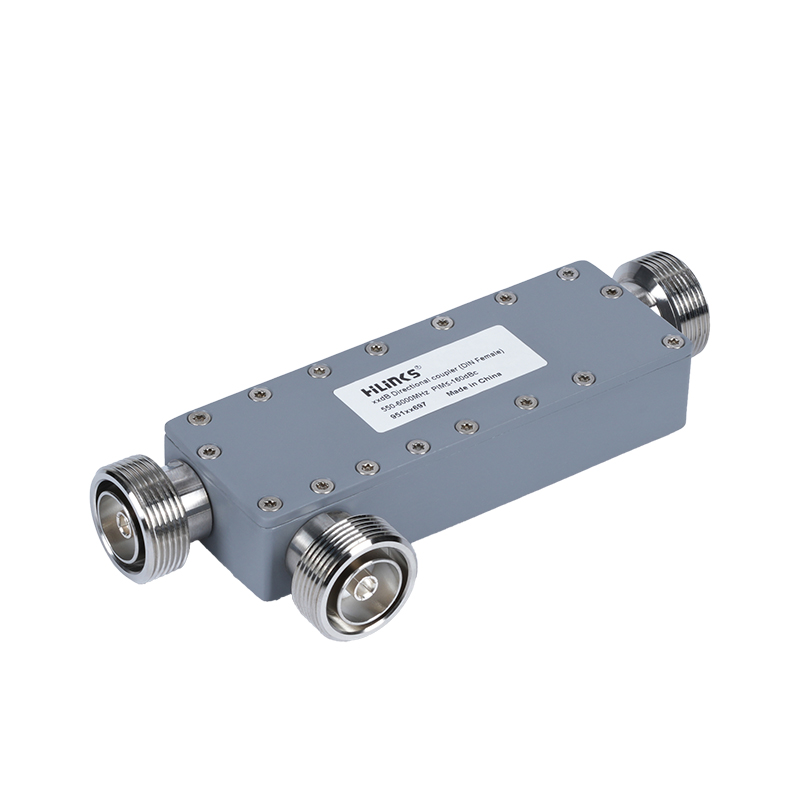

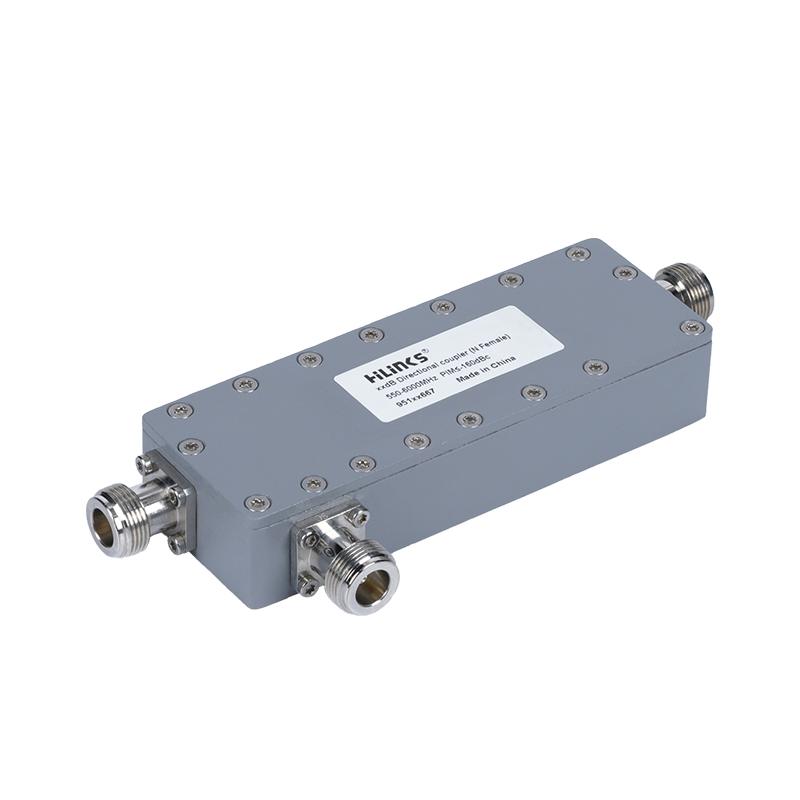

High-Power RF Coupler with Multi-Connector Options 951XX6X7
|
Electrical Specifications |
||||||
|
Type No. |
N Female |
95105667 |
95106667 |
95107667 |
95108667 |
95110667 |
|
4.3-10 Female |
95105687 |
95106687 |
95107687 |
95108687 |
95110687 |
|
|
7-16 Female |
95105697 |
95106697 |
95107697 |
95108697 |
95110697 |
|
|
Coupling Value (dB) |
5 |
6 |
7 |
8 |
10 |
|
|
Coupling Tolerance (dB) |
±1.0 |
±1.0 |
±1.0 |
±1.2 |
±1.2 |
|
|
Insertion Loss (dB) |
< 2.4 |
< 1.8 |
< 1.6 |
< 1.2 |
< 0.8 |
|
|
Isolation (dB) |
> 23 |
> 24 |
> 25 |
> 26 |
> 28 |
|
|
Type No. |
N Female |
95113667 |
95115667 |
95120667 |
95130667 |
|
|
4.3-10 Female |
95113687 |
95115687 |
95120687 |
95130687 |
||
|
7-16 Female |
95113697 |
95115697 |
95120697 |
95130697 |
||
|
Coupling Value (dB) |
13 |
15 |
20 |
30 |
||
|
Coupling Tolerance (dB) |
±1.3 |
±1.3 |
±1.5 |
±1.5 |
||
|
Insertion Loss (dB) |
< 0.5 |
< 0.4 |
< 0.3 |
< 0.3 |
||
|
Isolation (dB) |
> 31 |
> 33 |
> 38 |
> 48 |
||
|
Frequency Range (MHz) |
550-6000 |
|||||
|
Directivity(dB) |
≥18@550-2700MHz, ≥18@2700-6000MHz |
|||||
|
Return Loss (dB) |
≥19@550-2700MHz, ≥19@2700-6000MHz |
|||||
|
PIM3 (@2x43 dBm Carrier) (dBc) |
< -160 |
|||||
|
Input Power (W) |
< 300 (N&4.3-10 Female), < 500 (7-16 Female) |
|||||
|
Peak Power (W) |
< 800 (N Female), < 1500 (4.3-10 Female), < 2000 (7-16 Female) |
|||||
|
Impedance (Ω) |
50 |
|||||
|
Mechanical Specifications |
|
|

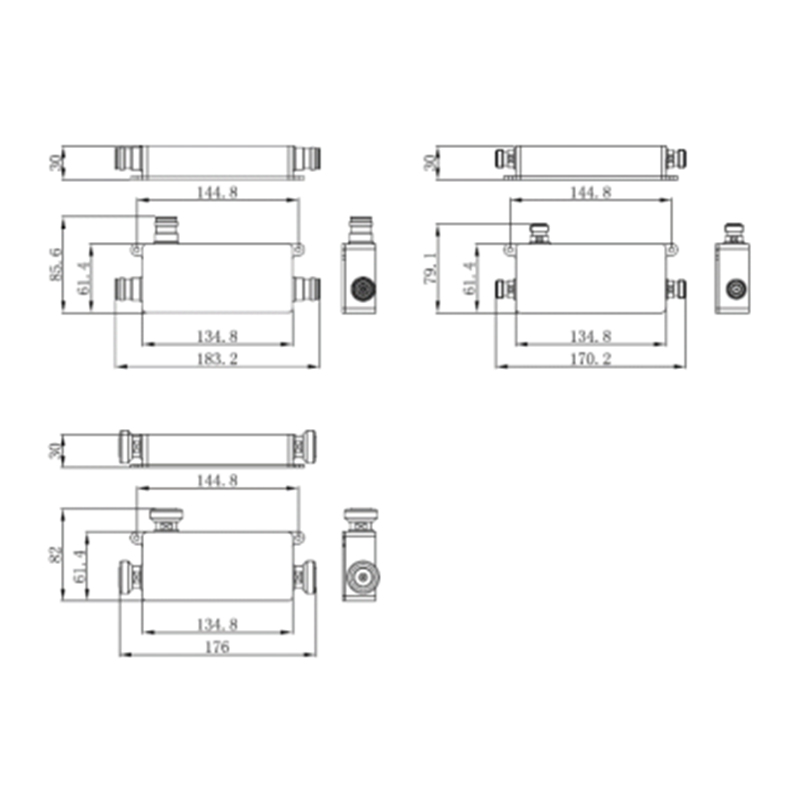

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
134.8x61.4x30 |
|
Weight (including connectors and mounting bracket) (kg) |
0.55 (N Female) 0.60(4.3-10 Female) 0.67(7-16 Female) |
|
Packing Size(mm) |
220x120x80 (24Pcs/box) |
|
Color |
Light Gray (Customizable) |
|
Mounting |
Wall Mounted |
Main Functions
Provides precise signal coupling from 5dB to 30dB across an ultra-wide 550-6000MHz range.
Ensures ultra-low passive intermodulation (PIM < -160dBc) for critical signal integrity.
Supports high-power applications (up to 2000W peak) with N/4.3-10/7-16 connector options.
Typical Application Scenarios
5G NR and mmWave communication infrastructure.
Satellite and microwave transmission systems.
Advanced test & measurement setups for wideband signals.
Technical Features
Extended frequency coverage (550-6000MHz) with consistent directivity (≥18dB).
Ruggedized design (IP65) with compact dimensions (134.8×61.4×30mm) for dense deployments.
Operates in extreme environments (-35°C to +85°C) with ≤95% humidity tolerance.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-35 to +85 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
