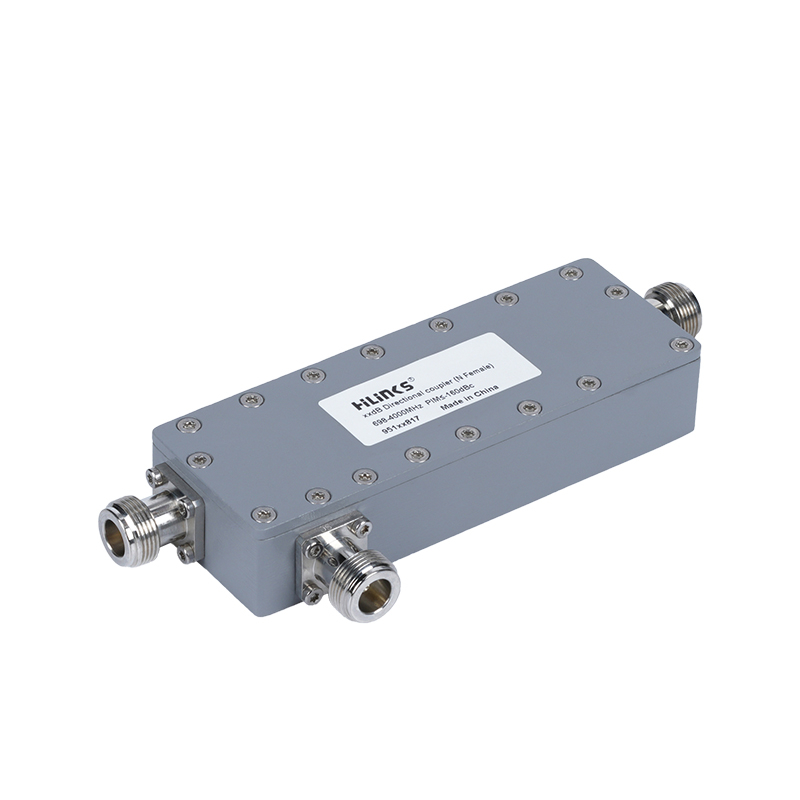

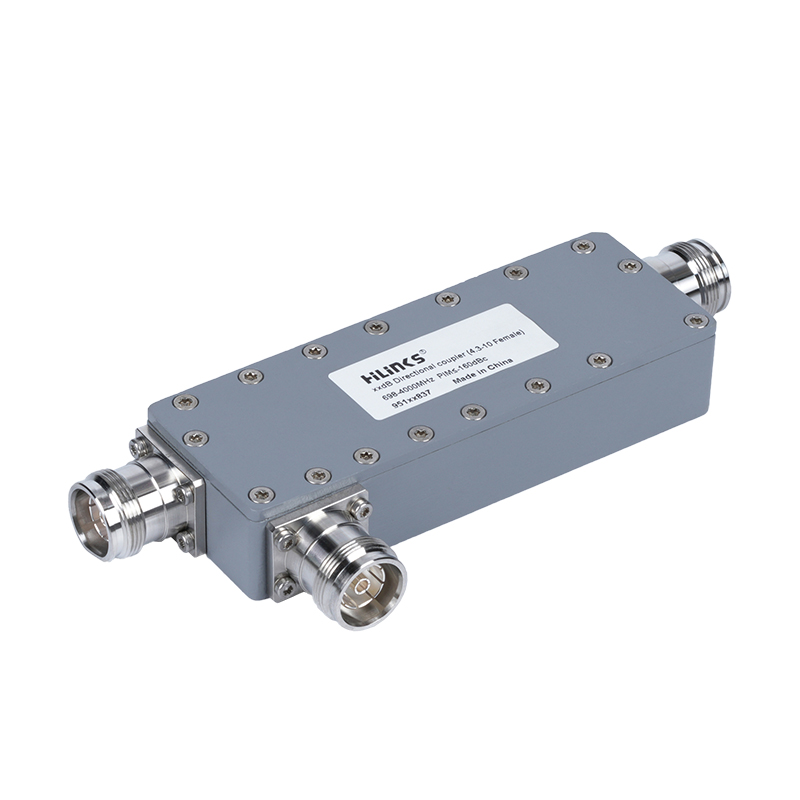

High-Precision RF Coupler with Flange Connectors 951XX8X7
|
Electrical Specifications |
||||||
|
Type No. |
N Female |
95105817 |
95106817 |
95107817 |
95108817 |
95110817 |
|
4.3-10 Female |
95105837 |
95106837 |
95107837 |
95108837 |
95110837 |
|
|
Coupling Value (dB) |
5 |
6 |
7 |
8 |
10 |
|
|
Coupling Tolerance (dB) |
±0.8 |
±0.8 |
±0.8 |
±0.8 |
±1.0 |
|
|
Insertion Loss (dB) |
< 2.15 |
< 1.76 |
< 1.47 |
< 1.15 |
< 0.96 |
|
|
Isolation (dB) |
> 23 |
> 24 |
> 25 |
>26 |
> 28 |
|
|
Type No. |
N Female |
95113817 |
95115817 |
95120817 |
||
|
4.3-10 Female |
95113837 |
95115837 |
95120837 |
|||
|
7/16 Female |
95130857 |
95140857 |
||||
|
Coupling Value (dB) |
13 |
15 |
20 |
30 |
40 |
|
|
Coupling Tolerance (dB) |
±1.0 |
±1.0 |
±1.0 |
±1.5 |
±1.5 |
|
|
Insertion Loss (dB) |
< 0.6 |
< 0.44 |
< 0.34 |
< 0.3 |
< 0.3 |
|
|
Isolation (dB) |
> 31 |
> 33 |
> 38 |
> 48 |
> 55 |
|
|
Frequency Range (MHz) |
698-4000 |
|||||
|
Return Loss (dB) |
≥19 |
|||||
|
PIM3 (@2x43 dBm Carrier) (dBc) |
< -160 |
|||||
|
Input Power (W) |
< 300(N Female&4.3-10), < 500(7-16 Female) |
|||||
|
Peak Power (W) |
< 800(N Female), < 1500 (4.3-10 Female), < 2000 (7-16 Female) |
|||||
|
Impedance (Ω) |
50 |
|||||
Main Functions
Provides accurate signal coupling from 5dB to 40dB across 698-4000MHz range
Ensures ultra-low passive intermodulation (PIM < -160dBc) for signal integrity
Supports high power handling (up to 2000W peak) with N/4.3-10/7-16 connector options
Typical Application Scenarios
4G LTE and 5G base station deployments
Distributed antenna systems (DAS) for in-building coverage
RF test and measurement equipment
Technical Features

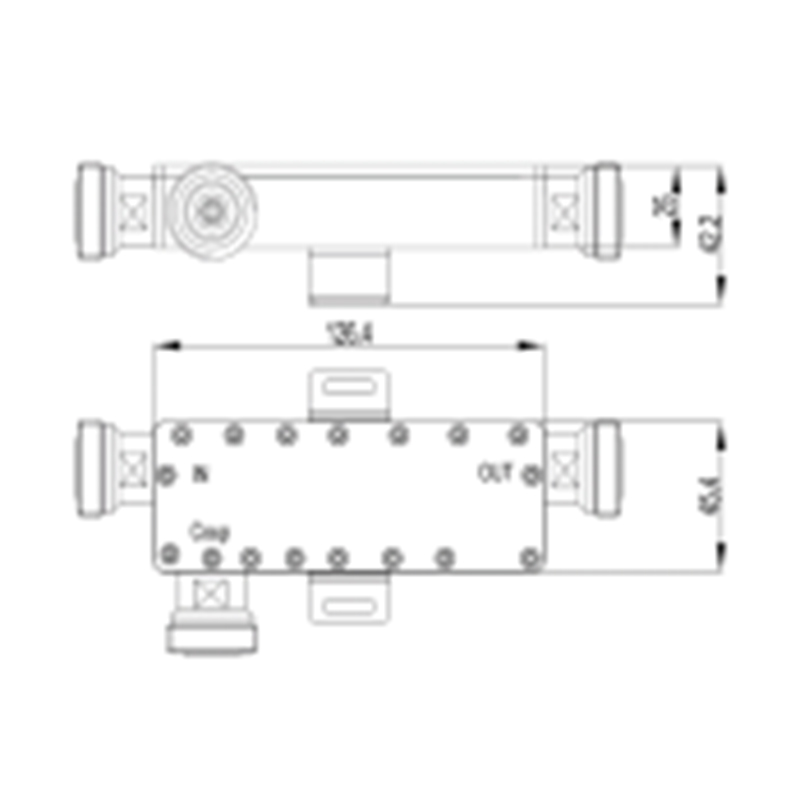

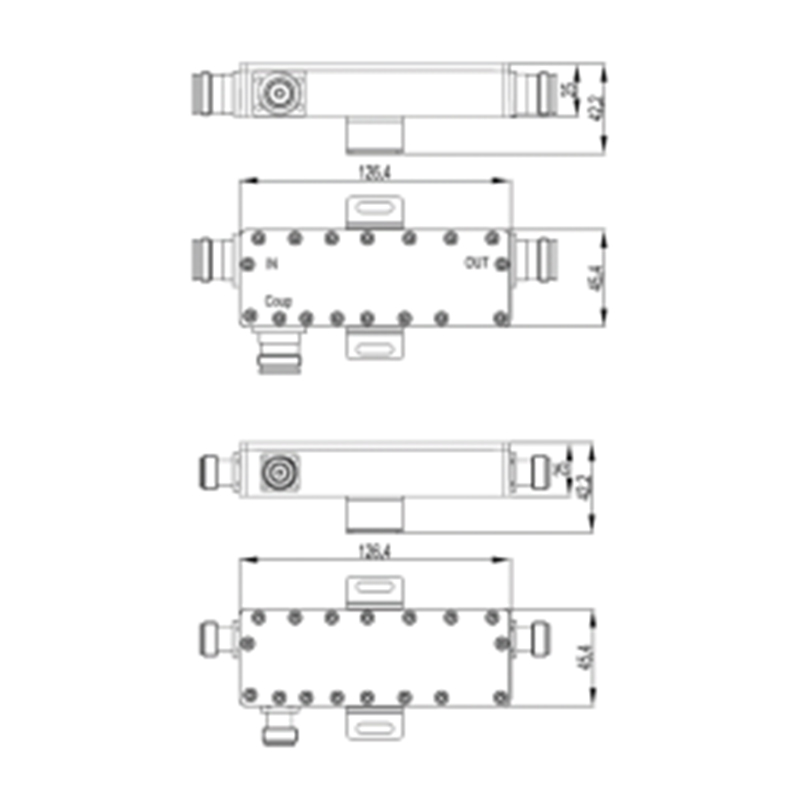

Compact design (126.4×45.4×25mm) with wall-mount capability
Excellent isolation (>23dB) and return loss (≥19dB) characteristics
Rugged IP65-rated construction for harsh environments (-35°C to +85°C)
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-35 to +85 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
30505.0008155 |
Bracket |
|
50503.2506100 |
Screw |
