Power Splitter

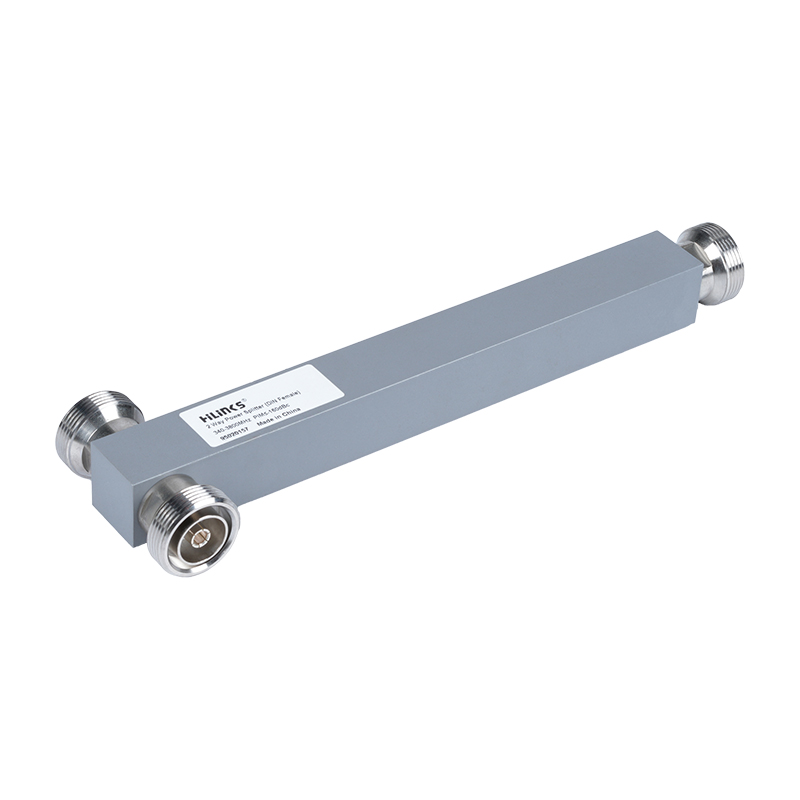

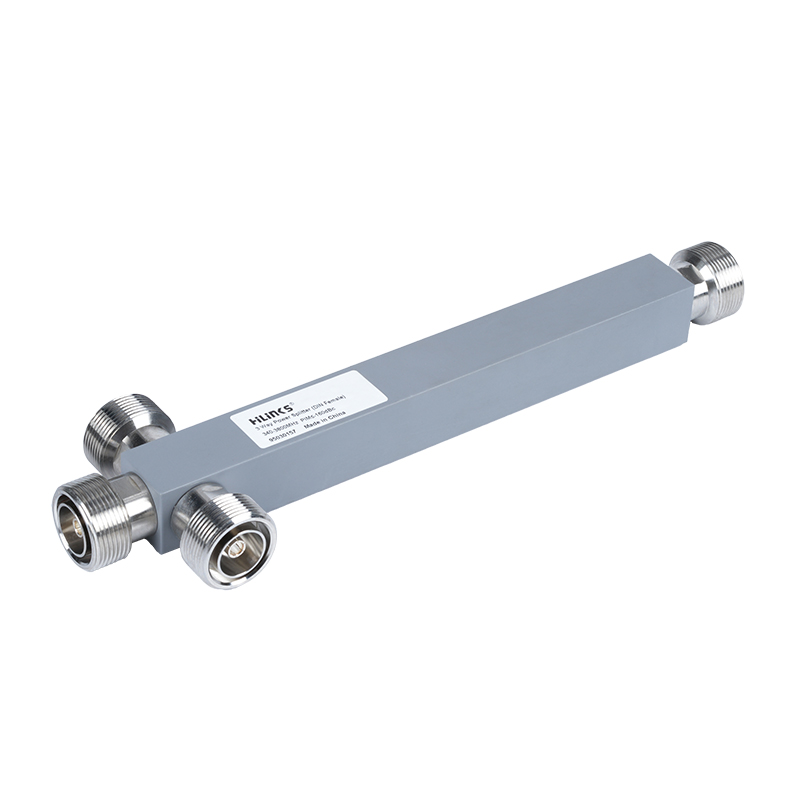

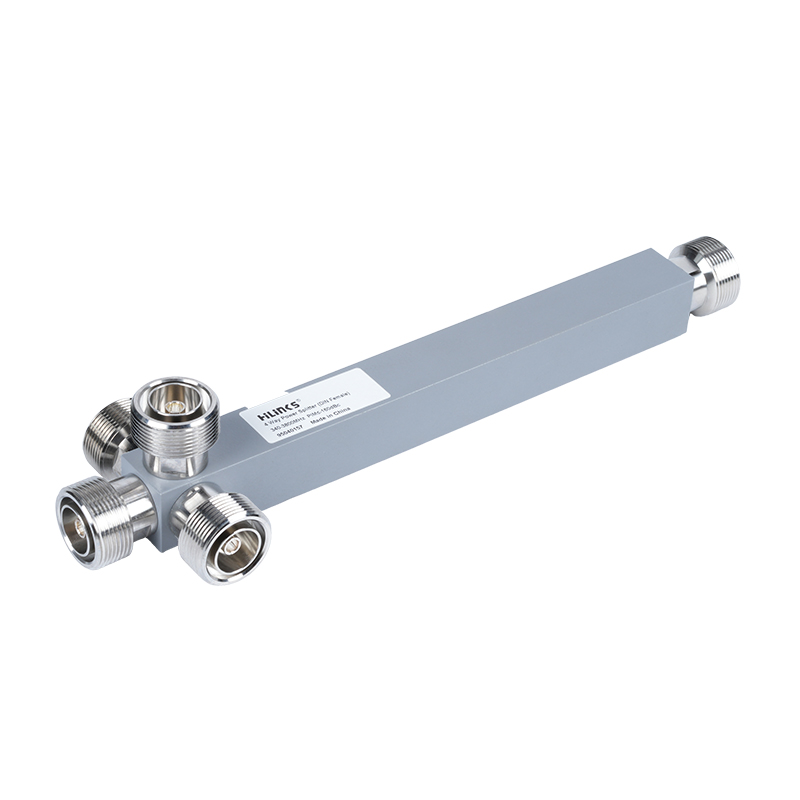

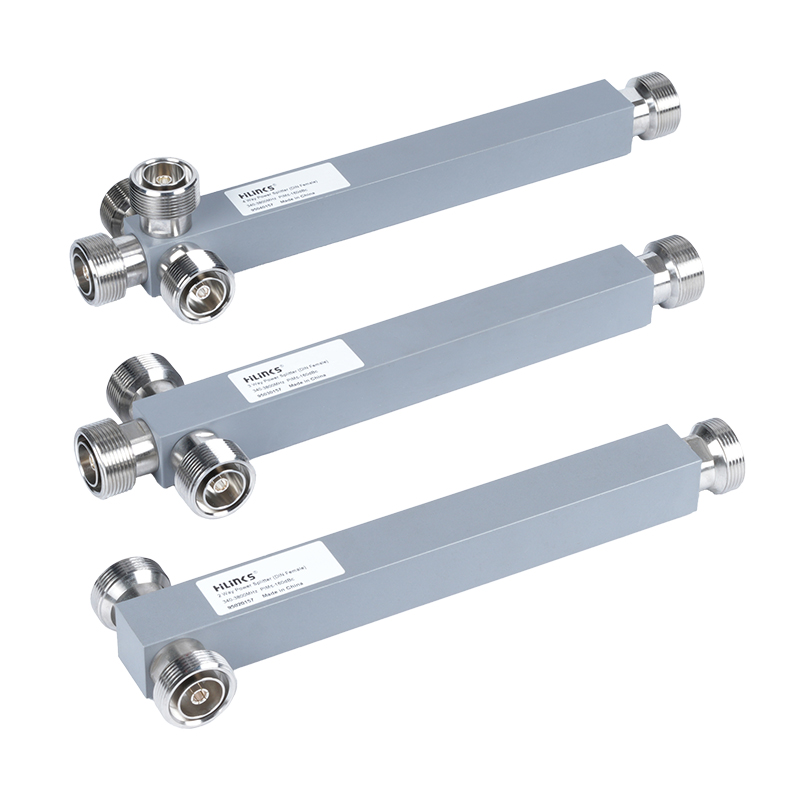

Industrial-Grade Square Tube Power Divider 950X015X

♦ Wide-band design, cover 340-3800MHz
♦ Low PIM < -160dBc
♦ Compact size and light weight
♦ Easy to be installed
♦ Suitable for indoor and outdoor applications
♦ Square tube

Frequency Range (MHz) 340-3800
Impedance (Ω) 50

Technical Data

Description

Environmental Specifications

Accessories

Electrical Specifications
Type No.	PIM3 (@2x43 dBm Carrier) (dBc)	≤-150	95020153	95030153	95040153
		≤-155	95020155	95030155	95040155
		≤-160	95020157	95030157	95040157
Frequency Range (MHz)			340-3800
For connecting…antennas			2 Way	3 Way	4 Way
Distribution Loss(dB)			3.0	4.8	6.0
Insertion Loss (dB)			≤0.3	≤0.6	≤0.6
Return Loss (dB)			≥19@340-2700&≥18@3400-3800
Input Power (W)			≤500
Peak Power (W)			≤2000
Impedance (Ω)			50

Mechanical Specifications

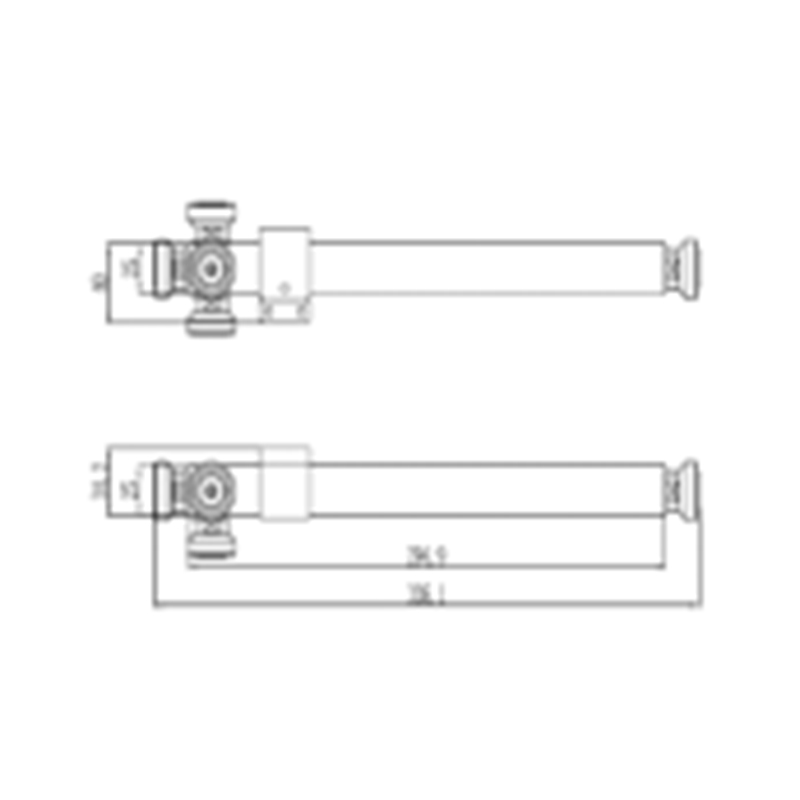

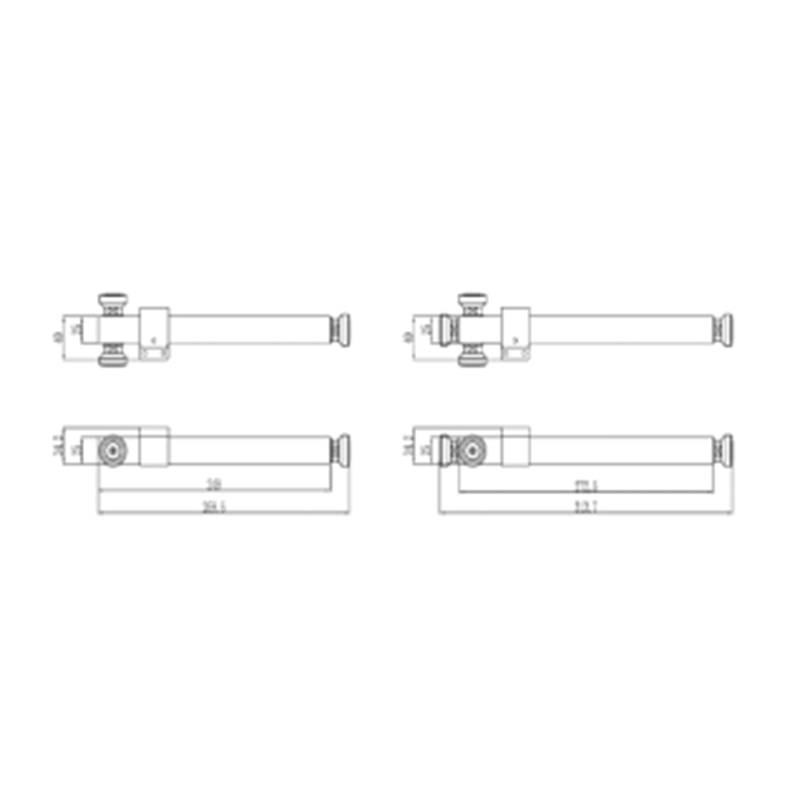

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm)	249x25x25	272.5x25x25	294.9x25x25
Weight (including connectors and mounting bracket) (kg)	0.57	0.63	0.76
Packing Size(mm)	290x85x50	335x85x50	355x85x65
Connector Type	7-16 Female (Twist head)
Color	Light Gray (Customized)
Mounting	Wall Mounted

Main Functions

RF Signal Distribution: Splits a single input signal into 2, 3, or 4 output paths with minimal distribution loss (3.0dB/4.8dB/6.0dB respectively), enabling multi-antenna deployments without separate transmitters.
Wideband Signal Integrity: Maintains low insertion loss (≤0.3–0.6dB) and consistent 50Ω impedance across 340–3800MHz, preserving signal quality for 2G–5G, IoT, and public safety bands.
High-Power Handling: Supports 500W continuous input and 2000W peak power, ensuring reliability during traffic surges while minimizing passive intermodulation (PIM) distortion.

Typical Application Scenarios

Distributed Antenna Systems (DAS): Optimizes coverage in stadiums, airports, or malls by splitting signals to multiple indoor/outdoor antennas (IP65-rated) across ultra-wideband frequencies.
Multi-Sector Cellular Sites: Enables cost-effective signal distribution in macro/micro cell sites for shared 4G/5G infrastructure, leveraging PIM options (-150/-155/-160dBc) to reduce interference.
Field Deployments & Test Labs: Used in temporary setups, military communications, or RF testing due to compact square-tube design (249–294.9mm length), wall-mount flexibility, and resilience (-25°C to +65°C).

Technical Features

Ultra-Wideband Performance: Covers 340–3800MHz (including 5G n77/n78 bands) with excellent return loss (≥19dB@340–2700MHz; ≥18dB@3400–3800MHz) and configurable ultra-low PIM (≤-150/-155/-160dBc variants).
High-Efficiency Design: Combines low distribution/insertion losses with 7-16 female twist connectors for vibration-resistant, high-power connections in minimal space (cross-section: 25x25mm).
Rugged & Scalable Build: Features IP65 environmental protection, lightweight aluminum housing (0.57–0.76kg), and dedicated brackets/screws (optional) for rapid deployment. Packaging optimizes logistics (4-unit box sizes: 290–355mm).
