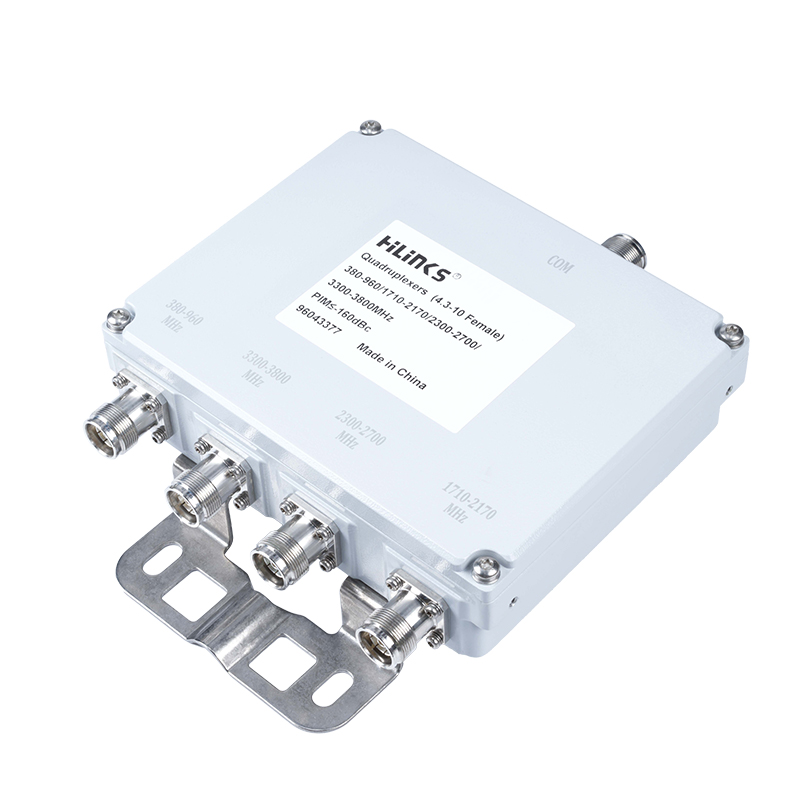

IP67 Co-Siting Combiner: 4-Band, 200W, Lightning Protected 96043377
|
Electrical Specifications |
||
|
Type No. |
4.3-10 Female |
96043377 |
|
Frequency Range (MHz) |
Band1 Band2 Band3 Band4 |
380-960 1710-2170 2300-2700 3300-3800 |
|
Insertion Loss (dB) |
Port1 Port2 Port3 Port4 |
≤0.5 ≤0.5 ≤0.5 ≤0.5 |
|
Isolation (dB) |
≥45 |
|
|
Return Loss (dB) |
≥19 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160@698-2700 |
|
|
DC/AISG Bypass |
Pass@380-2700MHz, Stop@3300-3800MHz |
|
|
Input Power (W) |
≤200 |
|
|
Peak Power (W) |
≤1500(4.3-10 Female) |
|
|
Impedance (Ω) |
50 |
|
|
Mechanical Specifications |
|
|

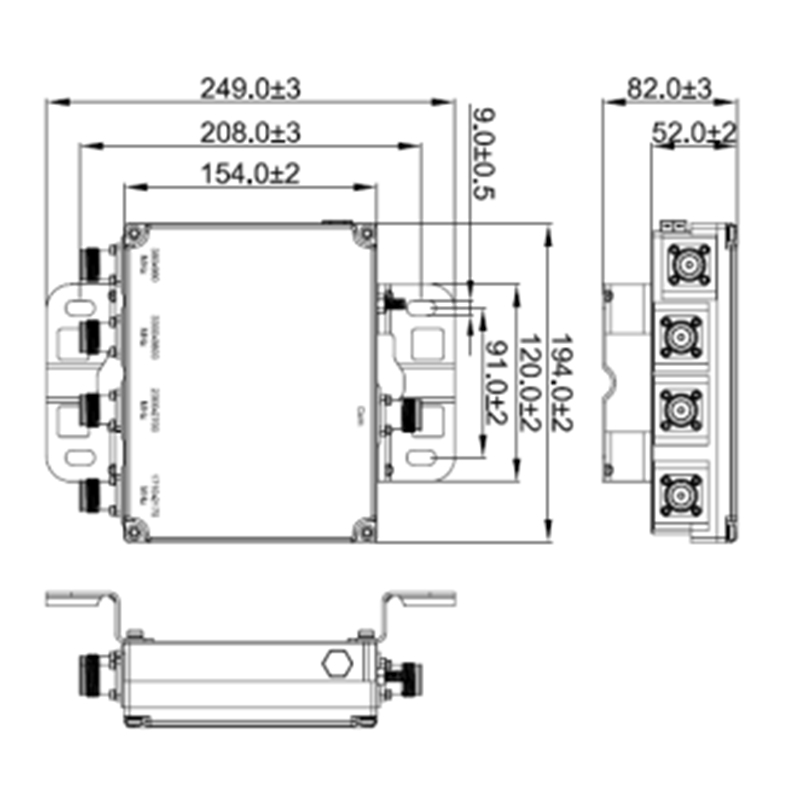

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
194X154X52 |
|
Weight (including connectors and mounting bracket) (kg) |
2.7 |
|
Packing Size(mm) |
372x278x155 |
|
Color |
Light Gray (customized) |
|
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Multi-Band Signal Combining: Merges four frequency bands (380-960MHz, 1710-2170MHz, 2300-2700MHz, 3300-3800MHz) into a single output, enabling efficient spectrum utilization and co-siting for diverse wireless technologies (e.g., 2G-5G).
DC/AISG Signal Management: Provides bypass functionality for DC power and AISG control signals in lower bands (380-2700MHz) while blocking them in higher bands (3300-3800MHz), supporting flexible remote antenna control and powering.
Surge Protection: Integrates robust lightning protection (10kA; 8/20µs pulse), safeguarding connected equipment from electrical surges in outdoor deployments.
Typical Application Scenarios
Cellular Site Consolidation: Enables co-location of multiple operators or technologies (e.g., 5G NR, LTE, legacy networks) on a single tower by combining their signals at the Base Station (BTS) or antenna side, reducing site complexity.
Dense Urban/Indoor DAS: Optimizes space and cabling in Distributed Antenna Systems (DAS) by merging bands, ideal for stadiums, airports, or buildings requiring multi-carrier coverage across 380-3800MHz.
Outdoor Small Cell Deployment: Supports pole/wall mounting (Φ35-135mm) with IP67 rating, making it suitable for rugged outdoor small cell installations requiring all-band aggregation and weather resilience.
Technical Features
High RF Performance: Delivers ultra-low insertion loss (≤0.5dB per port) and excellent isolation (≥45dB) across all bands, with PIM ≤-160dBc (698-2700MHz) to minimize interference.
Robust Power Handling: Supports continuous input power up to 200W and peak power of 1500W (4.3-10 Female connectors), ensuring reliability in high-traffic networks.
Ruggedized Design: Features IP67-rated housing for dust/water resistance, wide operational temperature (-30°C to +60°C), and lightning protection. Compact dimensions (194x154x52mm) with flexible pole/wall mounting simplify installation.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-30 to +60 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
10kA; 8/20 μs pulse |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50801.5519050 |
Hose clamp |
