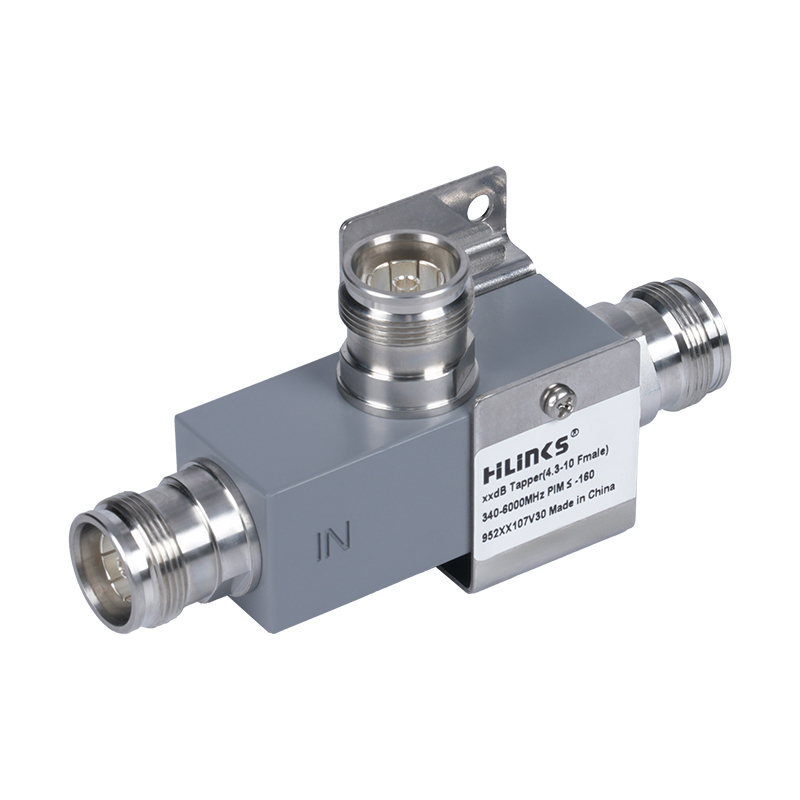

Low PIM RF Tapper with N & 4.3-10 Connectors 952XXXX7V30
|
Electrical Specifications |
||||||
|
Type No. |
N Female |
95205087V30 |
95206087V30 |
95207087V30 |
95208087V30 |
95209087V30 |
|
4.3-10 Female |
95205107V30 |
95206107V30 |
95207107V30 |
95208107V30 |
95209107V30 |
|
|
7-16 Female |
95205127V30 |
95206127V30 |
95207127V30 |
95208127V30 |
95209127V30 |
|
|
Ratio, nom (dB, Btwn Outputs) |
2:1/3 |
3:1/4.8 |
4:1/6.0 |
6:1/8.0 |
7:1/8.5 |
|
|
Output Split(dB) |
IN→ OUT/IN→ Coup |
-1.8 / -4.8 |
-1.3 / -6.1 |
-1.0 / -7.0 |
-0.7 / -8.6 |
-0.6 / -9.0 |
|
Insertion Loss (dB, IN→ Out) |
340-520 MHz |
≤1.8 |
≤1.1 |
≤0.9 |
≤0.8 |
≤0.8 |
|
698-960 MHz |
≤2.1 |
≤1.6 |
≤1.3 |
≤0.9 |
≤0.9 |
|
|
1710-4000 MHz |
≤2.1 |
≤1.6 |
≤1.3 |
≤0.9 |
≤0.9 |
|
|
5100-6000 MHz |
≤1.7 |
≤1.7 |
≤0.9 |
≤0.7 |
≤0.7 |
|
|
Coupling Tolerance (dB, IN→ Coup) |
340-520 MHz |
±1.5 |
±1.5 |
±1.5 |
±1.5 |
±1.5 |
|
698-960 MHz |
±1.3 |
±1.3 |
±1.3 |
±1.3 |
±1.3 |
|
|
1710-4000 MHz |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
|
|
5100-6000 MHz |
±1.3 |
±1.3 |
±1.3 |
±1.3 |
±1.3 |
|
|
Return Loss(dB)/VSWR |
≤-14/1.5:1 |
≤-15.6/1.4:1 |
≤-18/1.3:1 |
≤-18/1.3:1 |
≤-18/1.3:1 |
|
|
Type No. |
N Female |
95210087V30 |
95213087V30 |
95215087V30 |
95220087V30 |
95230087V30 |
|
4.3-10 Female |
95210107V30 |
95213107V30 |
95215107V30 |
95220107V30 |
95230107V30 |
|
|
7-16 Female |
95210127V30 |
95213127V30 |
95215127V30 |
95220127V30 |
95230127V30 |
|
|
Ratio, nom (dB, Btwn Outputs) |
10:1/10 |
20:1/13 |
30:1/15 |
100:1/20 |
1000:1/30 |
|
|
Output Split(dB) |
IN→OUT/IN→ Coup |
-0.4 / -10.4 |
-0.2 / -13.2 |
-0.1 / -15.1 |
-0.1 / -20.1 |
-0.1 / -30.1 |
|
Insertion Loss (dB, IN→ Out) |
340-520 MHz |
≤0.6 |
≤0.3 |
≤0.2 |
≤0.1 |
≤0.1 |
|
698-960 MHz |
≤0.7 |
≤0.3 |
≤0.2 |
≤0.1 |
≤0.1 |
|
|
1710-4000 MHz |
≤0.6 |
≤0.3 |
≤0.2 |
≤0.1 |
≤0.1 |
|
|
5100-6000 MHz |
≤0.4 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
|
|
Coupling Tolerance (dB, IN→ Coup) |
340-520 MHz |
±1.5 |
±2.0 |
±2.0 |
±2.0 |
±2.0 |
|
698-960 MHz |
±1.3 |
±1.8 |
±1.8 |
±1.8 |
±1.8 |
|
|
1710-4000 MHz |
±1.0 |
±1.5 |
±1.5 |
±1.5 |
±1.5 |
|
|
5100-6000 MHz |
±1.3 |
±1.8 |
±1.8 |
±1.8 |
±1.8 |
|
|
Return Loss(dB) |
≤-18/1.3:1 |
≤-18/1.3:1 |
≤-18/1.3:1 |
≤-18/1.3:1 |
≤-18/1.3:1 |
|
|
Frequency Range (MHz) |
340-4000&5100-6000 |
|||||
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160@900、1800、2100、2600Bands |
|||||
|
Input Power (W) |
≤250(N Female), ≤300(4.3-10 Female), ≤500(7-16 Female) |
|||||
|
Peak Power (W) |
≤800(N Female), ≤1500(4.3-10 Female), ≤2000(7-16 Female) |
|||||
|
Impedance (Ω) |
50 |
|||||
|
Mechanical Specifications |
||
|

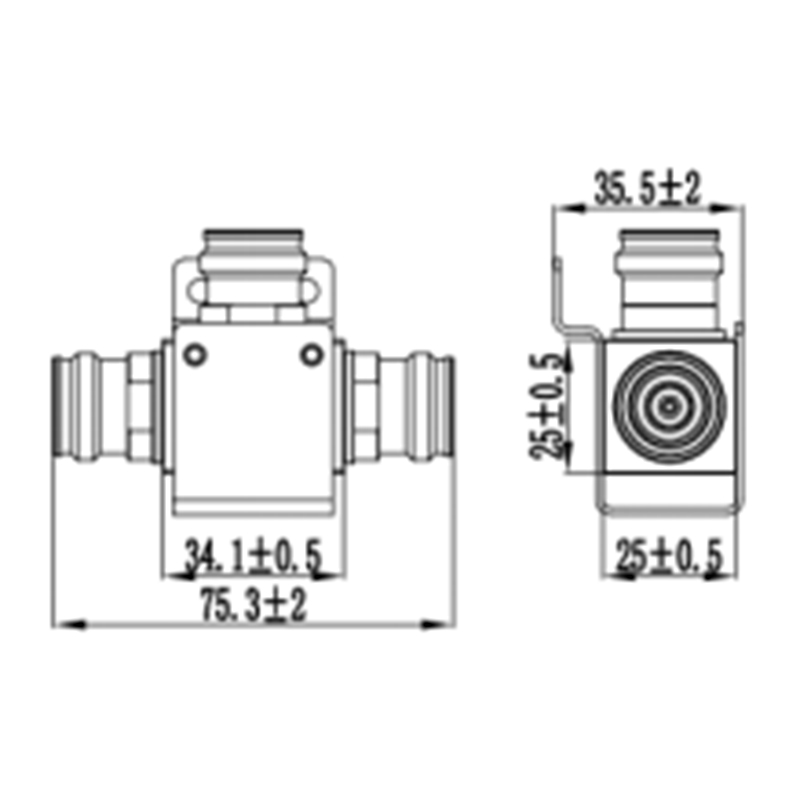

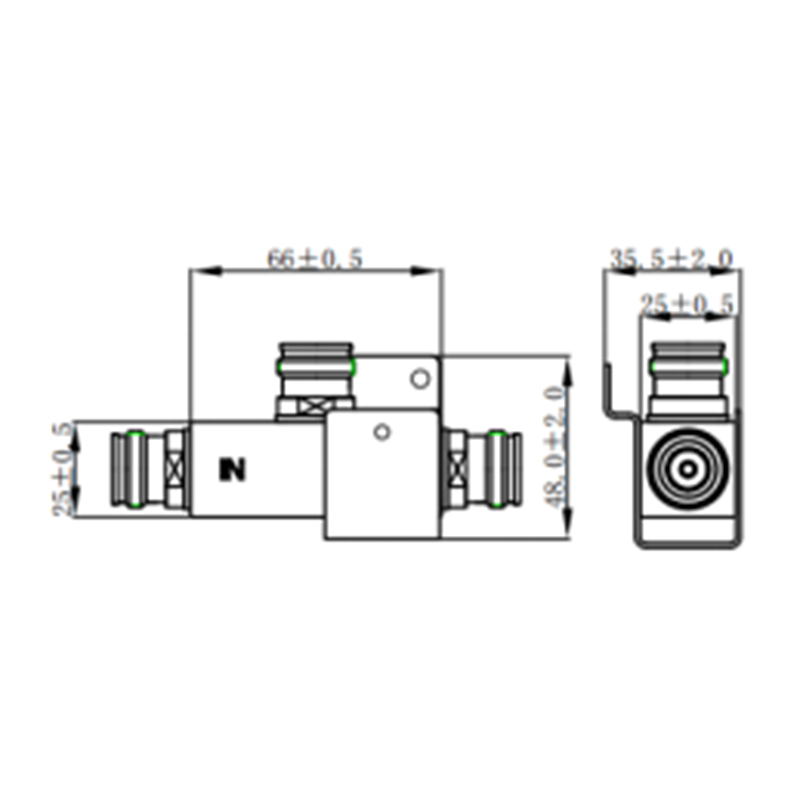

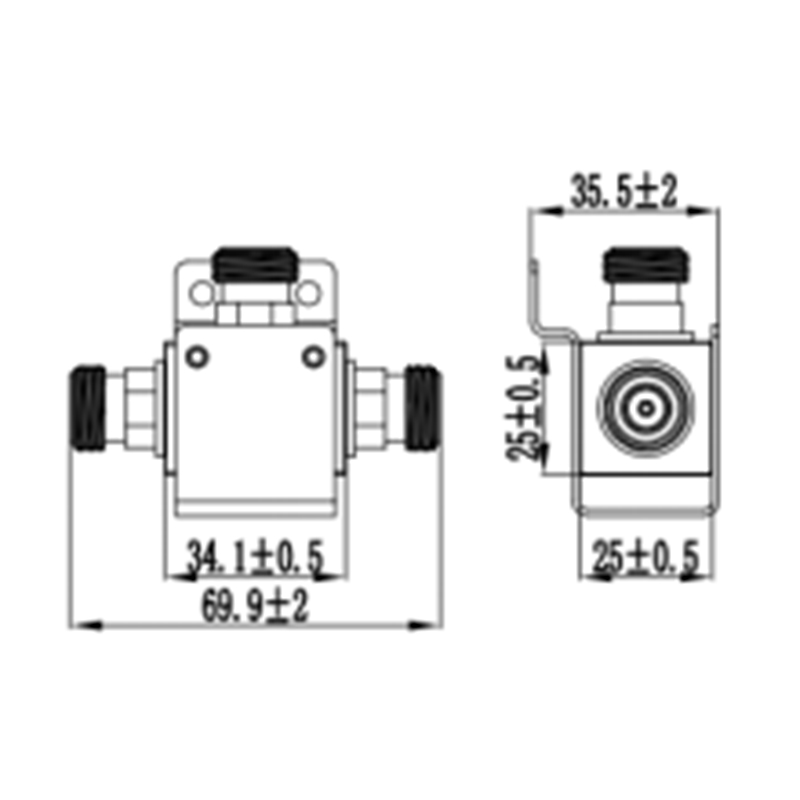

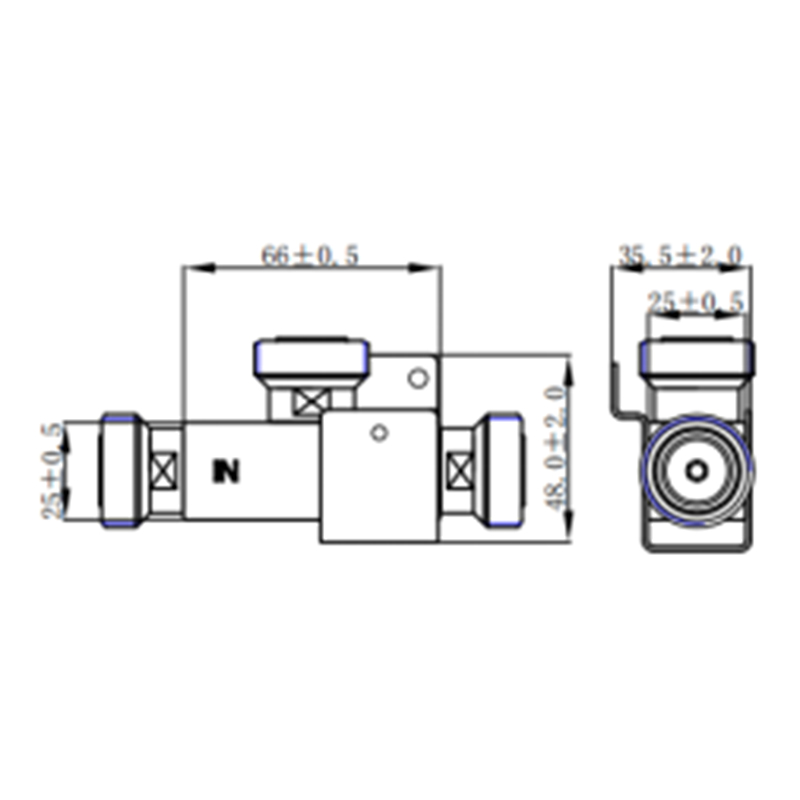

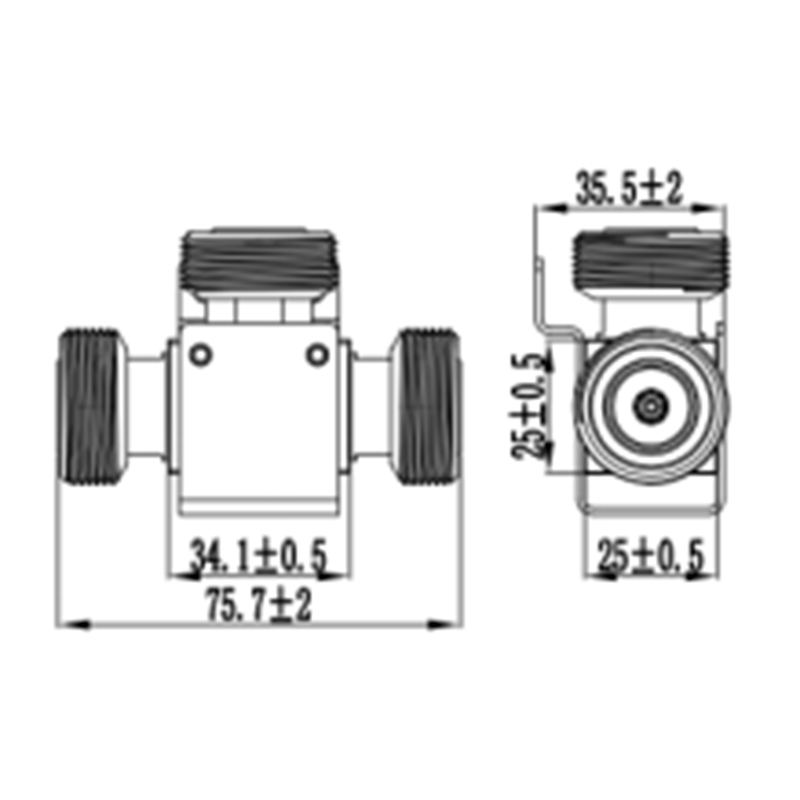

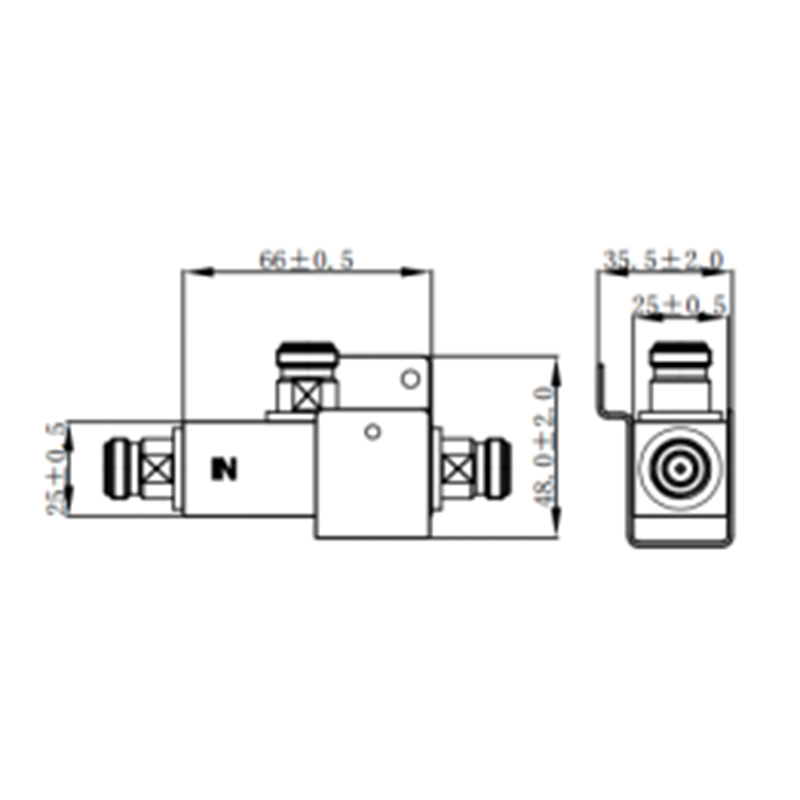

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
65.5x25x25/4.8-20.1dB |
34.1x25x25/30.1dB |
|
Weight (including connectors and mounting bracket) (kg) |
0.22(N Female) 0.26(4.3-10 Female) 0.34(7-16 Female) |
0.12(N Female) 0.15(4.3-10 Female) 0.27(7-16 Female) |
|
Packing Size(mm) |
135x70x55(30Pcs/box) |
|
|
Color |
Light Gray (Customized) |
|
|
Mounting |
Wall Mounting |
|
Main Functions
Splits RF signals across an ultra-wide frequency range (340-6000MHz).
Minimizes passive intermodulation (PIM < -160dBc).
Supports versatile connector options (N and 4.3-10 threaded).
Typical Application Scenarios
High-frequency communication systems (5G, LTE).
Military and aerospace RF signal distribution.
Test and measurement setups for broadband signals.
Technical Features
Ultra-wideband coverage (340-6000MHz) for multi-system compatibility.
Low PIM design (< -160dBc) ensures signal integrity.
Durable connectors (N and 4.3-10 threaded) for robust connectivity.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP66 (Indoor and Outdoor) |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50403.0200955 |
Bracket |
|
50503.0306100 |
Screw |
