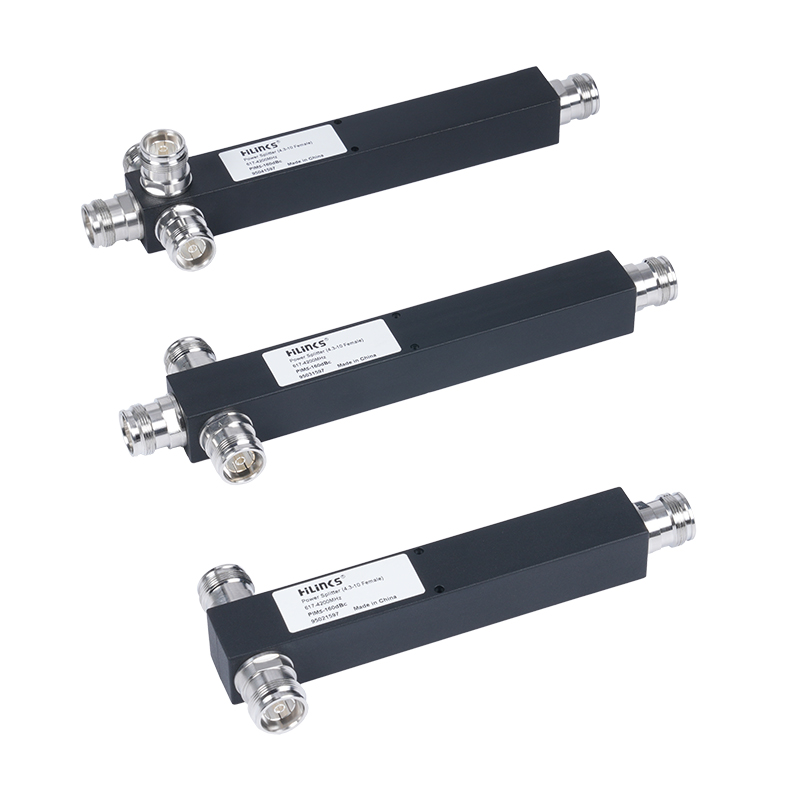

N-Type Wideband Power Splitter (617-4200MHz) 950X158X
|
Electrical Specifications |
|||||
|
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
95021583 |
95031583 |
95041583 |
|
≤-155 |
95021585 |
95031585 |
95041585 |
||
|
≤-160 |
95021587 |
95031587 |
95041587 |
||
|
Frequency Range (MHz) |
617-4200 |
||||
|
For connecting…antennas |
2 Way |
3 Way |
4 Way |
||
|
Distribution Loss(dB) |
3.0 |
4.8 |
6.0 |
||
|
Insertion Loss (dB) |
≤0.3 |
≤0.4 |
≤0.5 |
||
|
Return Loss (dB) |
≥19 |
||||
|
PIM Test Bands |
900M/1800M/2100M/2600M |
||||
|
Input Power (W) |
≤300 |
||||
|
Peak Power (W) |
≤800 |
||||
|
Impedance (Ω) |
50 |
||||
|

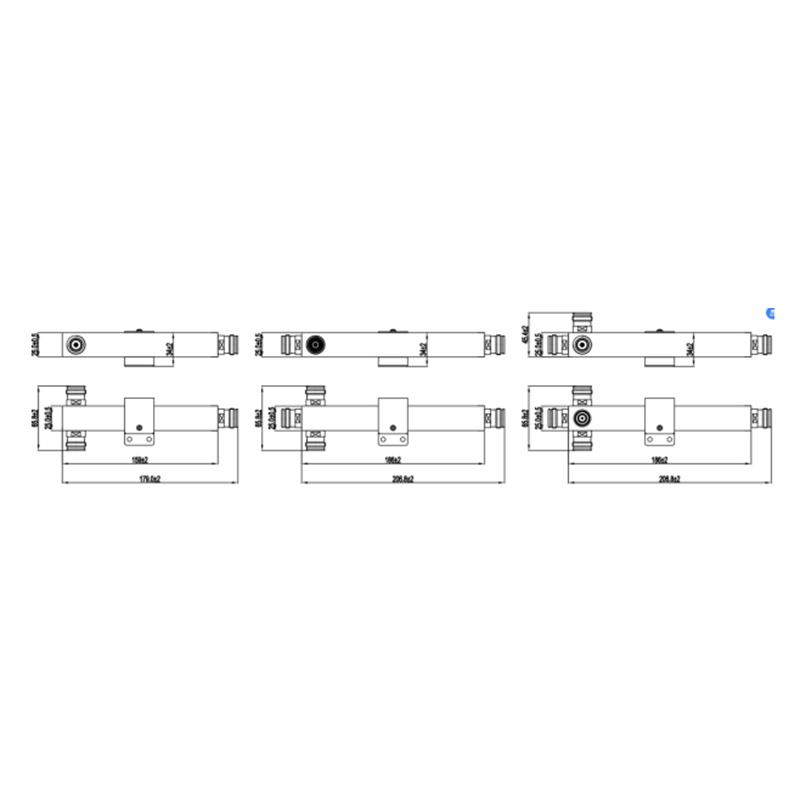

Mechanical Specifications |
|||
|
Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
158.6x25x25 |
186.4x25x25 |
186.4x25x25 |
|
Weight (including connectors and mounting bracket) (kg) |
0.3 |
0.34 |
0.43 |
|
Packing Size(mm) |
200x75x40 |
230x75x40 |
230x75x60 |
|
Connector Type |
N Female (Twist head) |
||
|
Coupling Nut Proof Torque |
≤4.5N.m |
||
|
Color |
Light Gray (Customizable) |
||
|
Mounting |
Wall Mounted |
||
Main Functions
Multi-Path Signal Splitting: Divides a single RF input into two, three, or four output paths with defined distribution loss (e.g., 3.0 dB for 2-way, 6.0 dB for 4-way).
Low-Distortion Signal Distribution: Maintains signal integrity with ultra-low Passive Intermodulation Distortion (PIM3 ≤ -160dBc), critical for interference-free communication.
Impedance-Stable Transmission: Ensures minimal signal reflection via 50-ohm impedance matching across all ports (Return Loss ≥19 dB).
Typical Application Scenarios
Cellular Infrastructure (4G/5G): Splits signals in base stations and repeaters across 617-4200MHz bands (including 900M/1800M/2100M/2600M PIM test bands).
Outdoor DAS and Small Cells: Supports dense urban deployments requiring weather-resistant (IP65), compact splitters for antenna distribution.
Public Safety Networks: Reliable for emergency communication systems needing ≤300W continuous power handling and rugged outdoor performance.
Technical Features
N Connector & Robust Power Handling: Uses N Female twist-head connectors with ≤4.5N.m torque tolerance, supporting ≤300W continuous input and ≤800W peak power.
Optimized RF Performance: Combines ultra-low insertion loss (≤0.3 dB to ≤0.5 dB), wide bandwidth (617-4200MHz), and industry-leading PIM (≤-160dBc @ 2x43 dBm carriers).
Compact Environmental Design: Lightweight circular tube housing (158.6x25x25mm, 0.3kg for 2-way), IP65-rated for indoor/outdoor use, and operational from -25°C to +65°C at ≤95% humidity.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-25 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65(Indoor and Outdoor) |
