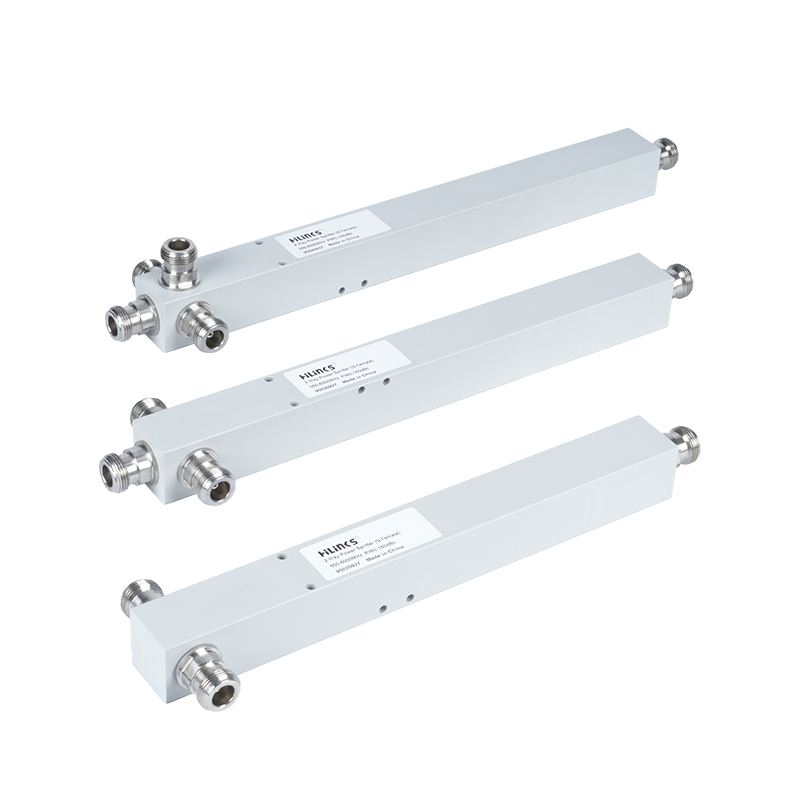

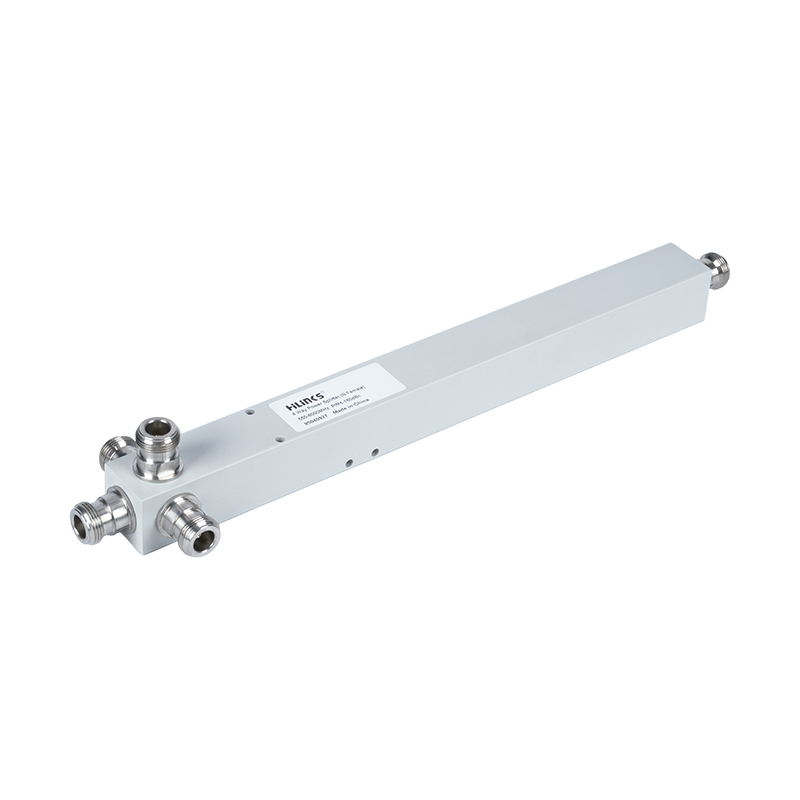

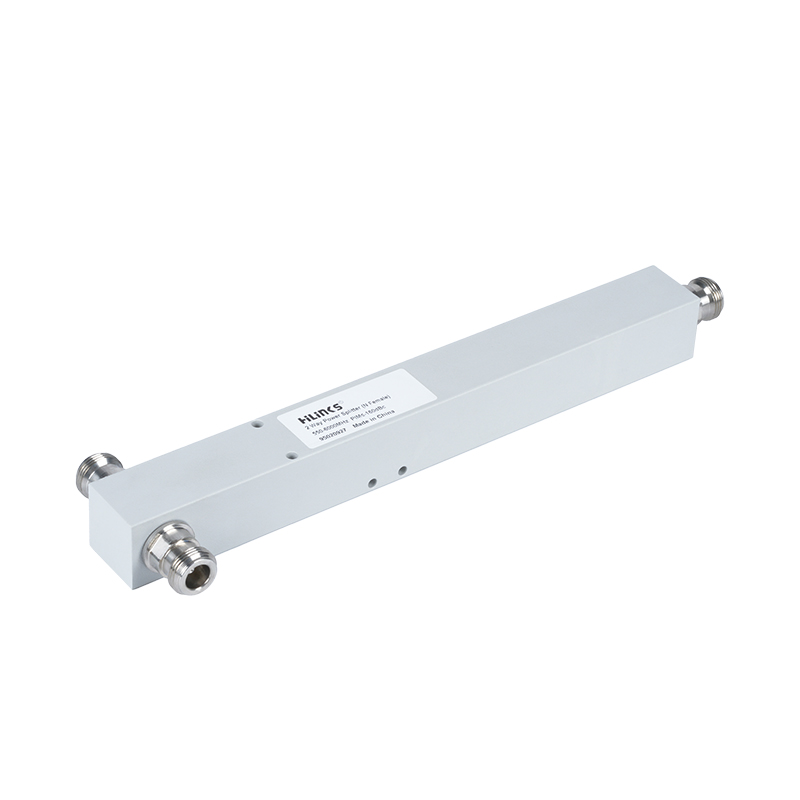

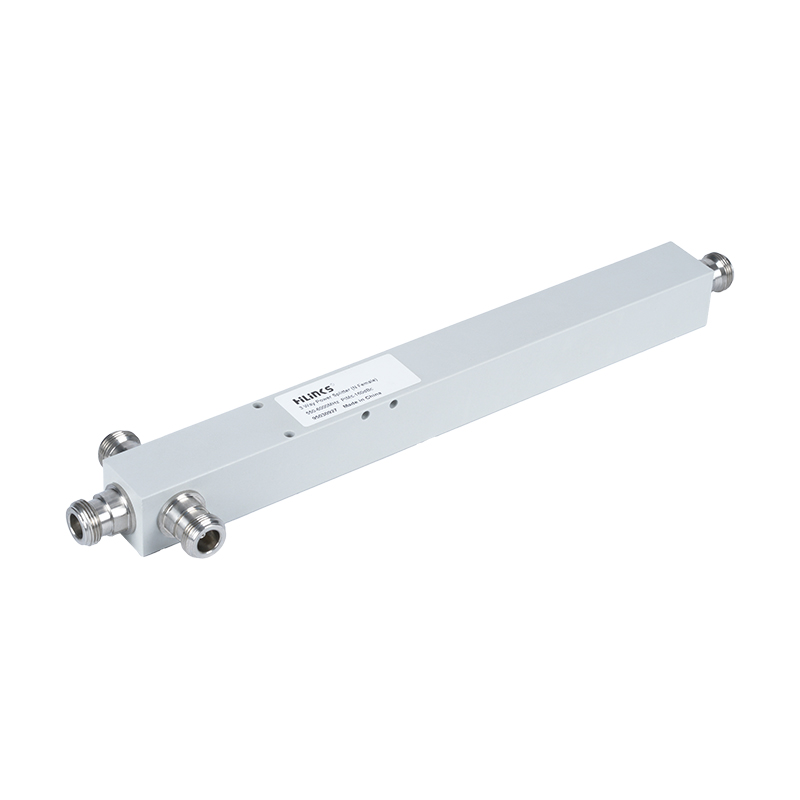

Next-Gen 5G/6G Ready RF Signal Divider 950X092X
|
Electrical Specifications |
|||||
|
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
95020923 |
95030923 |
95040923 |
|
≤-155 |
95020925 |
95030925 |
95040925 |
||
|
≤-160 |
95020927 |
95030927 |
95040927 |
||
|
Frequency Range (MHz) |
550-6000 |
||||
|
For connecting…antennas |
2 Way |
3 Way |
4 Way |
||
|
Distribution Loss(dB) |
3.0 |
4.8 |
6.0 |
||
|
Insertion Loss (dB) |
< 0.3 |
< 0.8 |
< 0.9 |
||
|
Return Loss (dB) |
≥19@550-2700&≥18@3400-6000 |
||||
|
Input Power (W) |
≤300 |
||||
|
Peak Power (W) |
≤800 |
||||
|
Impedance (Ω) |
50 |
||||
|
Mechanical Specifications |
|||
|

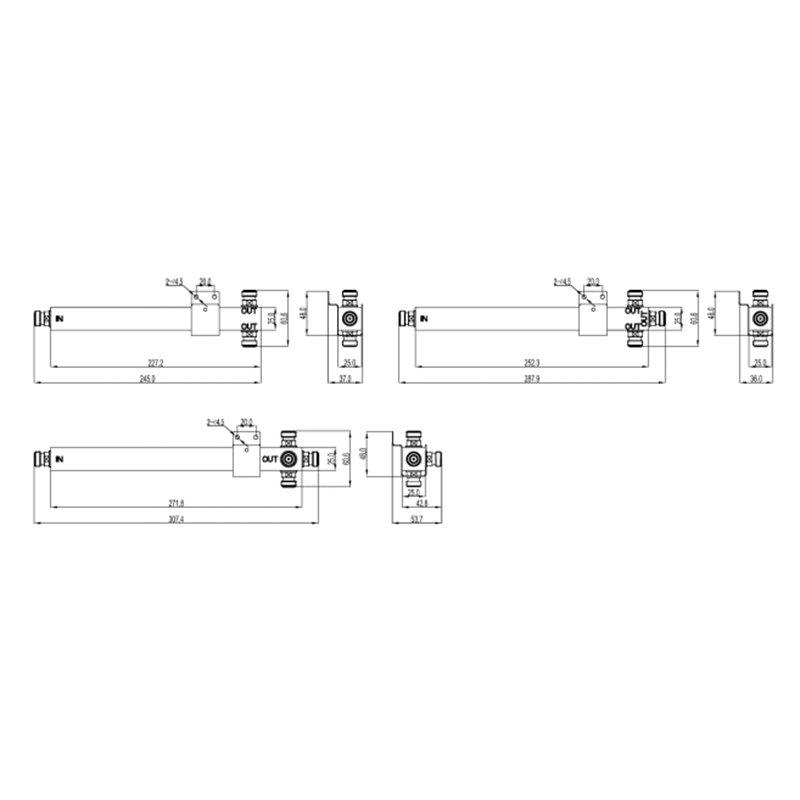

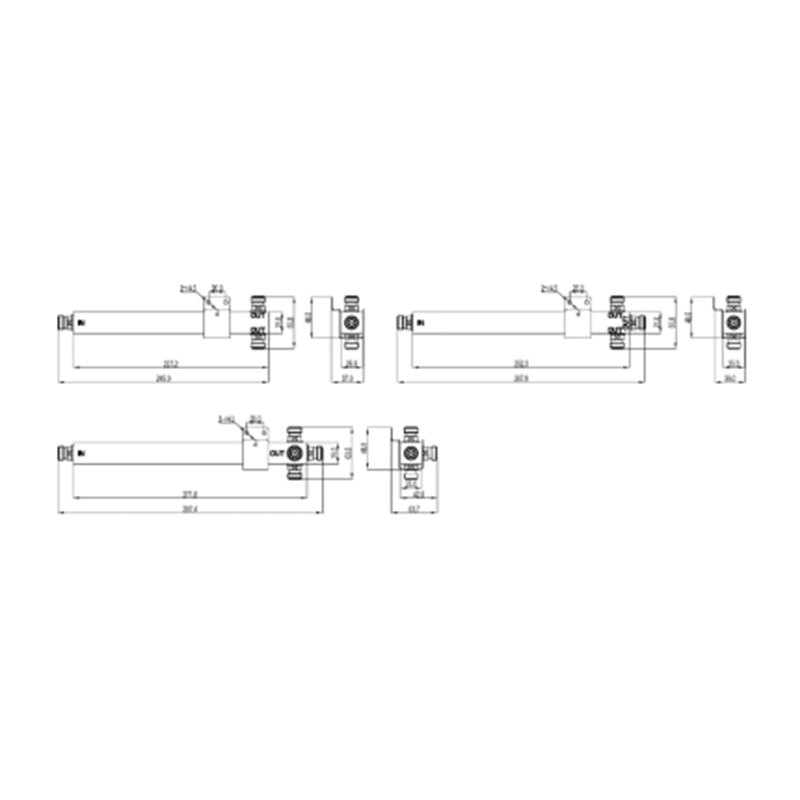

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
227.2x25x25 |
252.3x25x25 |
271.8x25x25 |
|
Weight (including connectors and mounting bracket) (kg) |
0.40 |
0.46 |
0.52 |
|
Packing Size(mm) |
290x85x50 |
335x85x50 |
355x85x65 |
|
Connector Type |
N Female (Twist head) |
||
|
Color |
Light Gray (Customized) |
||
|
Mounting |
Wall Mounted |
||
Main Functions
Multi-Path Signal Distribution: Splits a single RF input into 2, 3, or 4 output paths with precise distribution loss (3.0dB/4.8dB/6.0dB), enabling simultaneous multi-antenna connectivity.
Broadband Signal Integrity: Transmits signals across 550–6000MHz (covering 5G n77/n78, LTE, Wi-Fi 6E) with minimal insertion loss (<0.3–0.9dB) and consistent 50Ω impedance, preserving critical spectrum performance.
Interference Control: Minimizes passive intermodulation distortion through ultra-low PIM options (≤-150/-155/-160dBc), crucial for high-density networks.
Typical Application Scenarios
5G C-Band Deployments: Optimizes 3.5GHz (n77/n78) signal distribution in small cells and massive MIMO systems, leveraging the 3300-6000MHz range for high-speed data networks.
Outdoor DAS and Repeaters: Supports multi-antenna setups in stadiums or campuses (IP65-rated) with wall-mounted square-tube design, resilient to environmental stress.
Field Communications & Test Rigs: Used in military/temporary installations due to lightweight build (0.4–0.52kg), wide temperature range (-25°C to +65°C), and vibration-resistant N connectors.
Technical Features
High-Frequency Optimization: Delivers excellent return loss (≥19dB@550–2700MHz; ≥18dB@3400–6000MHz) and low insertion loss optimized for upper UHF/SHF bands.
Robust Power Handling: Supports 300W continuous input and 800W peak power via N Female twist connectors, ensuring reliability during traffic surges.
Deployment-Ready Design: Features IP65 protection, space-efficient square tube housing (227–272mm length), and optional brackets/screws. Packaged for logistics efficiency (4-unit box sizes).
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-25 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65(Indoor and Outdoor) |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
30505.0043051 |
Bracket |
|
50501.0330100 |
Screw |
