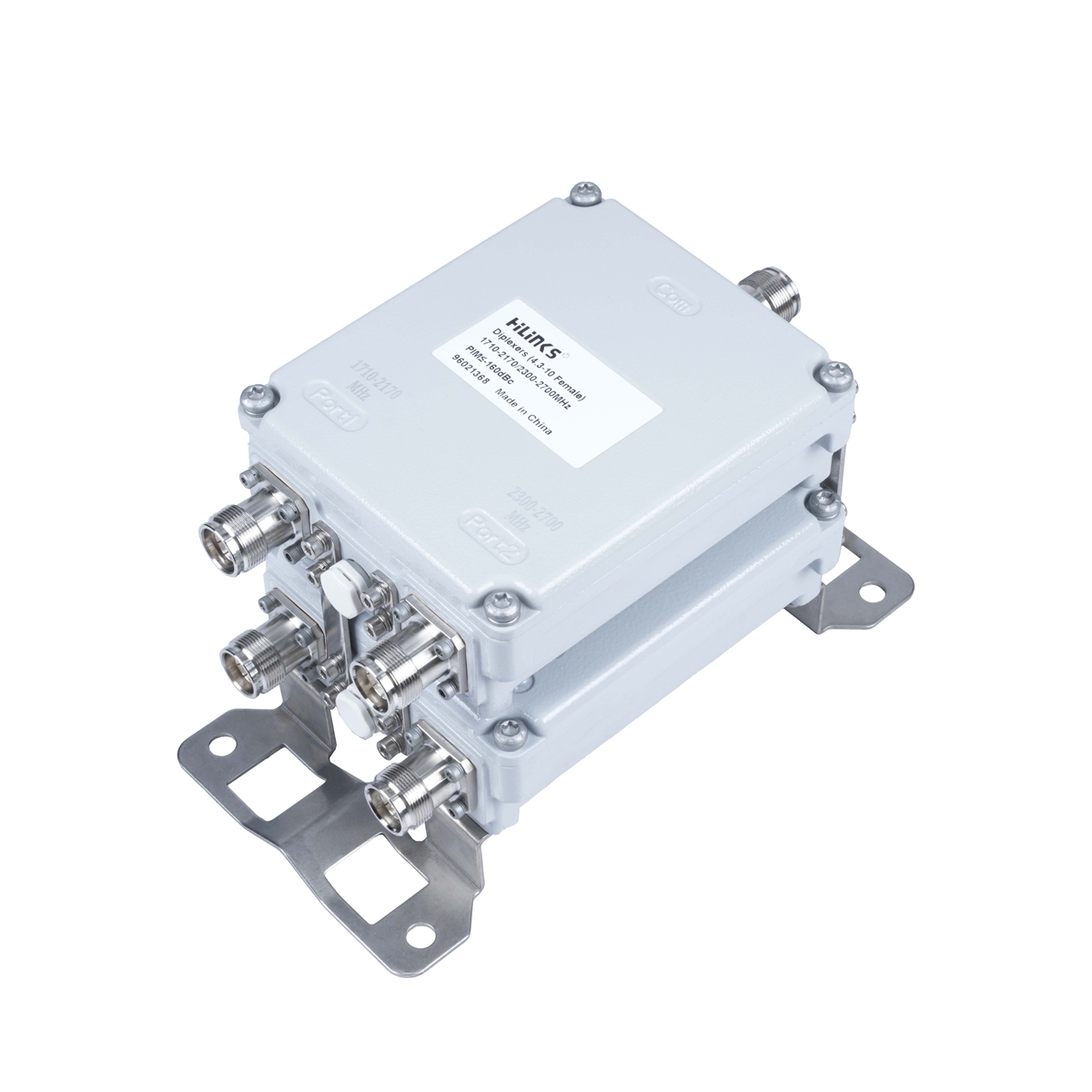

Outdoor Dual-Band Combiner System 96021368
Electrical Specifications
|
Electrical Specifications |
||
|
Type No. |
4.3-10 Female |
96021368 |
|
Frequency Range (MHz) |
Band1 Band2 |
1710-2180 2300-2690 |
|
Insertion Loss (dB) |
Port1 Port2 |
≤0.45 ≤0.45 |
|
Isolation (dB) |
≥50 |
|
|
Return Loss (dB) / VSWR |
≤-19/1.25 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
|
|
DC/AISG Bypass |
Autosense |
|
|
Input Power (W) |
≤200 |
|
|
Impedance (Ω) |
50 |
|
Mechanical Specifications
|
Mechanical Specifications |
|
|

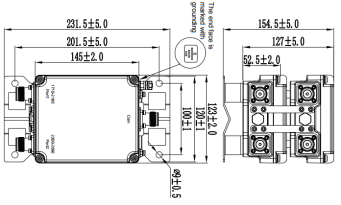

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
145x123x127 |
|
Weight (including connectors and mounting bracket) (kg) |
3.4 |
|
Packing Size(mm) |
320x210x235 |
|
Color |
Light Gray (customized) |
|
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Dual-Band Signal Combining
Seamlessly integrates 1710–2180MHz and 2300–2690MHz frequency bands for optimized spectrum utilization.
Autosense DC/AISC Bypass
Features intelligent bypass detection for automated Remote Electrical Tilt (RET) and Tower Mounted Amplifier (TMA) compatibility.
Robust Lightning Protection
Equipped with 8kA (8/20µs pulse) surge protection for reliable operation in demanding outdoor environments.
Typical Application Scenarios
5G NR/LTE Base Station Co-Siting
Enables multi-band aggregation for 4G/5G networks, reducing site congestion.
DAS and Small Cell Deployment
Ideal for high-capacity signal distribution in dense urban or indoor environments.
Hybrid Indoor/Outdoor Installations
IP67-rated housing ensures performance in telecom cabinets, towers, or harsh outdoor conditions.
Technical Features
Ultra-Low Insertion Loss (≤0.45dB)
Preserves signal integrity across both frequency bands.
High Isolation (≥50dB)
Eliminates inter-band interference for clean multi-carrier operation.
Industry-Leading PIM3 (≤-160dBc)
Ensures superior linearity for high-power 5G/LTE applications.
Environmental Specifications
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
8kA; 8/20 μs pulse |
Accessories (order separately)
Accessories (order separately) | |
Type No. |
Description |
50801.5519050 |
Hose clamp |
