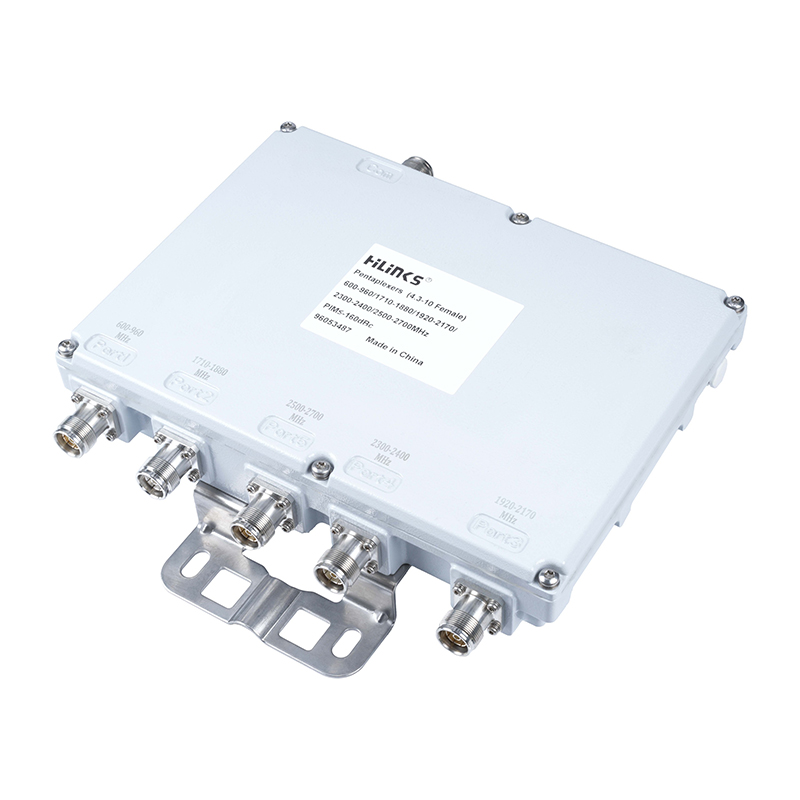

Penta-Band Combiner for BTS/Antenna Systems 960534XX
Electrical Specifications
Electrical Specifications | ||||
Type No. |
4.3-10 Female |
96053483 |
96053485 |
96053487 |
7-16 Female |
96053493 |
96053495 |
96053497 |
|
Frequency Range (MHz) |
Band1 Band2 Band3 Band4 Band5 |
600-960 1710-1880 1920-2170 2300-2400 2500-2700 |
||
Insertion Loss (dB) |
≤0.4 |
|||
Return Loss (dB)/VSWR |
≤-19/1.25:1 |
|||
Isolation (dB) |
Port1 Port2 Port3 Port4 Port5 |
≥50 ≥70 ≥70 ≥70 ≥70 |
||
DC/AISG Bypass |
Port1 Port2 Port3 Port4 Port5 |
Stop Stop Stop Stop Pass |
||
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
≤-155 |
≤-160 |
|
Input Power (W) |
≤250 |
|||
Peak Power (W) |
≤1200 |
|||
Impedance (Ω) |
50 |
|||
Mechanical Specifications
Mechanical Specifications | |

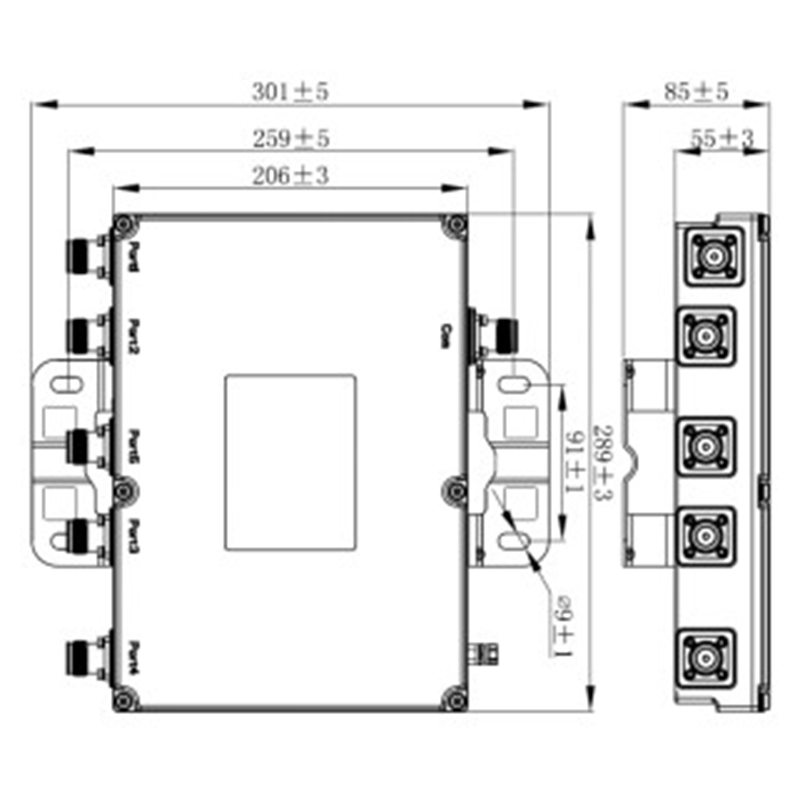

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
289x206x55 |
Weight (including connectors and mounting bracket) (kg) |
4.5 |
Packing Size(mm) |
360x360x155 |
Color |
Light Gray (customized) |
Mounting |
Pole (clamps included for Ф35-125mm pole) or Wall Mounted |
Main Functions
Combines five frequency bands (600-960MHz, 1710-1880MHz, 1920-2170MHz, 2300-2400MHz, 2500-2700MHz) with low insertion loss (≤0.4dB).
Features selective DC/AISG bypass (Port5 only) for flexible system configurations.
Provides built-in lightning protection (8kA, 8/20µs pulse) for outdoor reliability.
Typical Application Scenarios
Ideal for multi-band co-siting in 4G/5G base stations (BTS) and antenna systems.
Suitable for both indoor and outdoor deployments with IP67-rated environmental protection.
Enables efficient spectrum sharing in dense urban telecom networks.
Technical Features
High isolation (≥50-70dB between ports) and excellent return loss (≤-19dB) for minimal signal interference.
Robust industrial design with wide operational temperature range (-20°C to +65°C).
Supports high-power operations (≤250W continuous, ≤1200W peak) with ultra-low PIM3 (≤-150 to -160dBc).
Environmental Specifications
Environmental Specifications | |
Operational Temperature (°C) |
-20 to +65 |
Operational Humidity (%) |
≤95 |
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
Lightning Protection |
8kA; 8/20 μs pulse |
Accessories (order separately)
Accessories (order separately) | |
Type No. |
Description |
50801.5519050 |
Hose clamp |
