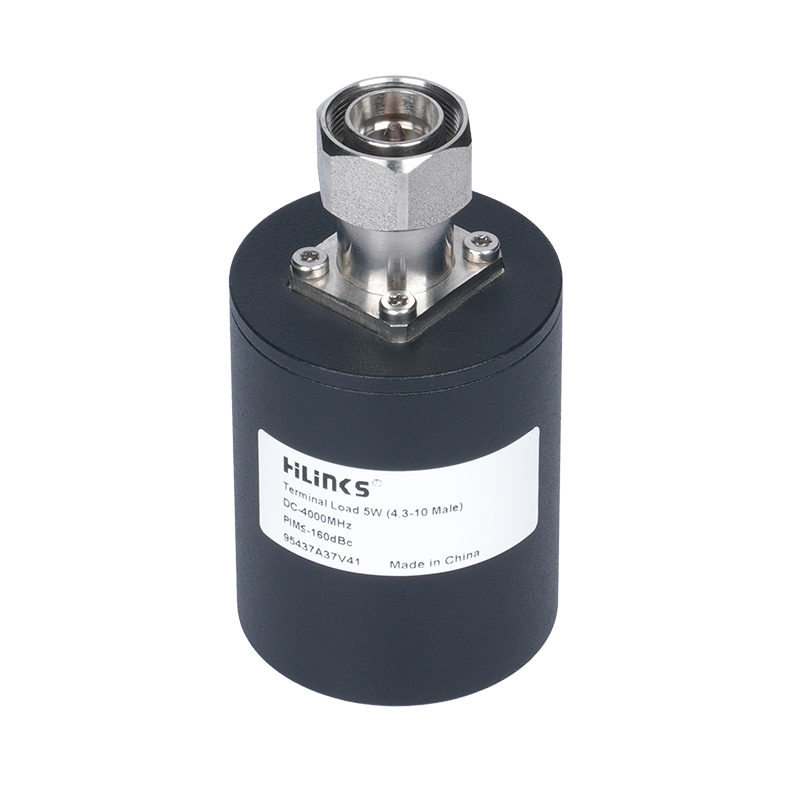

Terminal Load for Telecom Systems 95437XXXV41
|
Electrical Specifications |
||||
|
Type No. |
N Female |
95437B93V41 |
95437B95V41 |
95437B97V41 |
|
N Male |
95437B83V41 |
95437B85V41 |
95437B87V41 |
|
|
4.3-10 Female |
95437B73V41 |
95437B75V41 |
95437B77V41 |
|
|
4.3-10 Male |
95437A33V41 |
95437A35V41 |
95437A37V41 |
|
|
7-16 Female |
95437C23V41 |
95437C25V41 |
95437C27V41 |
|
|
7-16 Male |
95437C13V41 |
95437C15V41 |
95437C17V41 |
|
|
Input Power (W) |
5 |
|||
|
Frequency Range (MHz) |
DC-4000 |
|||
|
Return Loss (dB) |
≤-18 |
|||
|
PIM3 (@2x33 dBm Carrier) (dBc) |
≤-150@900M/1800M/ 2600M Bands |
≤-155@900M/1800M/ 2600M Bands |
≤-160@900M/1800M/ 2600M Bands |
|
|
Impedance (Ω) |
50 |
|||
| Mechanical Specifications | |

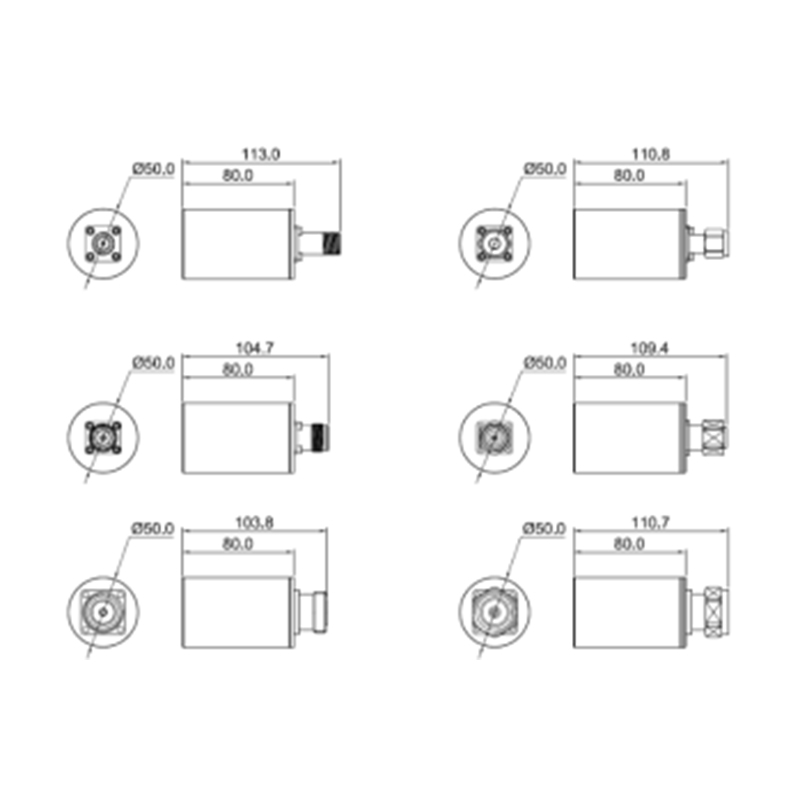

| Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
¢ 50x80 |
| Weight (including connectors and mounting bracket) (kg) |
1.2 |
| Color |
Black (Customized) |
| Mounting |
Wall Mounted |
Main Functions
Splits/combines RF signals across DC-4GHz frequency range.Combines multiple RF signals into a single output path
Supports multiple connector types (N, 4.3-10, 7-16).Maintains signal integrity with ultra-low insertion loss
Handles up to 5W power for low-to-mid power applications.Provides port isolation to prevent interference
Typical Application Scenarios
Signal distribution in test/measurement setups.Cellular site multi-carrier aggregation (4G/5G)
Small-cell networks and RF signal routing.Distributed Antenna Systems (DAS) in stadiums
Low-power DAS (Distributed Antenna Systems).Public safety communication networks
Technical Features
Broadband operation (DC-4GHz).Ultra-low PIM (-150 to -160dBc options)
50Ω impedance matching (Ω symbol suggests this).Connector variants (N/4.3-10/7-16) for power scaling
Multi-connector compatibility for flexible integration.IP65-rated rugged housing for outdoor use
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-20 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
