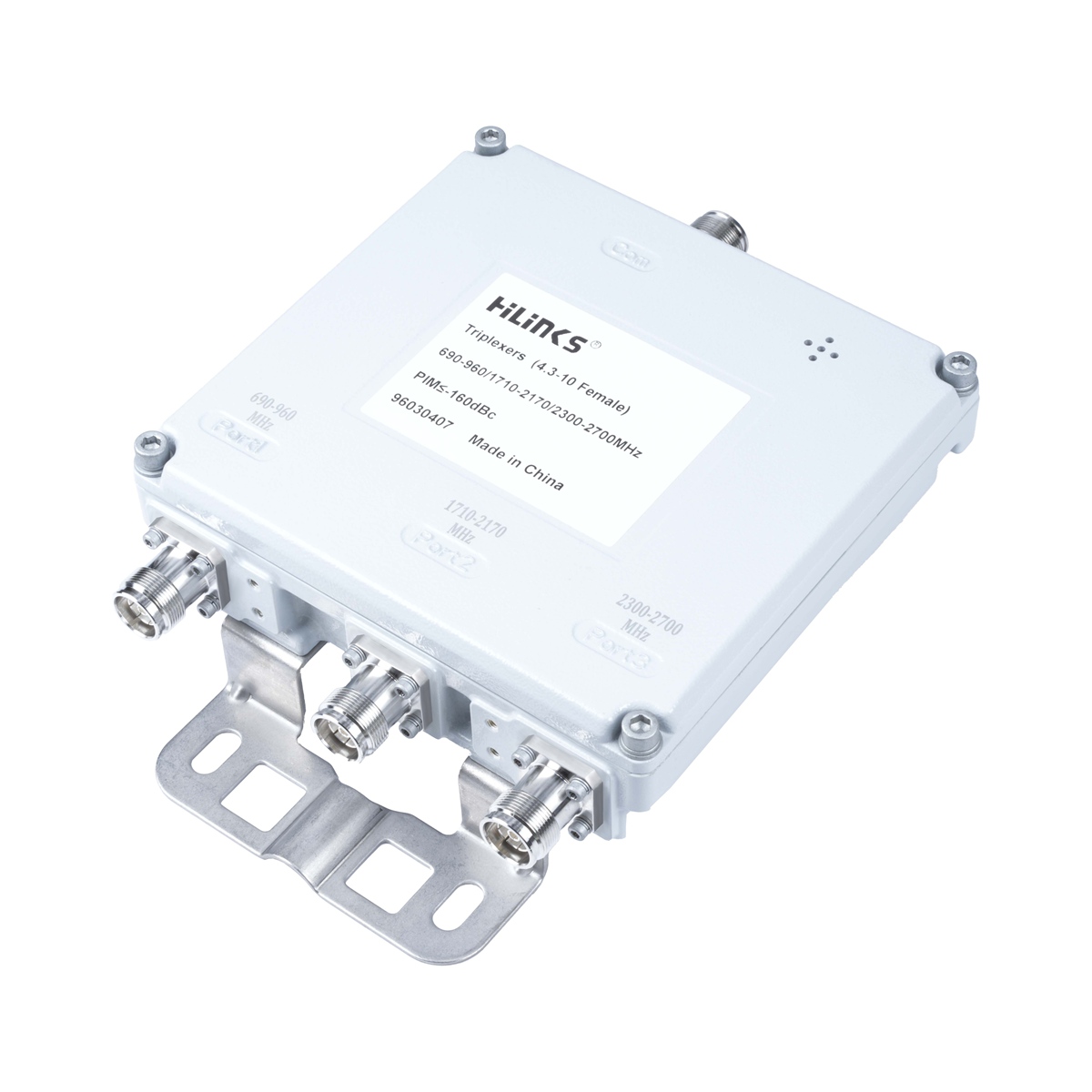

Tri-Band Combiner for BTS/Antenna Systems 96030407
|
Electrical Specifications |
||
|
Type No. |
4.3-10 Female |
96030407 |
|
Frequency Range (MHz) |
Band1 Band2 Band3 |
690-960 1710-2170 2300-2700 |
|
Insertion Loss (dB) |
Port1 Port2 Port3 |
≤0.3 ≤0.5 ≤0.5 |
|
Isolation (dB) |
≥60 |
|
|
Return Loss (dB) |
≥20 |
|
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-160 |
|
|
DC/AISG Bypass |
Port1-COM Port2-COM Port3-COM |
Pass Pass Pass |
|
Input Power (W) |
≤300 |
|
|
Impedance (Ω) |
50 |
|
|
Mechanical Specifications |
|
|

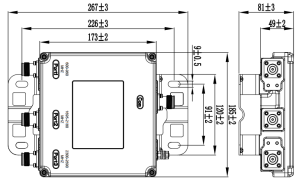

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
185x173x49 |
|
Weight (including connectors and mounting bracket) (kg) |
2.9 |
|
Packing Size(mm) |
330x250x165 |
|
Color |
Light Gray (customized) |
|
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Combines three wide frequency bands (690-960MHz, 1710-2170MHz, 2300-2700MHz) with ultra-low insertion loss (≤0.3-0.5dB).
Typical Application Scenarios
Optimized for multi-band co-siting in 4G/5G base stations (BTS) and antenna systems.
Technical Features
Superior isolation (≥60dB) and return loss (≥20dB) for minimal signal interference.
Industrial-grade design with extended temperature range (-40°C to +65°C) for harsh environments.
High-power handling (≤300W) with ultra-low PIM (≤-160dBc) for carrier-grade performance.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
8kA; 8/20 μs pulse |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50801.5519050 |
Hose clamp |
