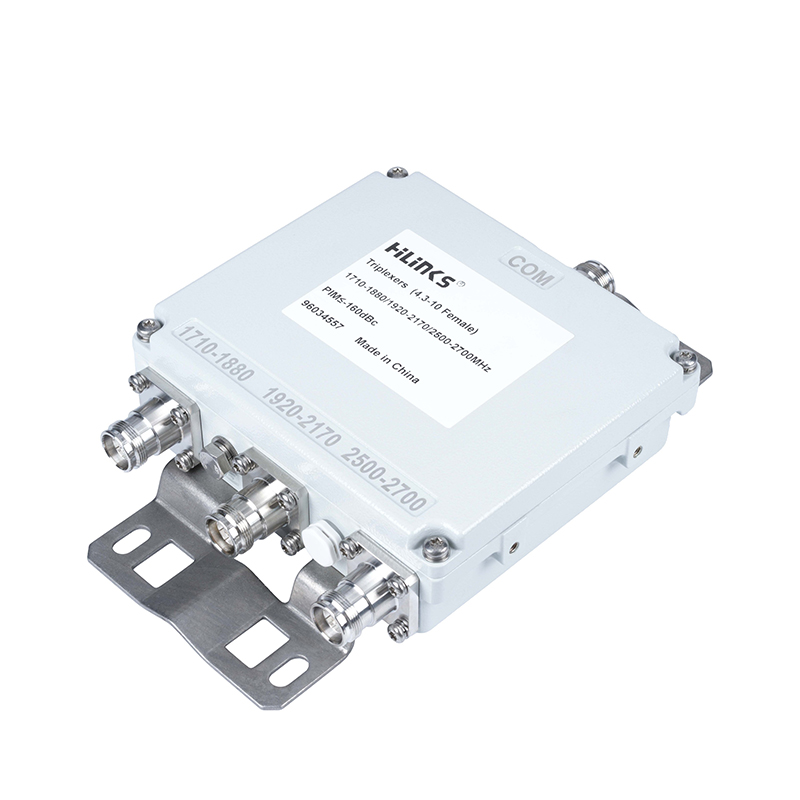

Triple-Band Combiner for BTS/Antenna Co-Siting 9603455X
Electrical Specifications
Electrical Specifications | ||||
Type No. |
4.3-10 Female |
96034553 Single |
96034555 Single |
96034557 Single |
96034554 Double |
96034556 Double |
96034558 Double |
||
Frequency Range (MHz) |
Band1 Band2 Band3 |
1710-1880 1920-2170 2500-2700 |
||
Insertion Loss (dB) |
Port1 Port2 Port3 |
≤0.3 ≤0.3 ≤0.3 |
||
Isolation (dB) |
≥50 |
|||
Return Loss (dB)/VSWR |
≥20/≤1.22 |
|||
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
≤-155 |
≤-160 |
|
DC/AISG Bypass |
Pass |
|||
Input Power (W) |
≤250 |
|||
Impedance (Ω) |
50 |
|||
Mechanical Specifications
Mechanical Specifications | |

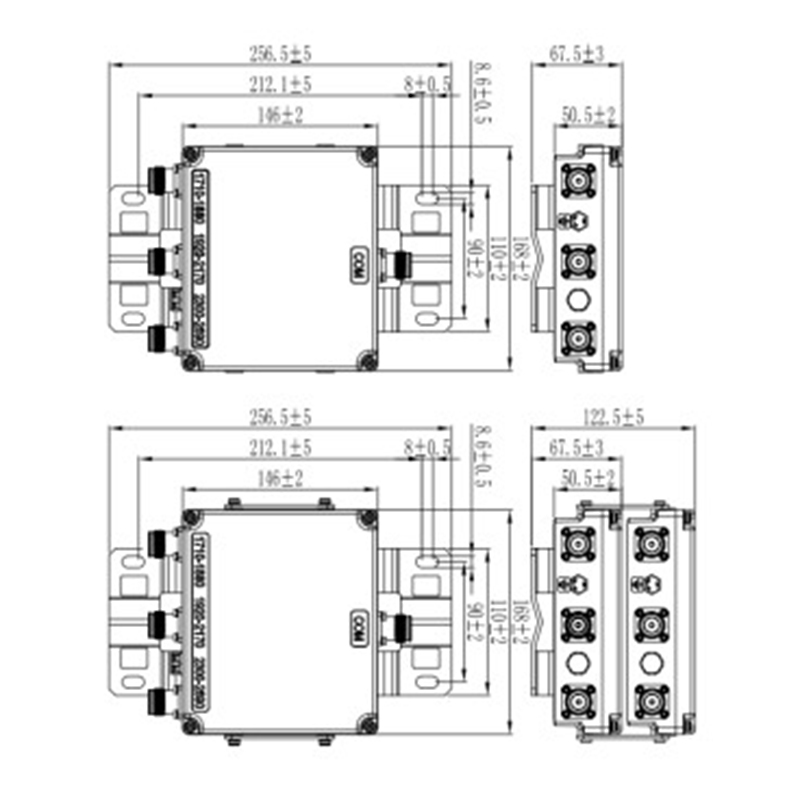

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
Single:168X146X50.5 Double:168X146X105.5 |
Weight (including connectors and mounting bracket) (kg) |
Single :2.4 Double :4.8 |
Packing Size(mm) |
Single:315X235X150 Double:315X235X191 |
Color |
Light Gray (customized) |
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Combines three frequency bands (1710-1880MHz, 1920-2170MHz, 2500-2700MHz) efficiently.
Supports DC/AISG bypass for flexible configurations.
Provides built-in lightning protection for enhanced safety.
Typical Application Scenarios
Suitable for both indoor and outdoor deployments in diverse environments.
Enables seamless integration in telecom infrastructure with wall or pole mounting options.
Technical Features
Low insertion loss (≤0.3dB per port) and high isolation (≤50dB) for optimal performance.
Robust design with IP67 rating and wide operational temperature range (-25°C to +65°C).
Delivers high power handling (≤250W) and ultra-low PIM3 (≤-150dBc) for reliable operation.
Environmental Specifications
Environmental Specifications | |
Operational Temperature (°C) |
-25 to +65 |
Storage temperature(°C) |
-40 to +85 |
Operational Humidity (%) |
≤95 |
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
Lightning Protection |
5kA; 8/20 μs pulse |
Accessories (order separately)
Accessories (order separately) | |
Type No. |
Description |
50801.5519050 |
Hose clamp |
