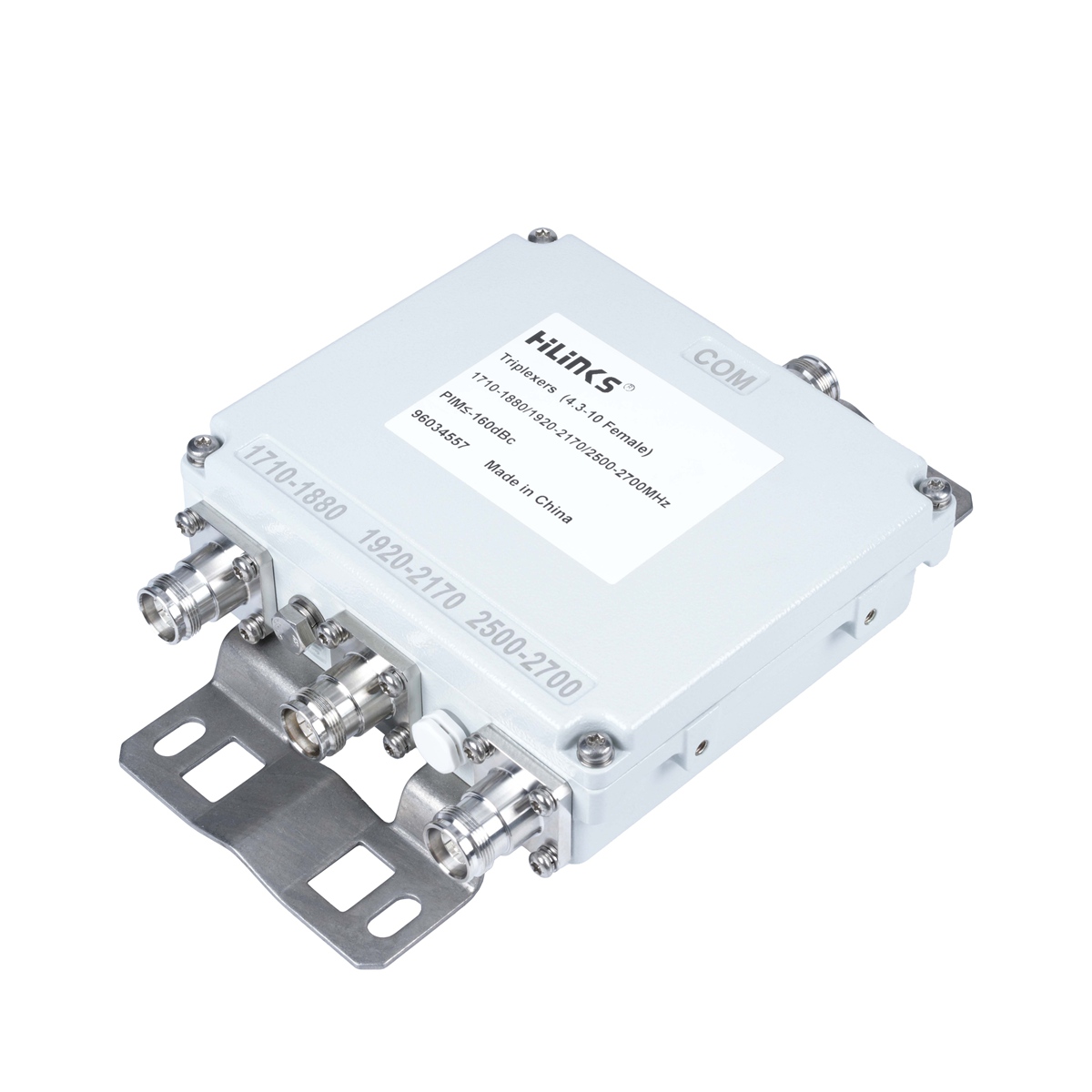

Triple-Band Combiner for BTS/Antenna Co-Siting 9603455X
|
Electrical Specifications |
||||
|
Type No. |
4.3-10 Female |
96034553 Single |
96034555 Single |
96034557 Single |
|
96034554 Double |
96034556 Double |
96034558 Double |
||
|
Frequency Range (MHz) |
Band1 Band2 Band3 |
1710-1880 1920-2170 2500-2700 |
||
|
Insertion Loss (dB) |
Port1 Port2 Port3 |
≤0.3 ≤0.3 ≤0.3 |
||
|
Isolation (dB) |
≥50 |
|||
|
Return Loss (dB)/VSWR |
≥20/≤1.22 |
|||
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
≤-155 |
≤-160 |
|
|
DC/AISG Bypass |
Pass |
|||
|
Input Power (W) |
≤250 |
|||
|
Impedance (Ω) |
50 |
|||
|
Mechanical Specifications |
|
|

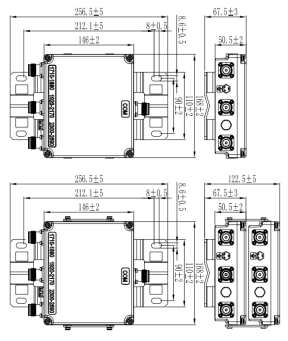

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
Single:168X146X50.5 Double:168X146X105.5 |
|
Weight (including connectors and mounting bracket) (kg) |
Single :2.4 Double :4.8 |
|
Packing Size(mm) |
Single:315X235X150 Double:315X235X191 |
|
Color |
Light Gray (customized) |
|
Mounting |
Pole (clamps included for Ф35-135mm pole) or Wall Mounted |
Main Functions
Combines three frequency bands (1710-1880MHz, 1920-2170MHz, 2500-2700MHz) efficiently.
Typical Application Scenarios
Ideal for co-locating multiple wireless systems at BTS or antenna sites.
Technical Features
Low insertion loss (≤0.3dB per port) and high isolation (≤50dB) for optimal performance.
Robust design with IP67 rating and wide operational temperature range (-25°C to +65°C).
Delivers high power handling (≤250W) and ultra-low PIM3 (≤-150dBc) for reliable operation.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-25 to +65 |
|
Storage temperature(°C) |
-40 to +85 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP67 (Indoor and Outdoor) |
|
Lightning Protection |
5kA; 8/20 μs pulse |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50801.5519050 |
Hose clamp |
