Power Splitter

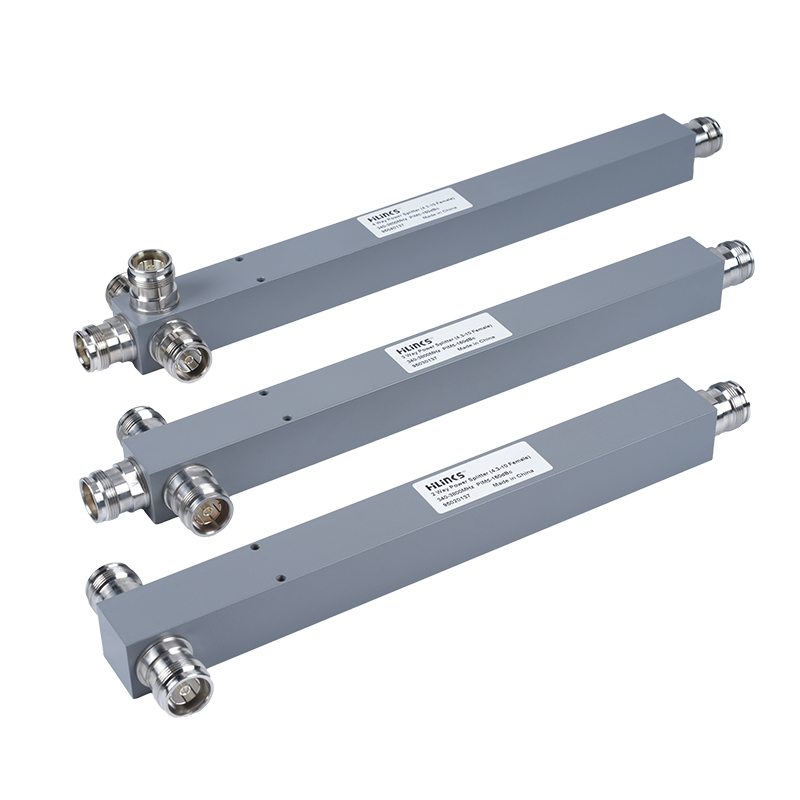

Ultra-Wideband 4.3-10 Power Splitter (340-3800MHz) 950X013X
|
Electrical Specifications |
|||||
|
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
95020133 |
95030133 |
95040133 |
|
≤-155 |
95020135 |
95030135 |
95040135 |
||
|
≤-160 |
95020137 |
95030137 |
95040137 |
||
|
Frequency Range (MHz) |
340-3800 |
||||
|
For connecting…antennas |

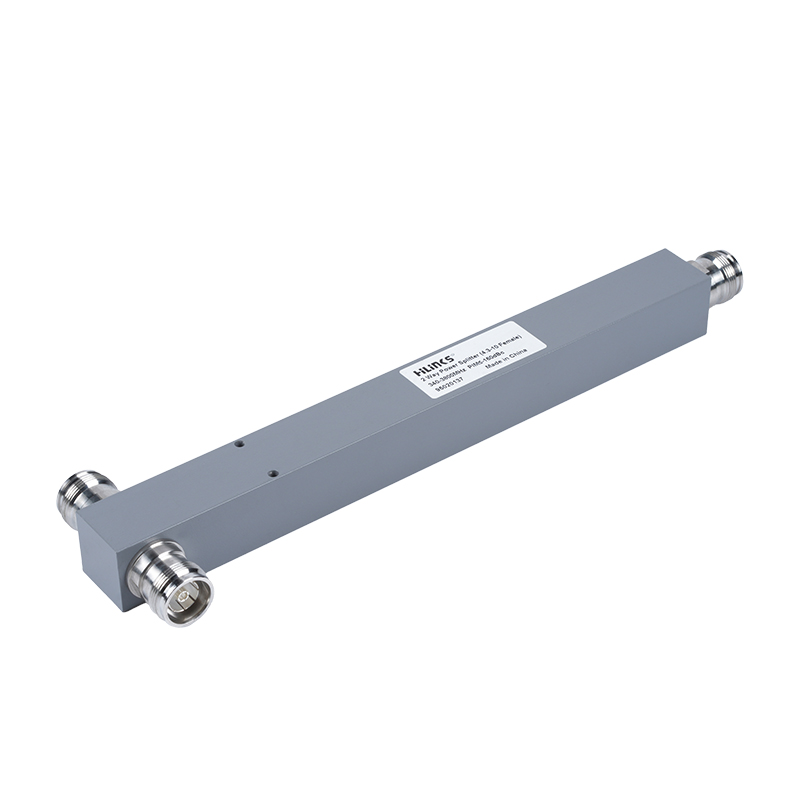

2 Way |

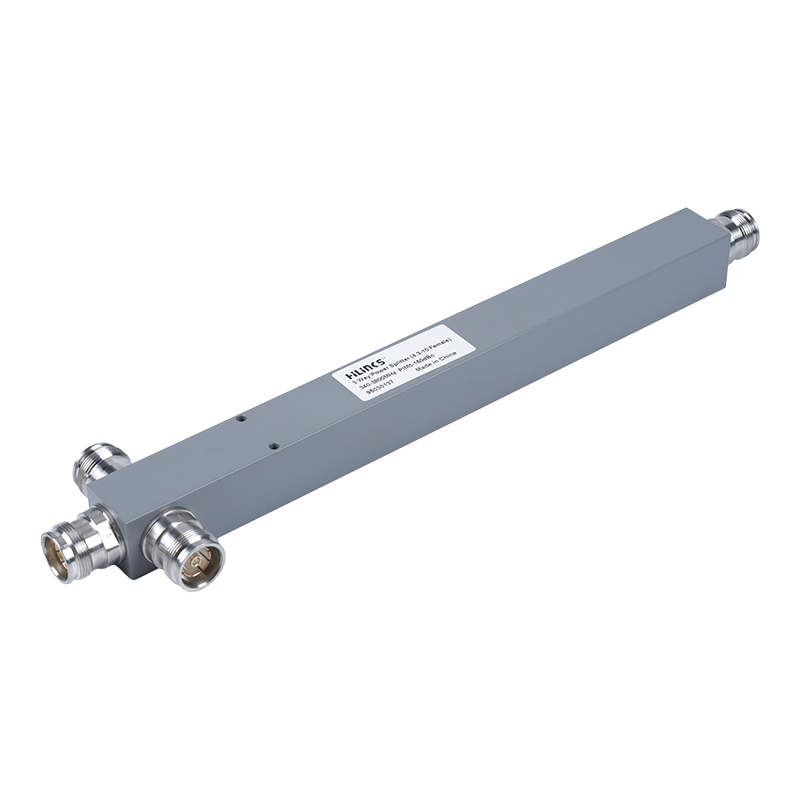

3 Way |

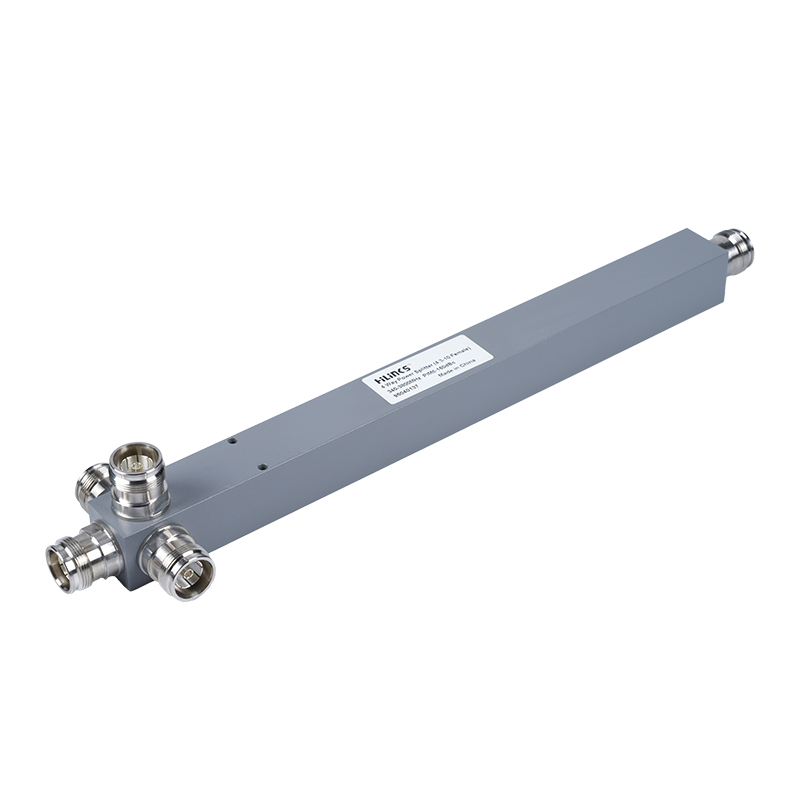

4 Way |
||
|
Distribution Loss(dB) |
3.0 |
4.8 |
6.0 |
||
|
Insertion Loss (dB) |
≤0.3 |
≤0.6 |
≤0.6 |
||
|
Return Loss (dB) |
≥19@340-2700&≥18@3400-3800 |
||||
|
PIM Test Bands |
900M/1800M/2100M/2600M |
||||
|
Input Power (W) |
≤300 |
||||
|
Peak Power (W) |
≤1500 |
||||
|
Impedance (Ω) |
50 |
||||
|
Mechanical Specifications |
|||
|

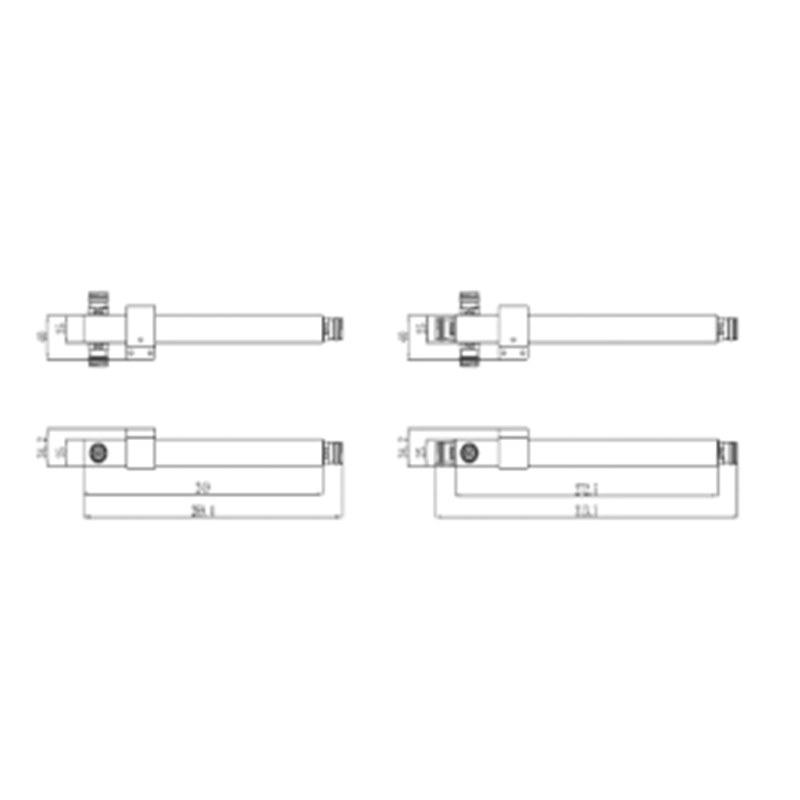

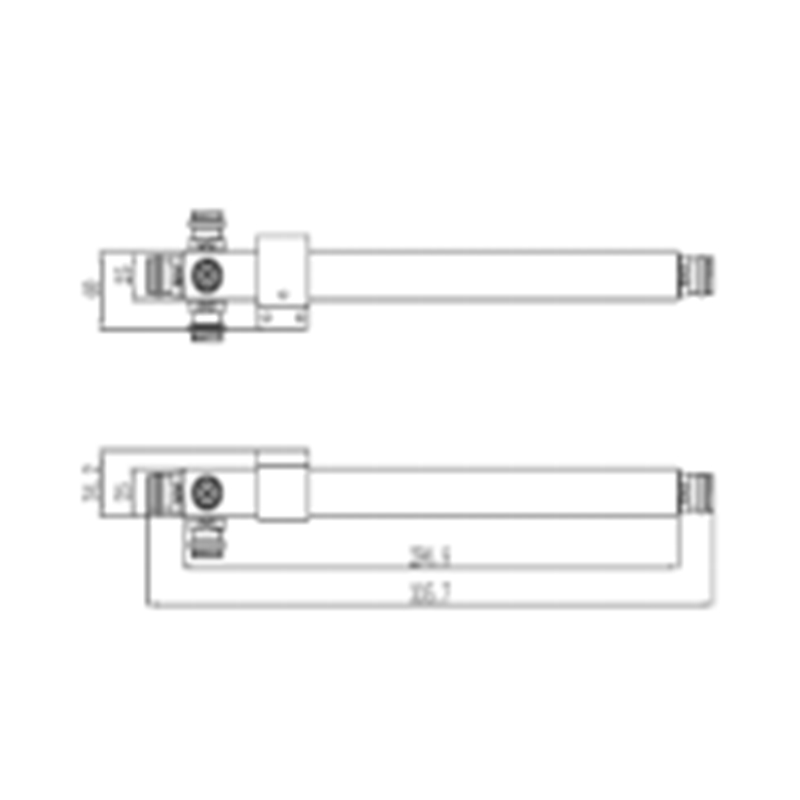

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
249x25x25 |
272.5x25x25 |
294.9x25x25 |
|
Weight (including connectors and mounting bracket) (kg) |
0.52 |
0.58 |
0.64 |
|
Packing Size(mm) |
290x85x50 |
335x85x50 |
355x85x65 |
|
Connector Type |
4.3-10 Female (Twist head) |
||
|
Coupling Nut Proof Torque |
≤4.5N.m |
||
|
Color |
Light Gray (Customized) |
||
|
Mounting |
Wall Mounted |
||
Main Functions
Distributes RF signals across 340-3800MHz with ultra-low insertion loss (≤0.6dB).
Provides 2-way, 3-way, and 4-way splitting options with precise distribution loss (3.0dB to 6.0dB).
Ensures minimal signal distortion with ultra-low PIM (≤-160dBc) for high-fidelity networks.
Typical Application Scenarios
5G NR and LTE-A systems requiring wideband signal splitting in dense urban deployments.
Indoor/outdoor DAS installations needing rugged, IP65-rated splitters for harsh environments.
Multi-operator shared sites where 4.3-10 connectors ensure standardized interoperability.
Technical Features
Square tube compact design (249x25x25mm to 294.9x25x25mm) for space-constrained installations.
4.3-10 Female twist-head connectors with torque control (≤4.5N.m) for reliable connections.
High power handling (≤1500W peak) with wide temperature range (-25°C to +65°C) for global use.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-25 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
30505.0043051 |
Bracket |
|
50501.0330100 |
Screw |
