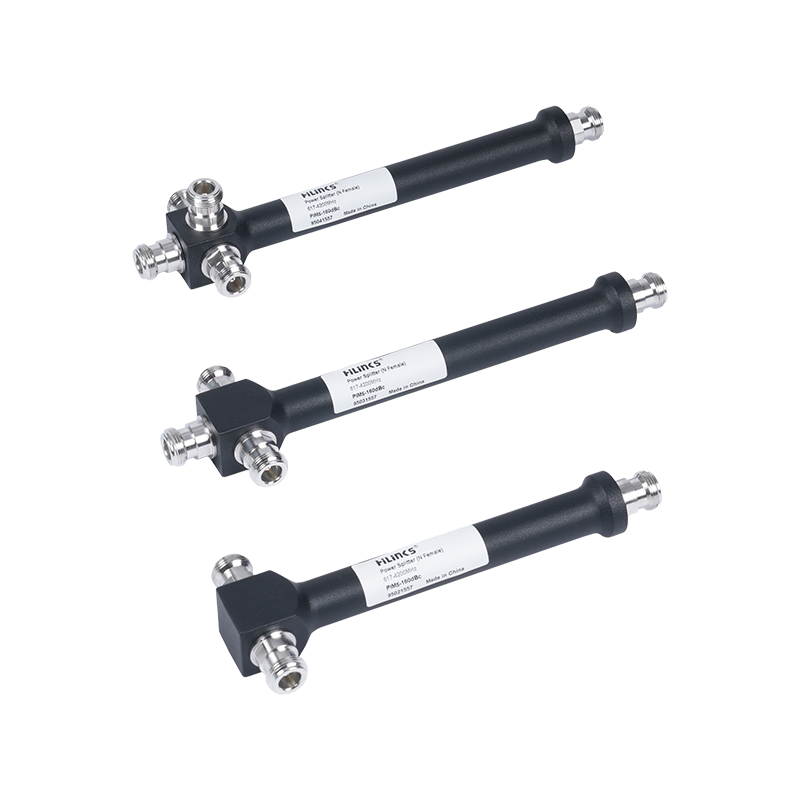

Ultra-Wideband N-Type Power Splitter (617-4200MHz) 950X155X
|
Electrical Specifications |
|||||
|
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
95021553 |
95031553 |
95041553 |
|
≤-155 |
95021555 |
95031555 |
95041555 |
||
|
≤-160 |
95021557 |
95031557 |
95041557 |
||
|
Frequency Range (MHz) |
617-4200 |
||||
|
For connecting…antennas |
2 Way |
3 Way |
4 Way |
||
|
Distribution Loss(dB) |
3.0 |
4.8 |
6.0 |
||
|
Insertion Loss (dB) |
≤0.3 |
≤0.4 |
≤0.5 |
||
|
Return Loss (dB) |
≥19 |
||||
|
PIM Test Bands |
900M/1800M/2100M/2600M |
||||
|
Input Power (W) |
≤300 |
||||
|
Peak Power (W) |
≤800 |
||||
|
Impedance (Ω) |
50 |
||||
|
Mechanical Specifications |
|||
|

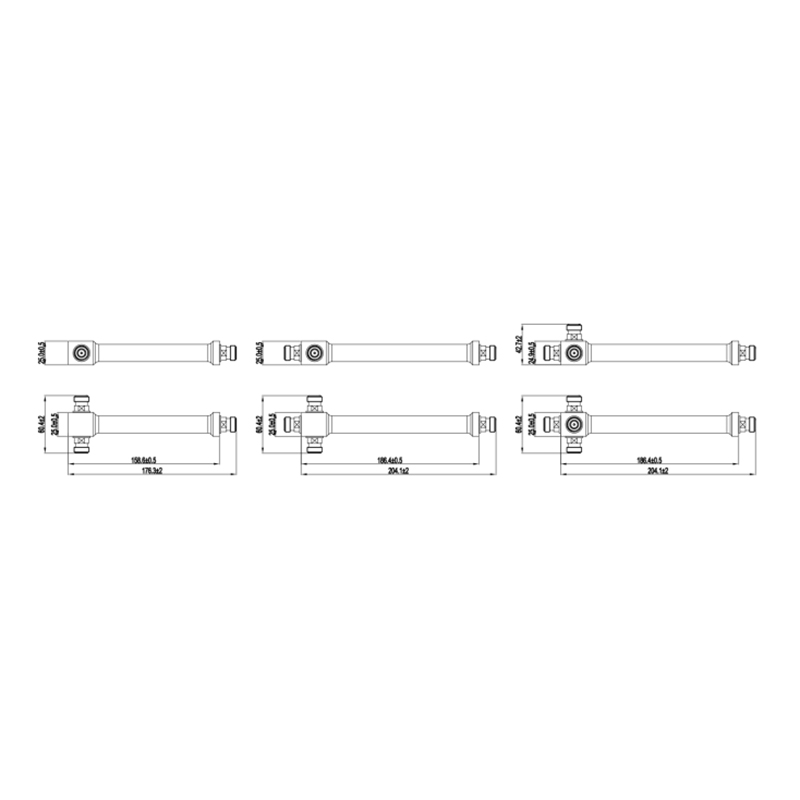

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
158.6x25x25 |
186.4x25x25 |
186.4x25x25 |
|
Weight (including connectors and mounting bracket) (kg) |
0.18 |
0.2 |
0.3 |
|
Packing Size(mm) |
200x75x40 |
230x75x40 |
230x75x60 |
|
Connector Type |
N Female (Twist head) |
||
|
Coupling Nut Proof Torque |
≤4.5N.m |
||
|
Color |
Light Gray (Customizable) |
||
|
Mounting |
Wall Mounted |
||
Main Functions
Signal Splitting: Divides a single RF input signal into two or four output paths with specified distribution loss (3.0 dB typical for 2-way, 6.0 dB for 4-way).
Low PIM Signal Distribution: Enables distribution of RF signals while maintaining very low levels of Passive Intermodulation Distortion (PIM3 ≤ -160dBc), critical for modern communication systems.
Impedance Matching: Provides consistent 50-ohm impedance matching between input and output ports to minimize signal reflections (Return Loss ≥19 dB).
Typical Application Scenarios
Cellular Base Stations (Indoor/Outdoor): Used within base stations to split signals from transceivers to multiple antennas across bands like 900MHz, 1800MHz, 2100MHz, and 2600MHz.
In-Building Distributed Antenna Systems (DAS): Splits signals for distribution throughout buildings to ensure coverage, benefiting from the compact size and wide bandwidth.
Public Safety/Multi-Operator Systems: Suitable for systems requiring high power handling (≤300W continuous, ≤800W peak) and ultra-low PIM in shared infrastructure environments, both indoors and outdoors (IP65 rated).
Technical Features
Exceptional PIM Performance: Offers ultra-low Passive Intermodulation levels, with options down to ≤-160dBc (tested @ 2x43 dBm on 900/1800/2100/2600MHz bands).
Compact & Robust Mechanical Design: Features a small, lightweight circular tube form factor (e.g., 158.6x25x25mm, 0.18kg for 2-way) with wall-mounting, IP65 ingress protection, and operation from -25°C to +65°C at ≤95% humidity.
High Power Wideband Operation: Supports a broad frequency range (617-4200MHz) with high input power handling (300W continuous, 800W peak) and low insertion loss (≤0.3 dB to ≤0.5 dB), using N Female twist-head connectors.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-25 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65(Indoor and Outdoor) |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
30505.0037050 |
Bracket |
