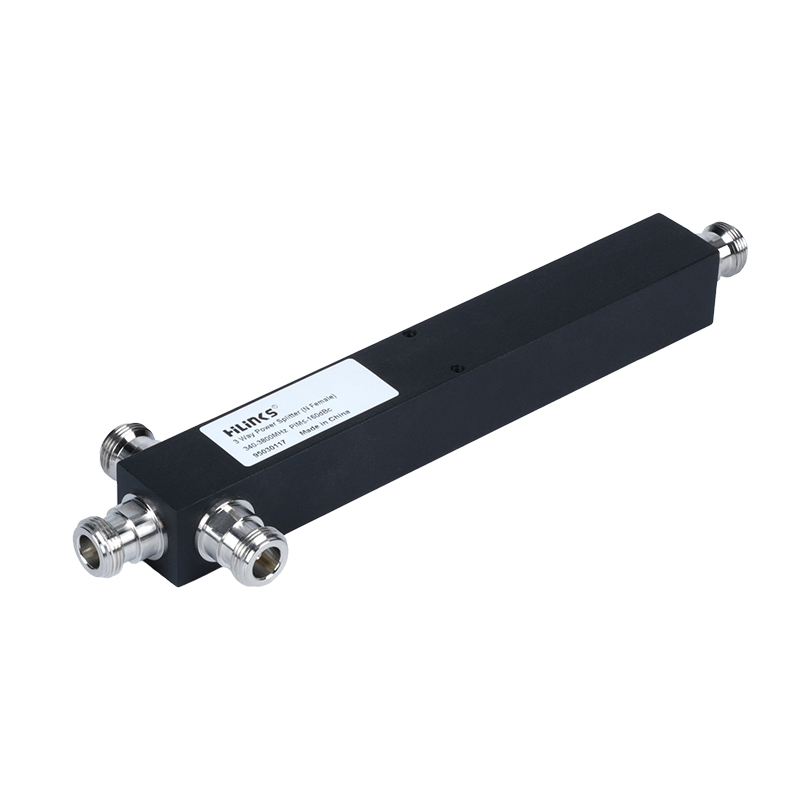

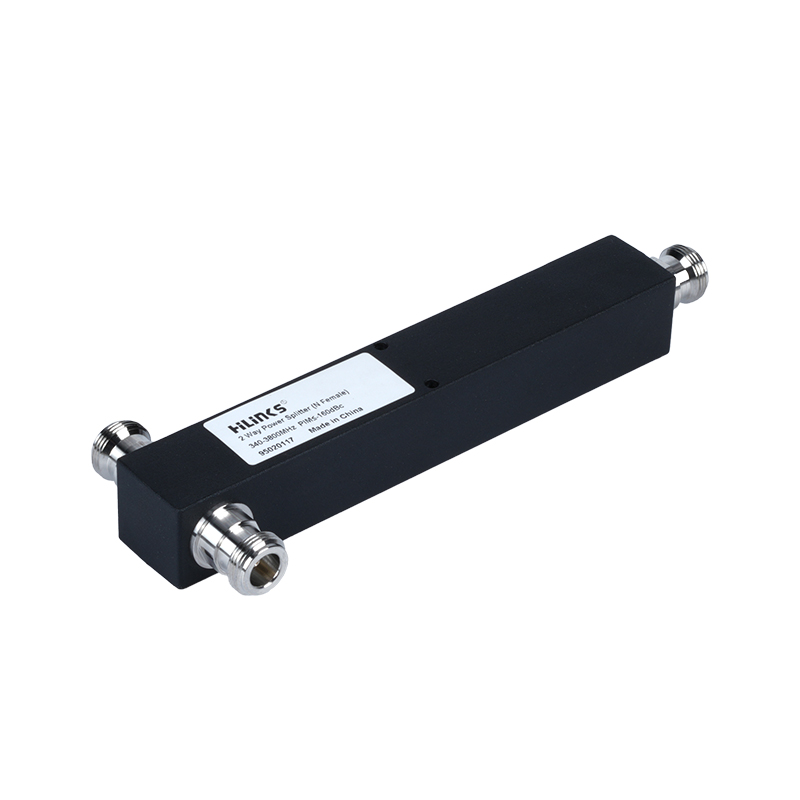

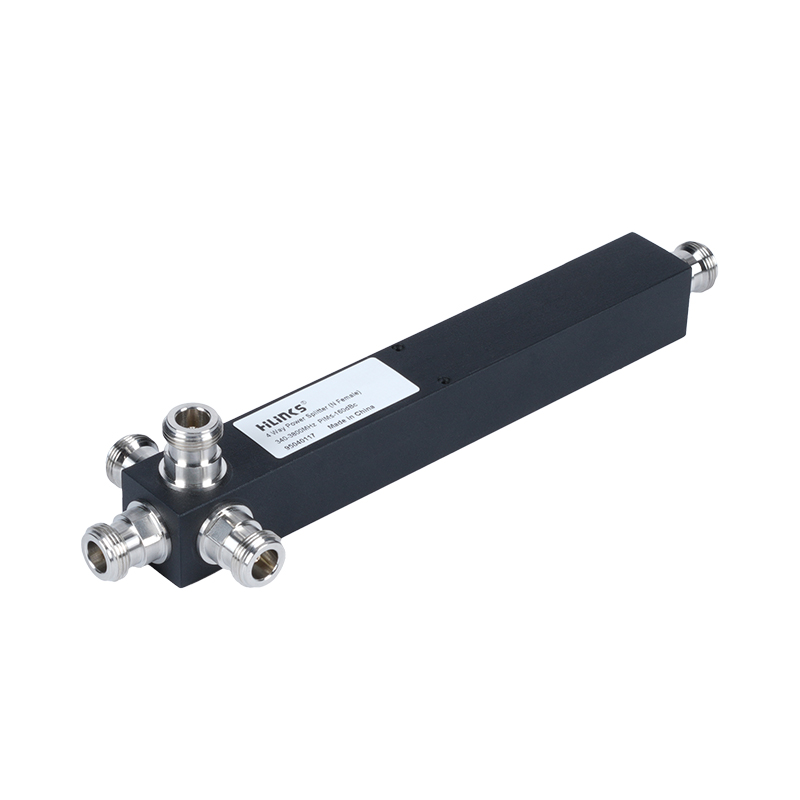

Ultra-Wideband Power Splitter for 340-3800MHz Systems 950X011X
Electrical Specifications
Electrical Specifications | |||||
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
95020113 |
95030113 |
95040113 |
≤-155 |
95020115 |
95030115 |
95040115 |
||
≤-160 |
95020117 |
95030117 |
95040117 |
||
Frequency Range (MHz) |
340-3800 |
||||
For connecting…antennas |
2 Way |
3 Way |
4 Way |
||
Distribution Loss(dB) |
3.0 |
4.8 |
6.0 |
||
Insertion Loss (dB) |
≤0.3 |
≤0.6 |
≤0.6 |
||
Return Loss (dB) |
≥19@340-2700&≥18@3400-3800 |
||||
PIM Test Bands |
900M/1800M/2100M/2600M |
||||
Input Power (W) |
≤300 |
||||
Peak Power (W) |
≤1500 |
||||
Impedance (Ω) |
50 |
||||
Mechanical Specifications
Mechanical Specifications | |||

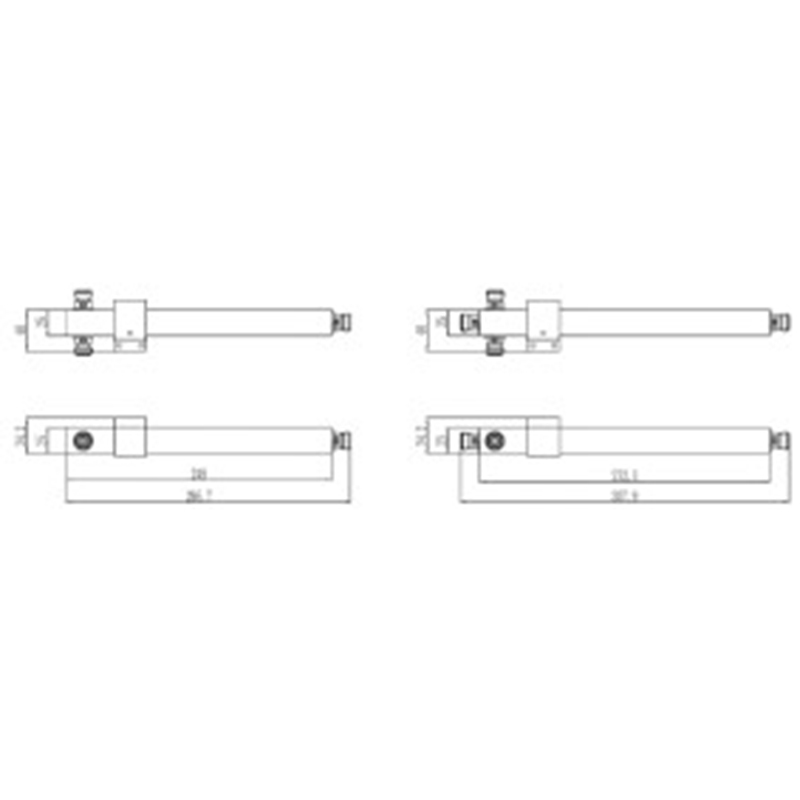

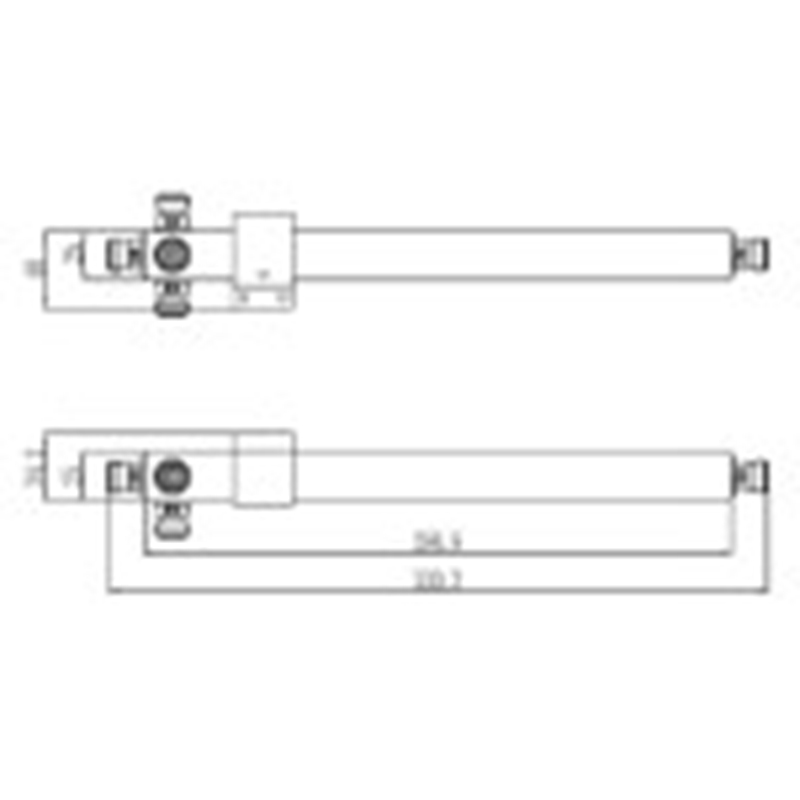

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
249x25x25 |
272.5x25x25 |
294.9x25x25 |
Weight (including connectors and mounting bracket) (kg) |
0.46 |
0.52 |
0.57 |
Packing Size(mm) |
290x85x50 |
335x85x50 |
355x85x65 |
Connector Type |
N Female (Twist head) |
||
Coupling Nut Proof Torque |
≤4.5N.m |
||
Color |
Light Gray (Customized) |
||
Mounting |
Wall Mounted |
||
Main Functions
Splits RF signals across 340-3800MHz with minimal insertion loss (≤0.6dB).

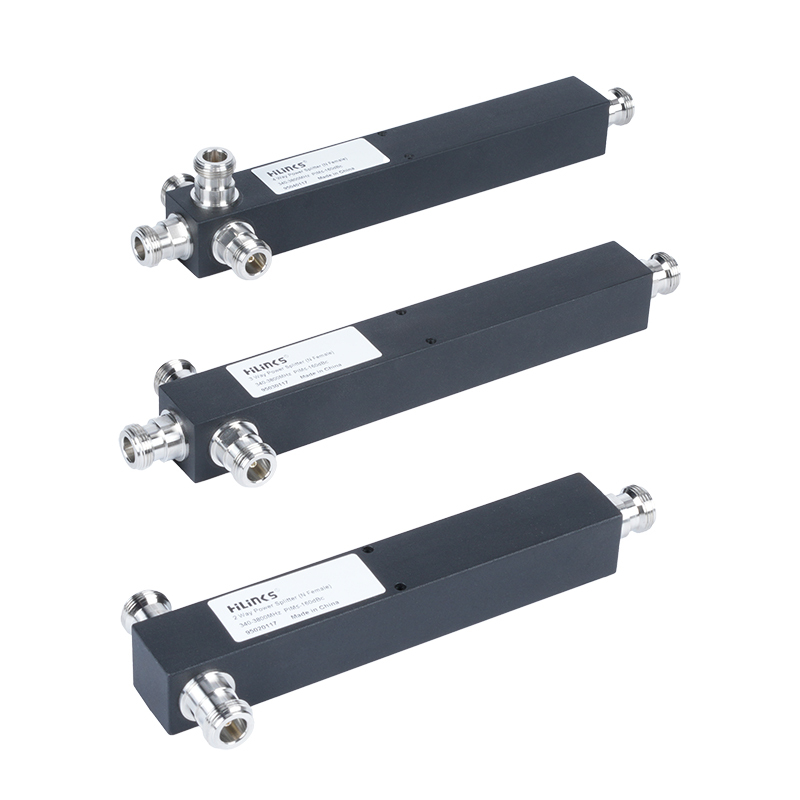

Supports 2-way, 3-way, and 4-way configurations with precise distribution loss (3.0dB to 6.0dB).
Ensures ultra-low passive intermodulation (PIM ≤ -160dBc) for high-performance networks.
Typical Application Scenarios
5G/LTE DAS systems
requiring wideband signal distribution in stadiums or large venues.
Outdoor telecom infrastructure
needing rugged, IP65-rated splitters for harsh environments.
Multi-antenna setups
(e.g., MIMO) where low PIM and high power handling (≤1500W peak) are critical.
Technical Features
Square tube mechanical design
(249x25x25mm to 294.9x25x25mm) for space-efficient installations.
N Female twist-head connectors
with torque-proof coupling (≤4.5N.m) for secure connections.
Wide temperature tolerance
(-25°C to +65°C) and humidity resistance (≤95%) for global deployment.
Environmental Specifications
Environmental Specifications | |
Operational Temperature (°C) |
-25 to +65 |
Operational Humidity (%) |
≤95 |
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
Accessories (order separately)
Accessories (order separately) | |
Type No. |
Description |
30505.0043051 |
Bracket |
50501.0330100 |
Screw |
