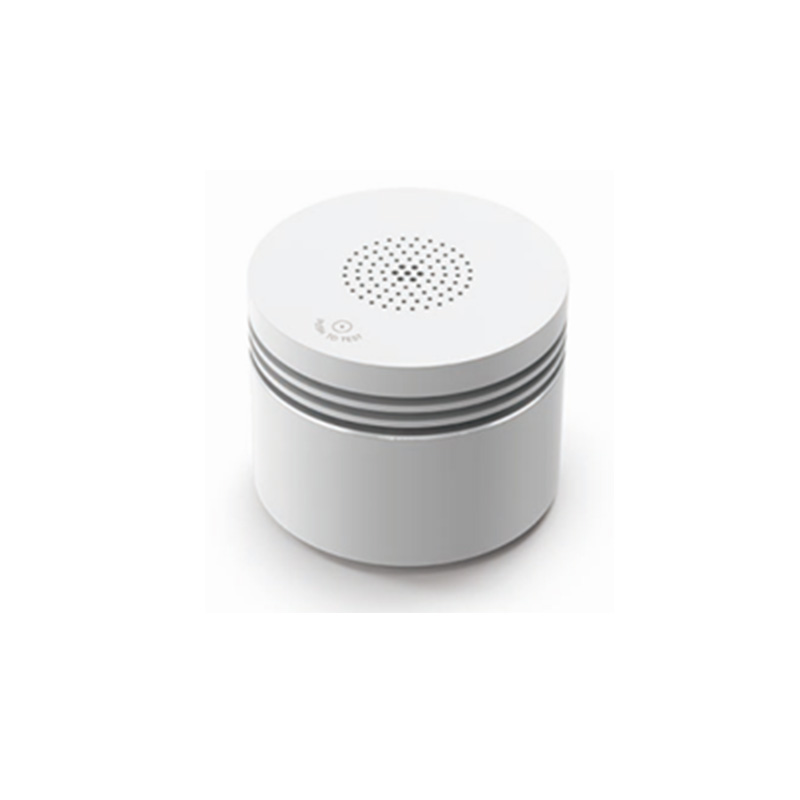

Wi-Fi Enabled Battery-Powered Smoke Sensor 94700050
|
Electrical Specifications |
|
|
Product number |
94700050 |
|
Communication protocol |
Wi-Fi |
|
Wi-Fi Standard |
802.11b/g/n |
|
Channel |
1-14@2.4GHz |
|
Transmission Power |
≤20dBm |
|
Communication Distance |
70 m (Open Air) |
|
Sensitivity |
≥-91dBm |
|
Working Voltage |
3V (2*CR123A battery) |
|
Low power indication |
2.6V±0.1V |
|
Standby current |
≤15uA |
|
Alarm current |
≤400mA |
|
Mechanical Specifications |
|
|
Dimensions (excluding connectors and mounting bracket) (mm) |
Ø64x51 mm |
|
Battery life |
4 months |
|
Installation type |
Ceiling mounted |
|
Radome Material |
ABS (UV Stabilized) |
|
Reflector Material and Color |
PCB, White |
Main Functions
The 94700050 is a smart smoke sensor designed to detect smoke and trigger both a local audible alarm and a remote network alert via Wi-Fi, providing dual-notification for enhanced safety. It operates on a low-power Wi-Fi protocol (802.11b/g/n), allowing it to transmit alarm signals directly to a network without the need for an additional gateway. Its built-in low-power indication system alerts users when the battery voltage drops to 2.6V±0.1V, ensuring timely maintenance and continuous protection.
Typical Application Scenarios
This sensor is ideal for integration into smart home systems, where it can provide real-time smoke detection and send instant notifications to homeowners' smartphones or central monitoring systems. It is also well-suited for use in small commercial spaces such as offices, retail shops, and hotel rooms, where ceiling-mounted, wireless sensors simplify installation and reduce wiring costs. Furthermore, its standalone Wi-Fi capability makes it applicable for retrofitting into existing buildings where conventional wired alarm systems are impractical or too expensive to install.
Technical Features
The device supports 2.4GHz Wi-Fi channels 1-14, with a transmission power of ≤20dBm and a sensitivity of ≥-91dBm, ensuring reliable communication over distances up to 70 meters in open air. It is powered by two CR123A batteries, providing a standby current of just ≤15μA and an operational battery life of approximately 4 months under normal conditions. With compact dimensions of Ø64x51 mm, a loud 85dB buzzer, an ABS UV-stabilized housing, and an operational temperature range of -10°C to +55°C, it combines durability, ease of installation, and effective performance for modern wireless safety applications.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-10 to +55 |
|
Alarm Mode |
Buzzer alarm, network alarm |
|
Buzzer Sound Pressure Level |
85db |
