Wideband 340-3800MHz Hybrid Combiner with Low PIM 95322XXX
|
Electrical Specifications |
|||||
|
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
95322083 |
95322103 |
95322123 |
|
≤-155 |
95322085 |
95322105 |
95322125 |
||
|
≤-160 |
95322087 |
95322107 |
95322127 |
||
|
Frequency Range (MHz) |
340-3800 |
||||
|
Insertion Loss (dB) |
3.1±1.2@340-698MHz 3.1±0.6@698-3800MHz |
||||
|
Isolation (dB) |
≥26 |
||||
|
VSWR (dB) |
< 1.25 |
||||
|
Input Power (W) |
<300 |
<300 |
<500 |
||
|
Peak Power (W) |
<800 |
<1500 |
<2000 |
||
|
Impedance (Ω) |
50 |
||||
|
Mechanical Specifications |
|||
|

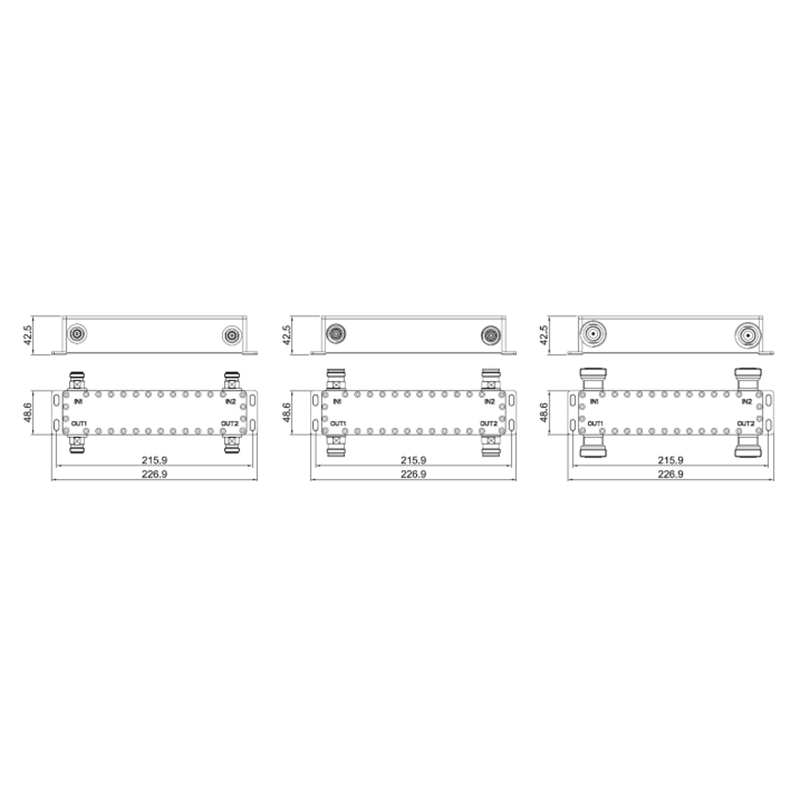

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
226.9x48.6x42.5 |
||
|
Weight (including connectors and mounting bracket) (kg) |
1.0 |
1.3 |
1.5 |
|
Connector Type |

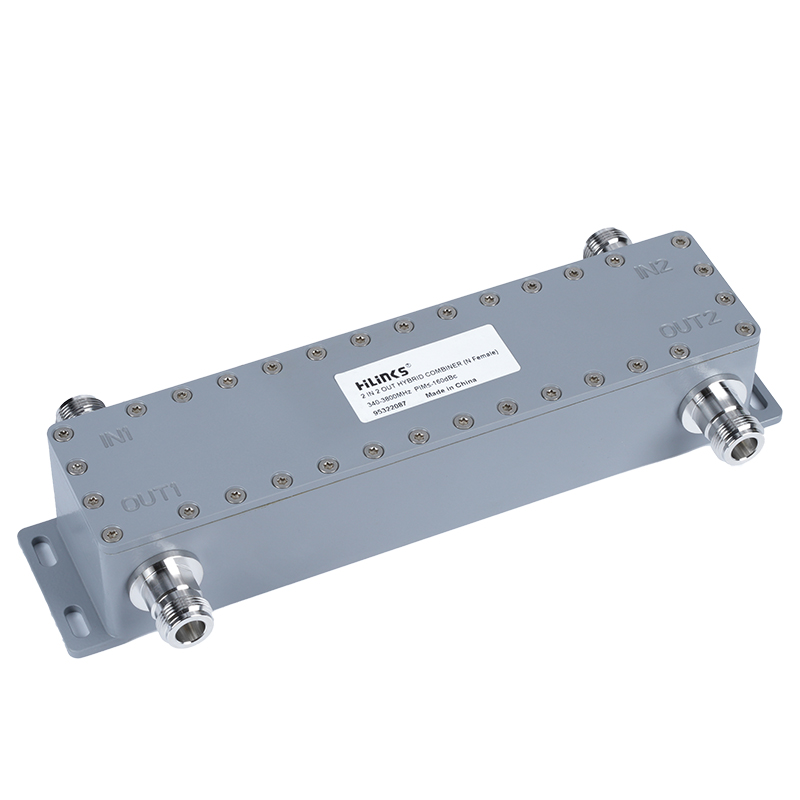

N Female |

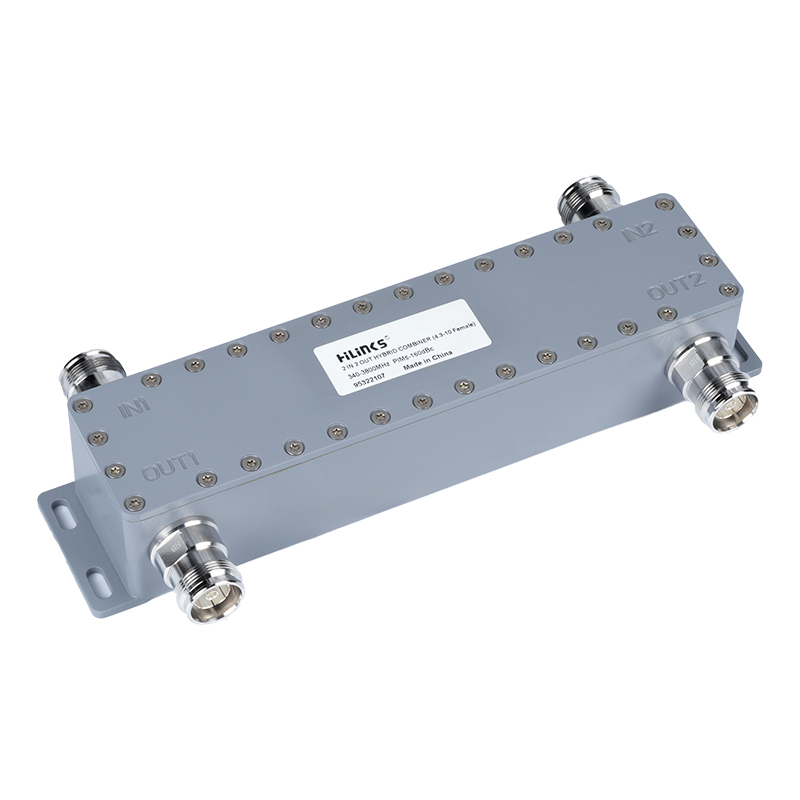

4.3-10 Female |

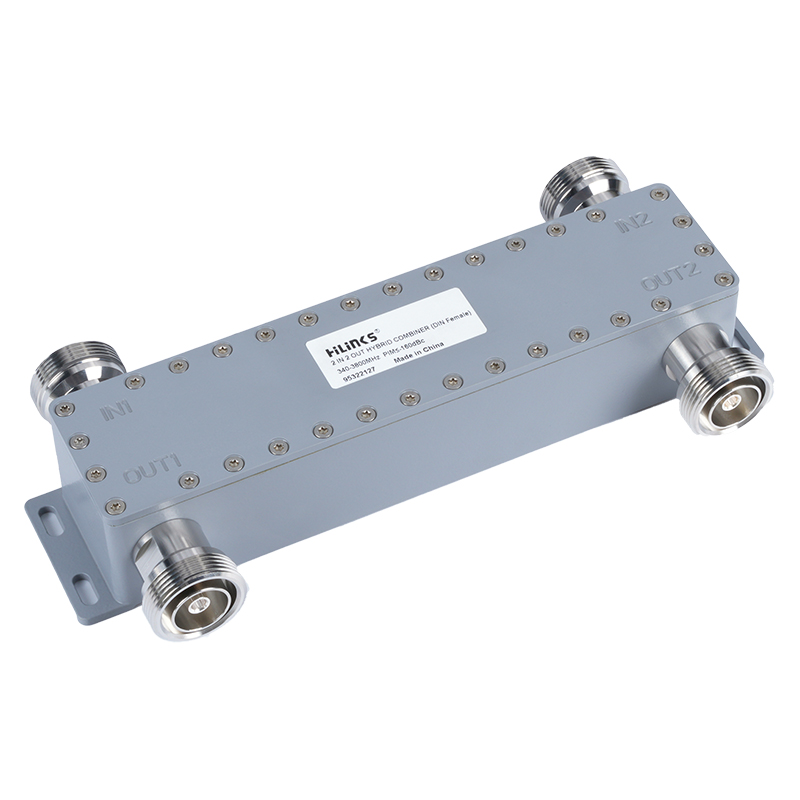

7-16 Female |
|
Packing Size(mm) |
280x150x95 |
||
|
Color |
Light Gray (Customized) |
||
|
Mounting |
Wall Mounted |
||
Main Functions
Multi-Signal Combining: Merges two input signals into a single output with ultra-low insertion loss (≤0.6dB@698-3800MHz), enabling efficient spectrum aggregation for multi-carrier systems.
Phase-Sensitive Isolation: Maintains ≥26dB isolation between input ports to prevent signal interference while preserving phase relationships for advanced MIMO configurations.
Remote Antenna Control: Supports DC/AISG pass-through via integrated bypass, facilitating tower-mounted amplifier (TMA) management without disrupting RF paths.
Typical Application Scenarios
Multi-Operator Cellular Sites: Enables spectrum sharing on crowded towers by combining 2G/3G/4G/5G signals (340-3800MHz) from different carriers onto one antenna system.
Outdoor DAS Deployments: Optimizes stadiums or campus networks with IP65-rated resilience (-35°C to +65°C), handling high power for dense user environments.
Public Safety Communications: Critical for emergency response systems requiring reliable signal combining in harsh environments, leveraging lightning protection and rugged connectors.
Technical Features
Ultra-Wideband Performance: Covers 340-3800MHz (including 5G n78, LTE, IoT) with VSWR <1.25 and configurable ultra-low PIM (≤-150/-155/-160dBc options).
High-Efficiency Design: Delivers minimal insertion loss (≤1.2dB@340-698MHz; ≤0.6dB@698-3800MHz) and high isolation (≥26dB) for interference-free operation.
Scalable Power Options: Three power tiers with connector-specific handling:
N Female: 300W cont./800W peak
4.3-10 Female: 300W cont./1500W peak
7-16 Female: 500W cont./2000W peak
Compact 226.9×48.6×42.5mm housing (1.0–1.5kg) supports wall-mount deployment.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-35 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
