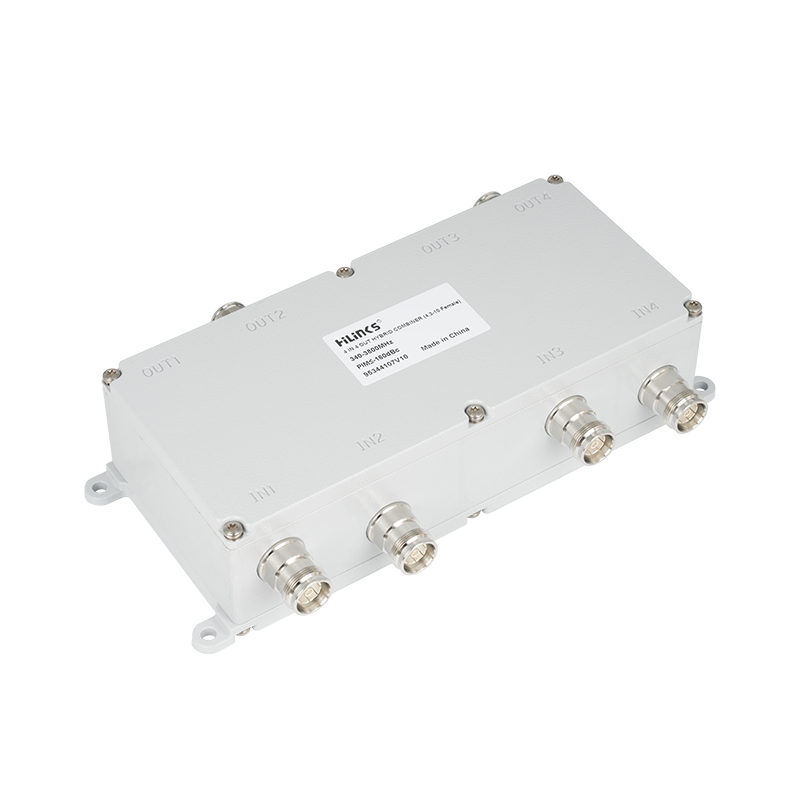

Wideband 340-3800MHz Hybrid Combiner with Low PIM 95344XXXV10
|
Electrical Specifications |
|||||
|
Type No. |
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
95344083V10 |
95344103V10 |
95344123V10 |
|
≤-155 |
95344085V10 |
95344105V10 |
95344125V10 |
||
|
≤-160 |
95344087V10 |
95344107V10 |
95344127V10 |
||
|
Frequency Range (MHz) |
340-3800 |
||||
|
Insertion Loss (dB) |
6.1±1.8@340-698MHz,6.1±1.5@698-2700MHz,6.1±1.8@2700-3800MHz |
||||
|
Isolation (dB) |
≥23@340-698MHz, ≥25@698-2700MHz, ≥23@2700-3800MHz, |
||||
|
Return Loss (dB)/VSWR |
≤-19/1.25:1 |
||||
|
Input Power (W) |
<300 |
<300 |
<500 |
||
|
Peak Power (W) |
<800 |
<1500 |
<2000 |
||
|
Impedance (Ω) |
50 |
||||
|
Mechanical Specifications |
|||
|

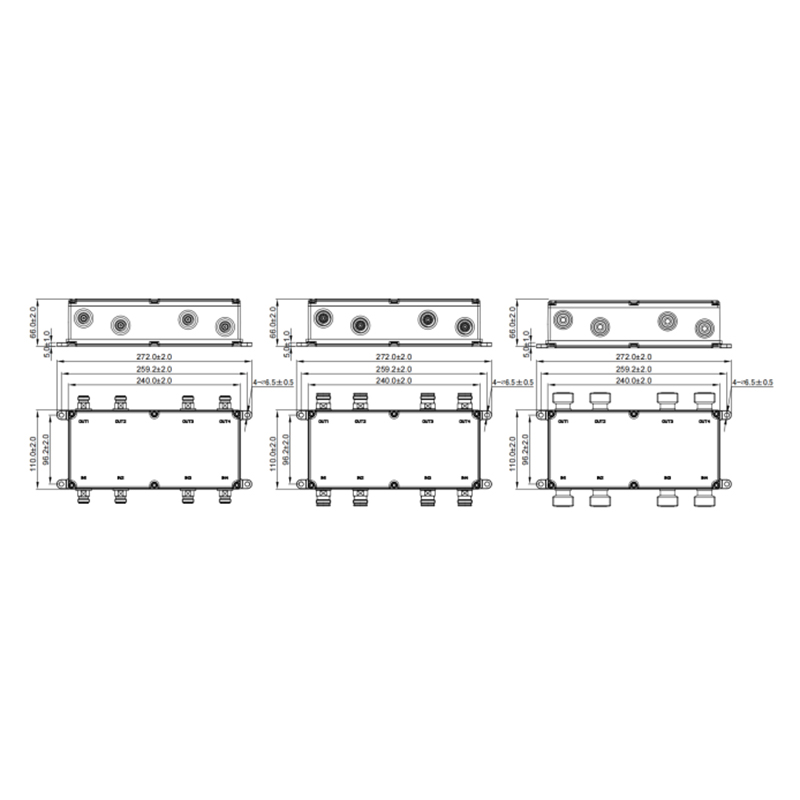

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
272x110x66 |
||
|
Weight (including connectors and mounting bracket) (kg) |
2.3 |
2.4 |
2.8 |
|
Connector Type |
N Female |
4.3-10 Female |
7-16 Female |
|
Packing Size(mm) |
350x240x145 |
||
|
Color |
Light Gray (Customizable) |
||
|
Mounting |
Wall Mounted |
||
Main Functions
Multi-Band Signal Combining: Merges two input signals across 340-3800MHz (covering 5G/LTE/UMTS) into a single output with frequency-optimized insertion loss (6.1dB ±1.5-1.8dB).
Interference Isolation: Maintains ≥23-25dB port isolation (frequency-dependent) to prevent cross-talk between combined signals while preserving signal integrity.
High-Power Handling: Supports connector-specific power levels (up to 500W continuous/2000W peak) for macro cell and DAS deployments.
Typical Application Scenarios
Multi-Carrier Cellular Sites: Combines 2G/3G/4G/5G signals from different operators on shared towers, leveraging ultra-wide bandwidth and low PIM (-150 to -160dBc options).
Outdoor Small Cell Networks: Deployed in urban infrastructure with IP65-rated resilience (-35°C to +65°C), handling high traffic loads in compact form (272x110x66mm).
Public Safety Comms: Ensures reliable signal aggregation for emergency response systems in harsh environments, using robust 7-16 or 4.3-10 twist-lock connectors.
Technical Features
Frequency-Optimized Performance: Delivers stable 6.1dB insertion loss with tight tolerance (±1.5-1.8dB) and isolation ≥23-25dB across sub-bands (340-698/698-2700/2700-3800MHz).
Scalable Power Architecture: Three connector variants with graded power handling:
N Female: 300W cont./800W peak
4.3-10 Female: 300W cont./1500W peak
7-16 Female: 500W cont./2000W peak
Ruggedized Deployment Ready: Features IP65 environmental protection, lightweight design (2.3-2.8kg), and wall-mount capability. Low VSWR (≤1.25:1) ensures minimal signal reflection.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-35 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65 (Indoor and Outdoor) |
