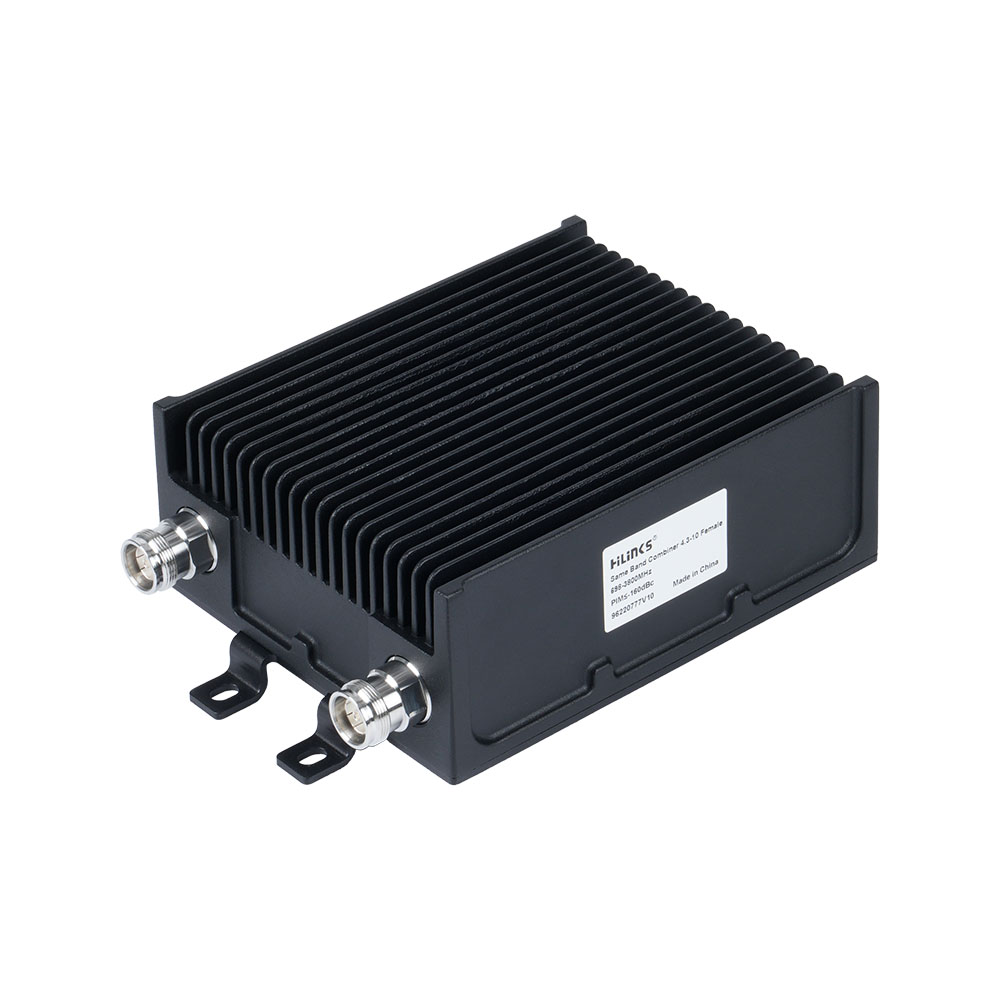

Wideband 698-3800MHz Same Band Combiner 962207XXV10
| Electrical specifications | ||||||
| Type No. | Intermodulati en(3rd order, dBe) |
≤-150@2x43dB m |
96220763V10 | 96220773V10 | 96220783V10 | |
| ≤-155@2x43dB m |
96220765V10 | 96220775V10 | 96220785V10 | |||
| ≤-160@2x43dB m |
96220767V10 | 96220777V10 | 96220787V10 | |||
| Frequency Range(MHz) | 698-3800 | |||||
| Insertion Loss(dB) | 3.1±0.6 | |||||
| Isolation(dB) | ≥23 | |||||
| VSWR(dB) | <1.25 | |||||
| DC/AISG By Pass | Port1～Port3 Pass,Port2～Port3 Stop | |||||
| Input Power(W) | <100@IN Ports | |||||
| Impedance(2) | 50 | |||||
| Mechanical specifications | ||||||

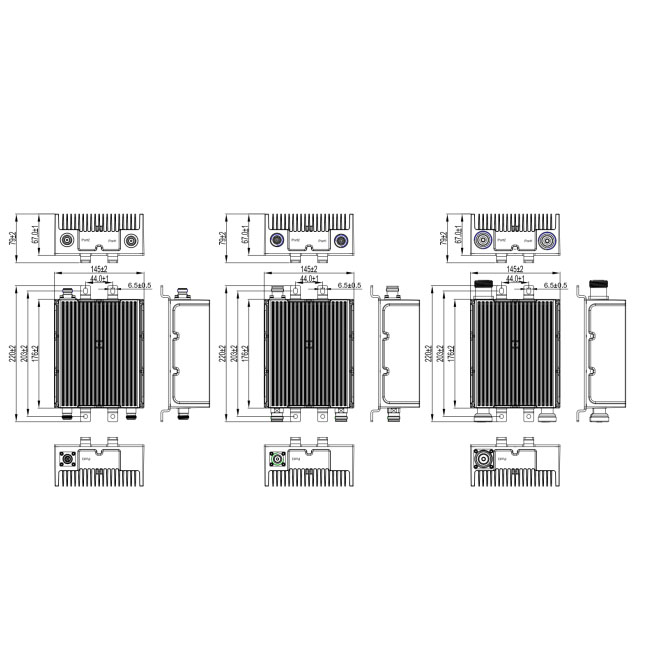

| Dimensions,HxWxD(excluding connectors and mounting bracket)(mm) |
176x145x67 | |||||
| Weight(including connectors and mounting bracket)(kq) |
2.5 | 2.5 | 2.6 | |||
| Connector Type | N Female | 4.3-10 Female | 7-16 Female | |||
| Packing Size(mm) | 280x215x145 | |||||
| Color | Light Gray (Customizable) | |||||
| Mounting | Wall Mounted | |||||
1. Main Functions
• Combines RF signals across 698-3800MHz bands with DC/AISG bypass support.
• Splits RF paths while blocking DC/AISG between Port2 and Port3.
• Ensures high-power transmission (≤100W) with minimal signal interference
2. Typical Application Scenarios
• Co-locating multi-frequency systems at BTS or antenna sites.
• Indoor/outdoor deployments requiring IP65-rated environmental protection.
• Dense urban infrastructure needing low PIM (-160dBc) performance.
3. Technical Features
• Ultra-low PIM (-160dBc) and insertion loss (3.1dB±0.6).
• Triple connector options (N, 4.3-10, DIN) and wall-mountable design.
• Wide temperature range (-35°C to +65°C) with 50Ω impedance.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-35 to +65 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
IP65(Indoor and Outdoor) |
|
Accessories (order separately) |
|
|
Type No. |
Description |
|
50801.5519050 |
Hose clamp |
