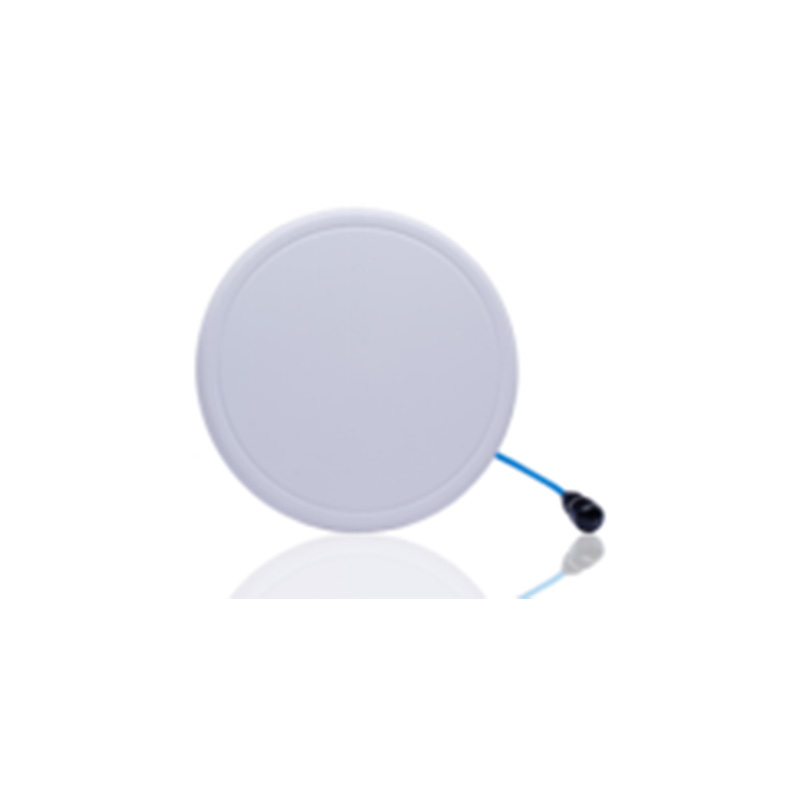

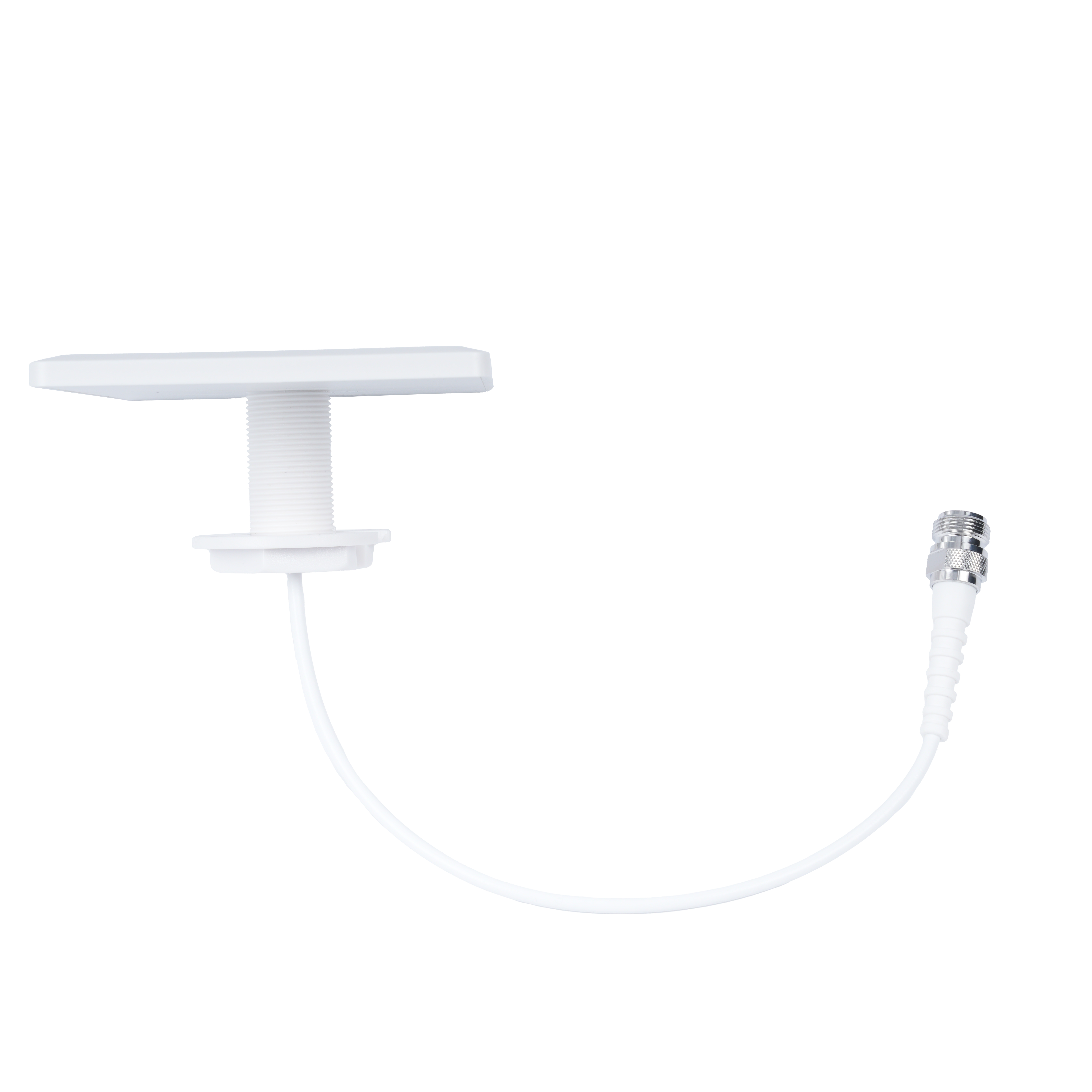

Wideband Indoor Omni Antenna 600-6000MHz 970118XX
|
Electrical Specifications |
|||||||
|
Type No. |
N Female |
97011860 |
97011863 |
97011865 |
|||
|
4.3-10 Female |
97011870 |
97011873 |
97011875 |
||||
|
PIM,3rd Order,2×20W (dBc) |
≤-140 |
≤-150 |
≤-153 |
||||
|
Frequency Band, MHz |
600-617 |
617-960 |
1710-2170 |
2170-2700 |
3300-4000 |
4900-6000 |
|
|
Gain, dBi |
2.0 |
2.5 |
4.0 |
5.0 |
4.0 |
5.5 |
|
|
VSWR |
≤2.5 |
≤2.0 |
≤1.8 |
≤1.8 |
≤1.8 |
≤1.8 |
|
|
Polarization |
Horizontal |
||||||
|
Horizontal Beam width |
360° |
||||||
|
Vertical Beam width |
120° |
116° |
78° |
70° |
65° |
30° |
|
|
Input Impedance, ohms (Ω) |
50 |
||||||
|
Input Power (W) |
50 |
||||||
|
Lightning protection |
DC Ground |
||||||
|
Mechanical Specifications |
|
|
Size (mm) |
Ø190x7.6 |
|
Weight (kg) |
0.2 |
|
Radome Material, Color |
ABS (UV Stabilized), White, RAL 9003 |
|
Reflector material |
RF-PCB |
Main Functions
The 970118XX series antenna is designed to provide omnidirectional horizontal coverage with a consistent 360° beamwidth, ensuring reliable signal reception and transmission across a wide area. It supports multiple frequency bands from 600MHz to 6000MHz, making it versatile for various wireless communication systems. Additionally, the antenna features DC grounding for lightning protection, enhancing durability and safety in diverse operational environments.
Typical Application Scenarios
This antenna is ideal for indoor distributed antenna systems (DAS) in large venues such as airports, shopping malls, and convention centers, where uniform signal distribution is critical. It is also well-suited for use in office buildings and hotels to enhance mobile network coverage, including 4G LTE and 5G NR bands. Furthermore, it can be deployed in industrial IoT environments for reliable machine-to-machine (M2M) communication and private network applications.
Technical Features
The antenna offers a gain range of 2.0–5.5dBi, varying by frequency band, with optimized performance in key ranges such as 617–960MHz and 4900–6000MHz. It maintains a low VSWR (≤2.5, typically ≤1.8 in higher bands) and excellent passive intermodulation (PIM) performance, as low as -153dBc, ensuring high signal integrity. With a compact design (Ø190×7.6mm), lightweight construction (0.2kg), and UV-stabilized ABS radome, it is both easy to install and durable for long-term indoor use in temperatures ranging from -40°C to +65°C.
|
Environmental Specifications |
|
|
Operational Temperature (°C) |
-40°C to +65°C |
|
Operational Humidity (%) |
≤95 |
|

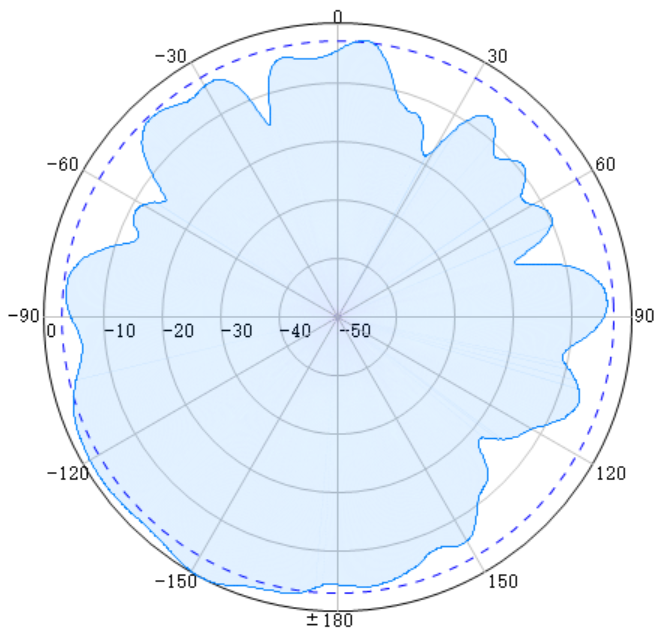

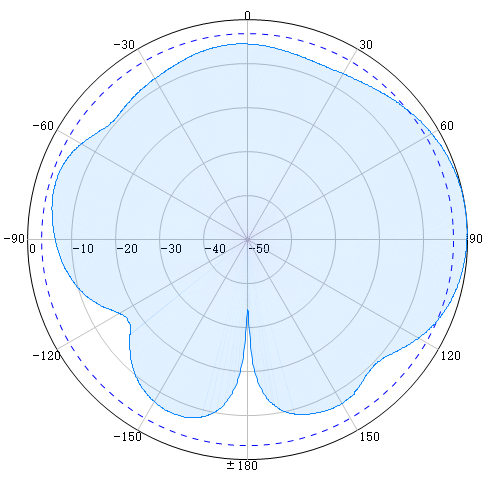

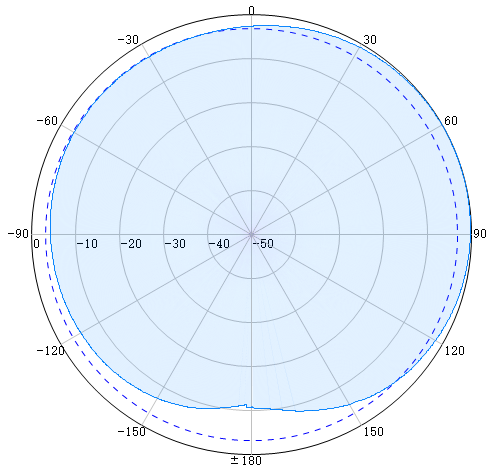

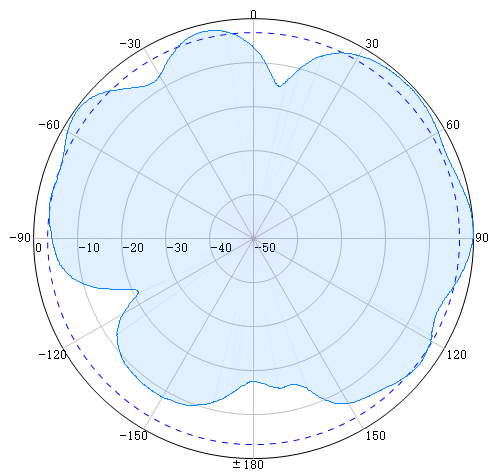

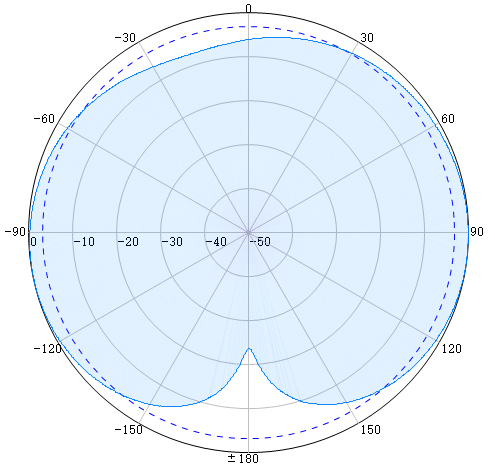

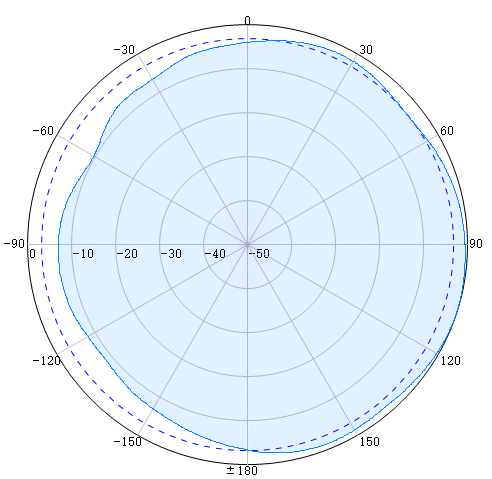

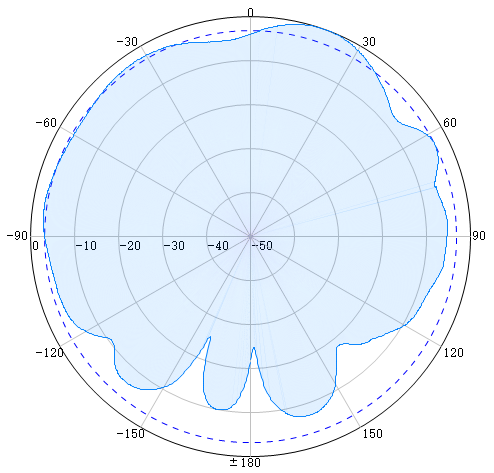

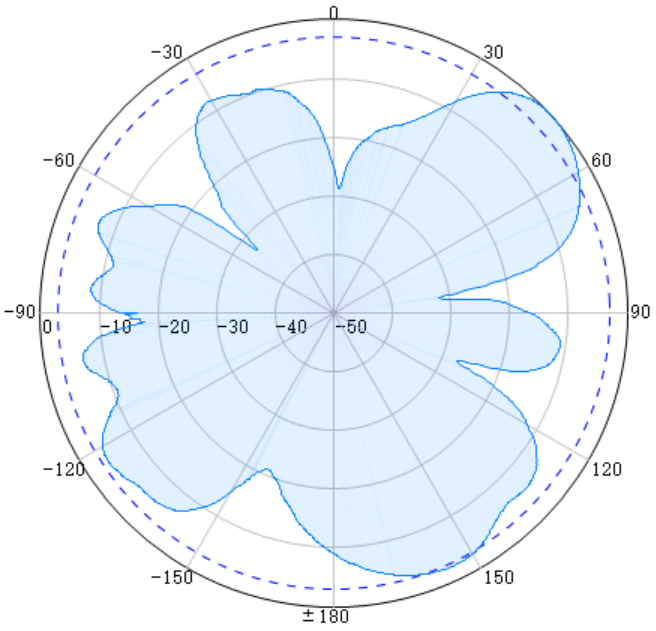

Radiation Patterns |
||||
|
|
750MHz |
2170MHz |
3800MHz |
5850MHz |
|
Horizontal |
|
|
|
|
|
Vertical |
|
|
|
|
